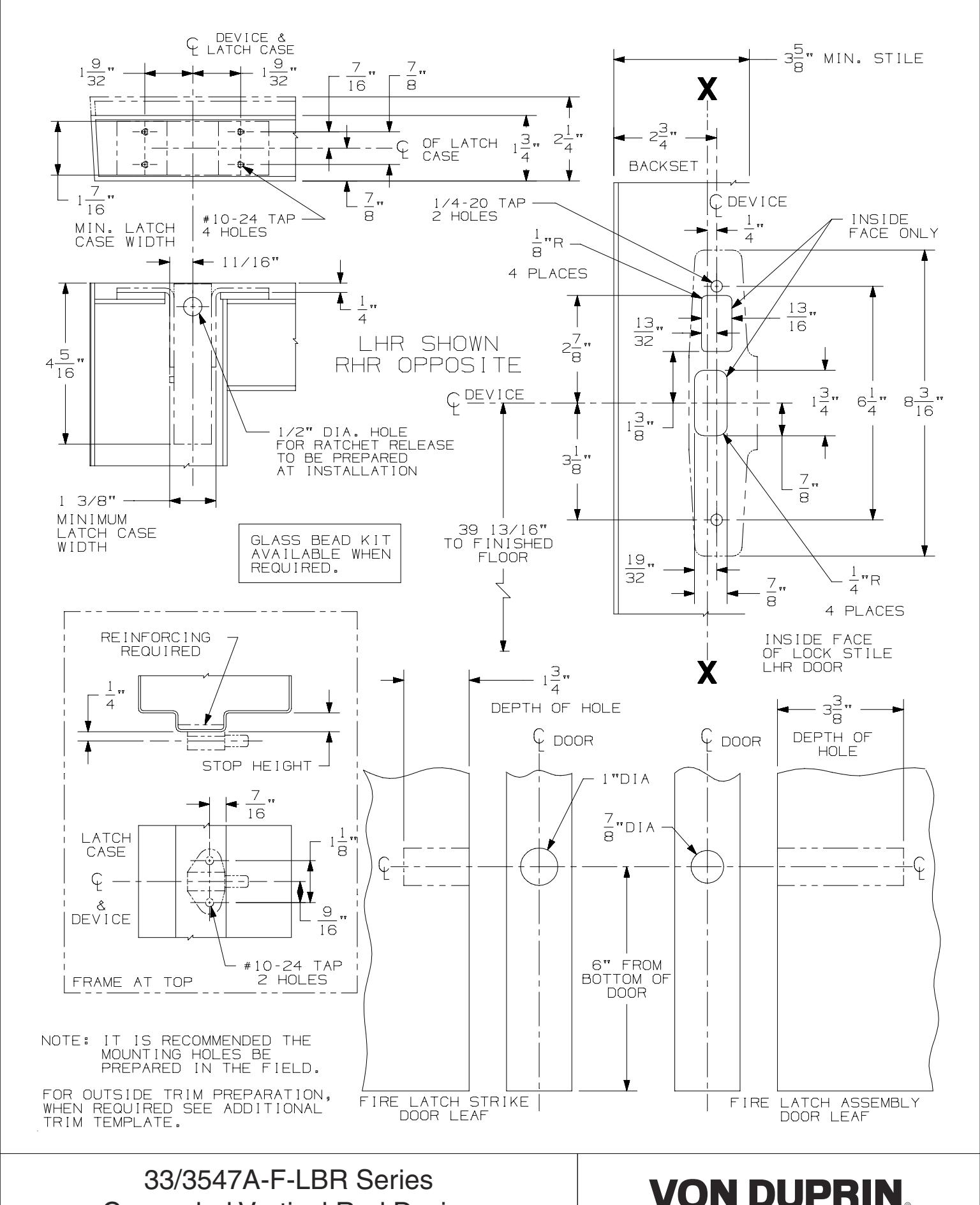

Von Duprin 3347A-F & 3547A-F Concealed Vertical Rod Fire Less Bottom Rod Series Metal Door Template
Open the original PDF document
View PDF
Concealed Vertical Rod Device
VON DUPRIN
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
10058_a
DATE: 05-15-13
