Von Duprin 3327A-F-LBR, 3527A-F-LBR Concealed Vertical Rod Less Bottom Rod Series Metal Door Template
Open the original PDF document
View PDF

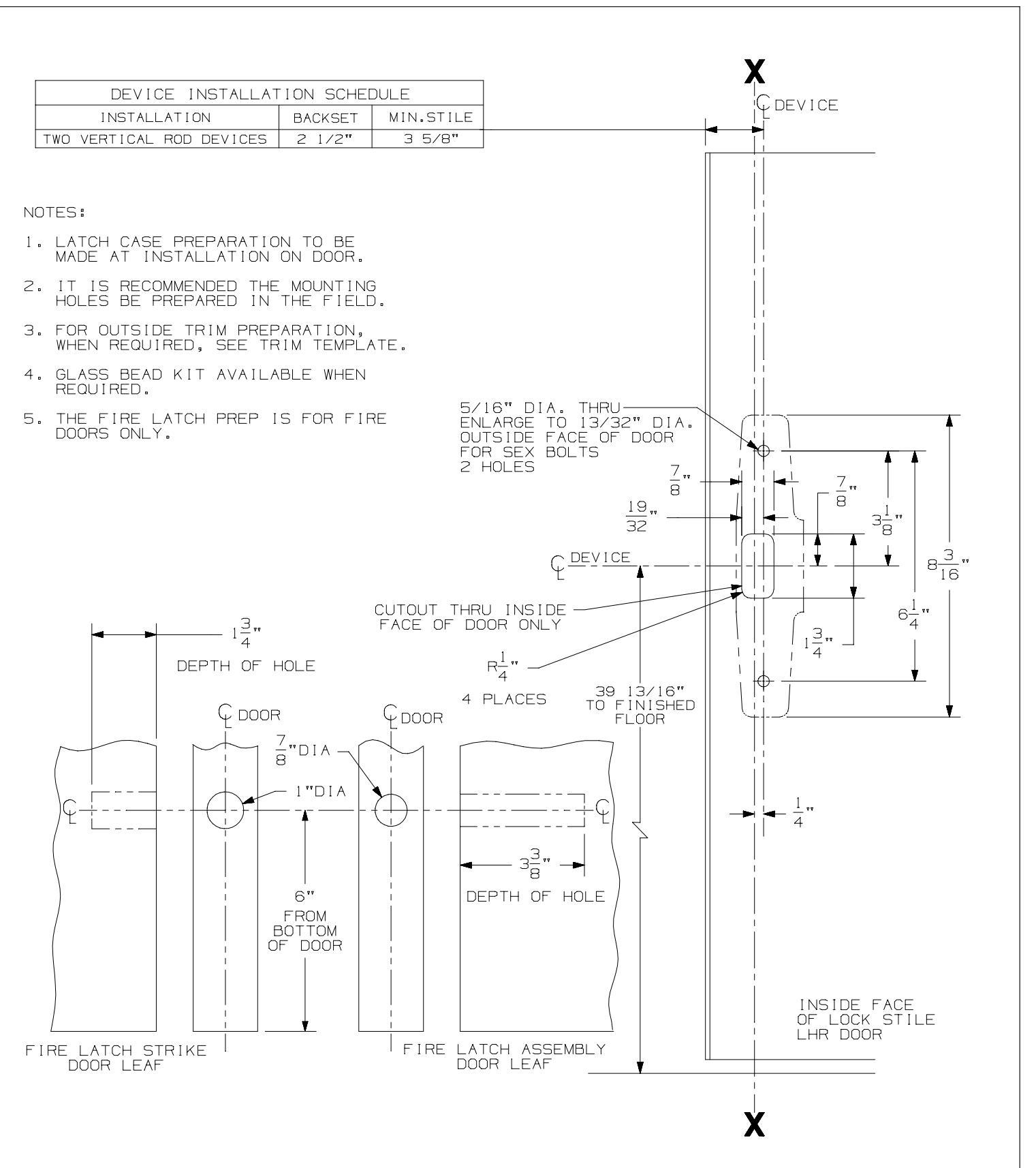

LHR SHOWN RHR OPPOSITE
33/3527A-F-LBR Series Concealed Vertical Rod Device
VON DUPRIN ®
TEMPLATE NUMBER:
10050_b
DATE: 03-26-14
