Von Duprin 304L Strike For Use With 2227 and 2227-F Series Exit Device Template

Open the original PDF document

View PDF

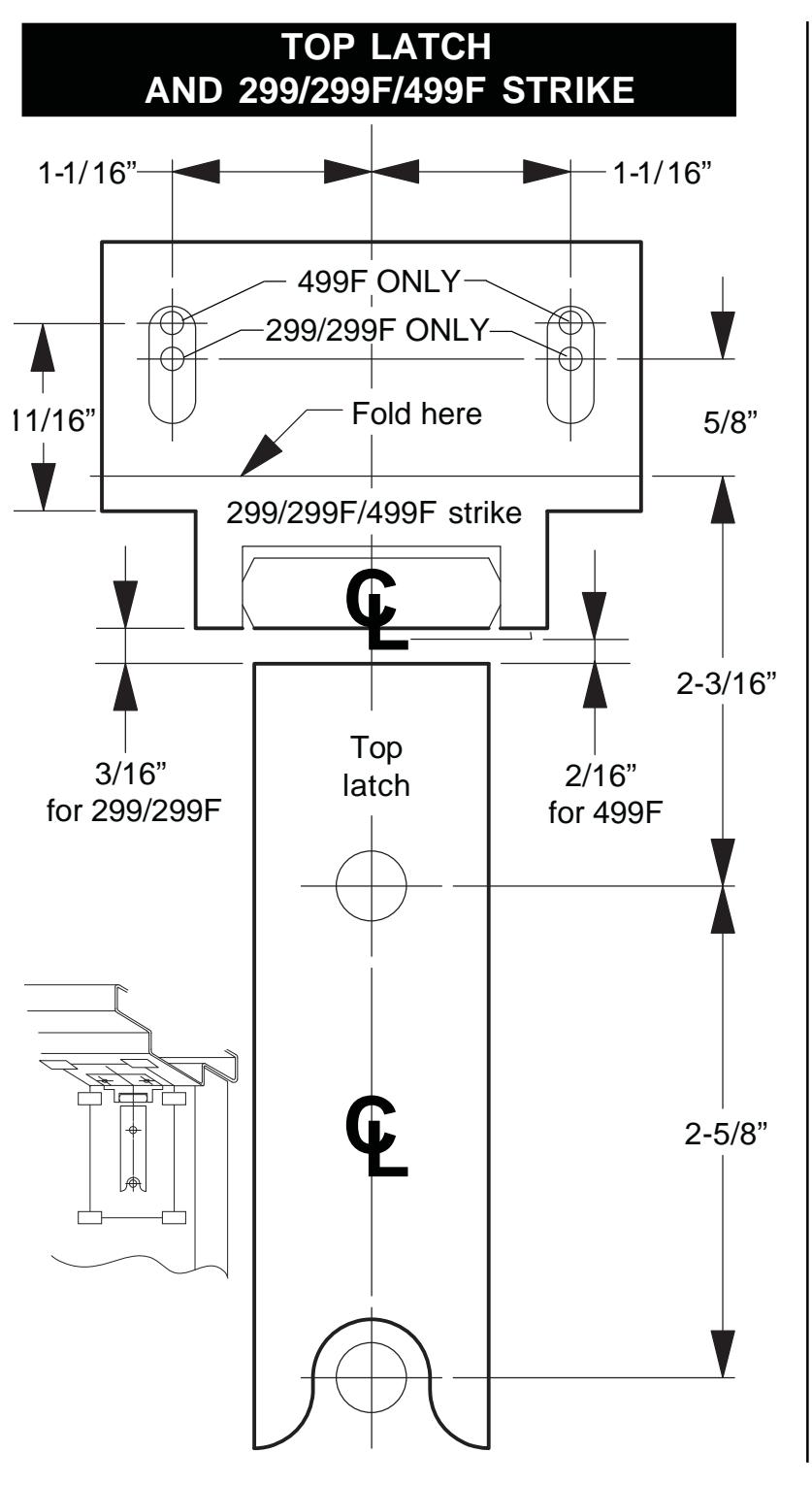

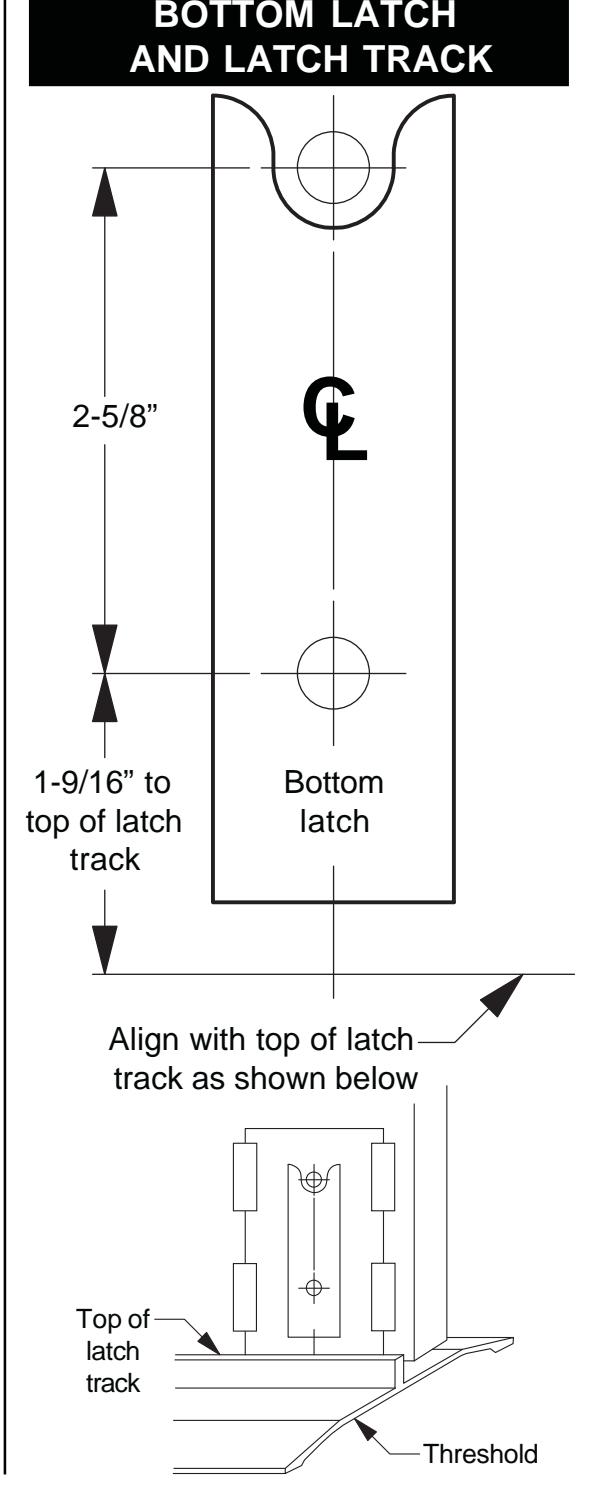

98/9927 AND 98/9957LATCH AND STRIKE TEMPLATES

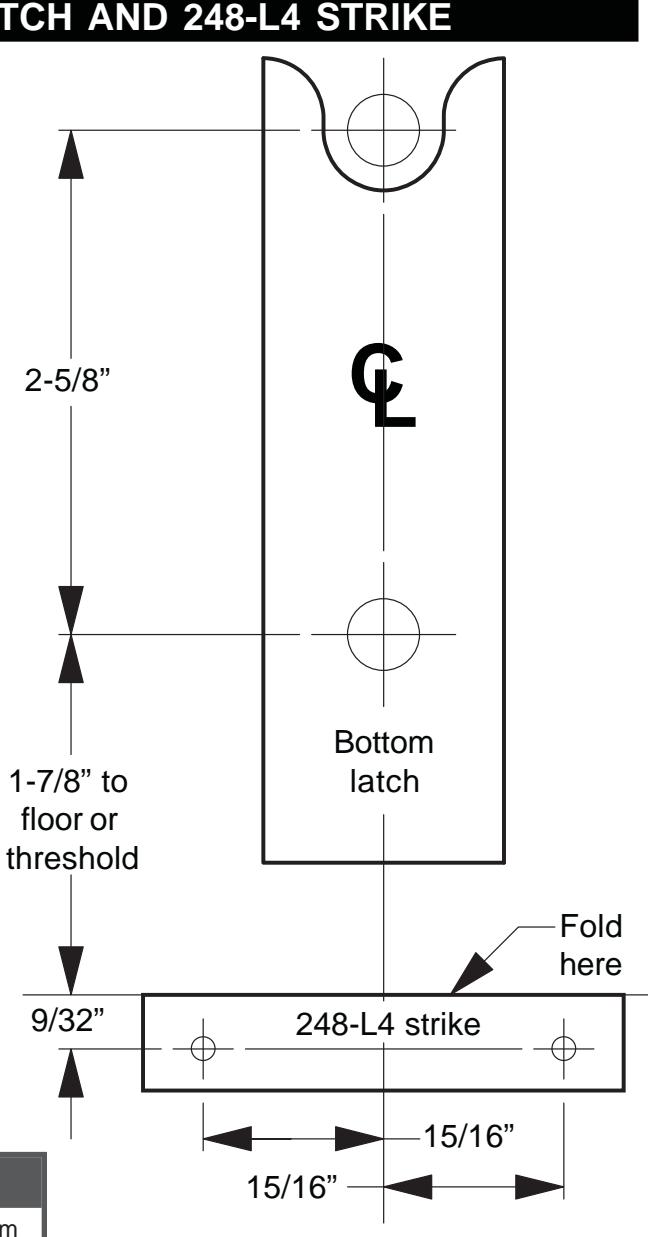

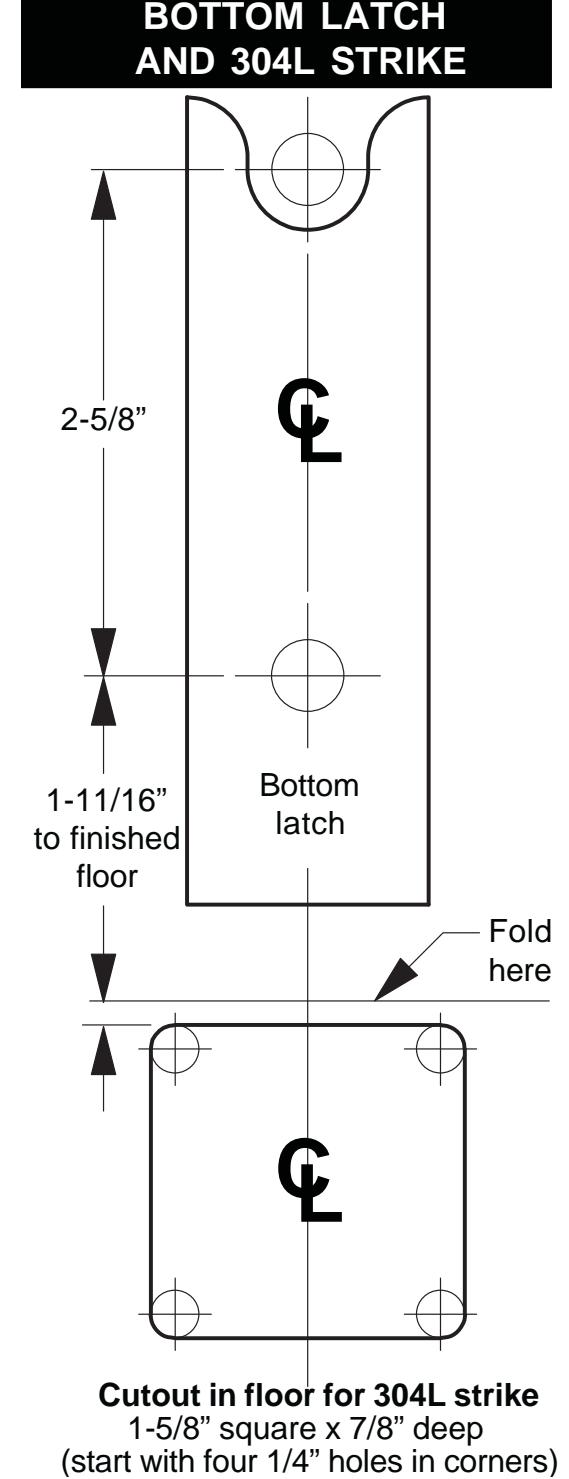

BOTTOM LATCH AND 248-L4 STRIKE

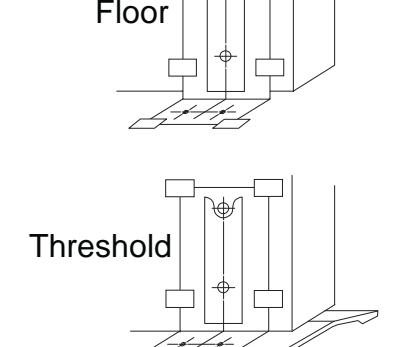

For threshold application, remove roll pin and fitting, cut bottom rod, reinstall fitting and roll pin in second hole

911379-00

Customer Service

1-877-671-7011 www.allegion.com

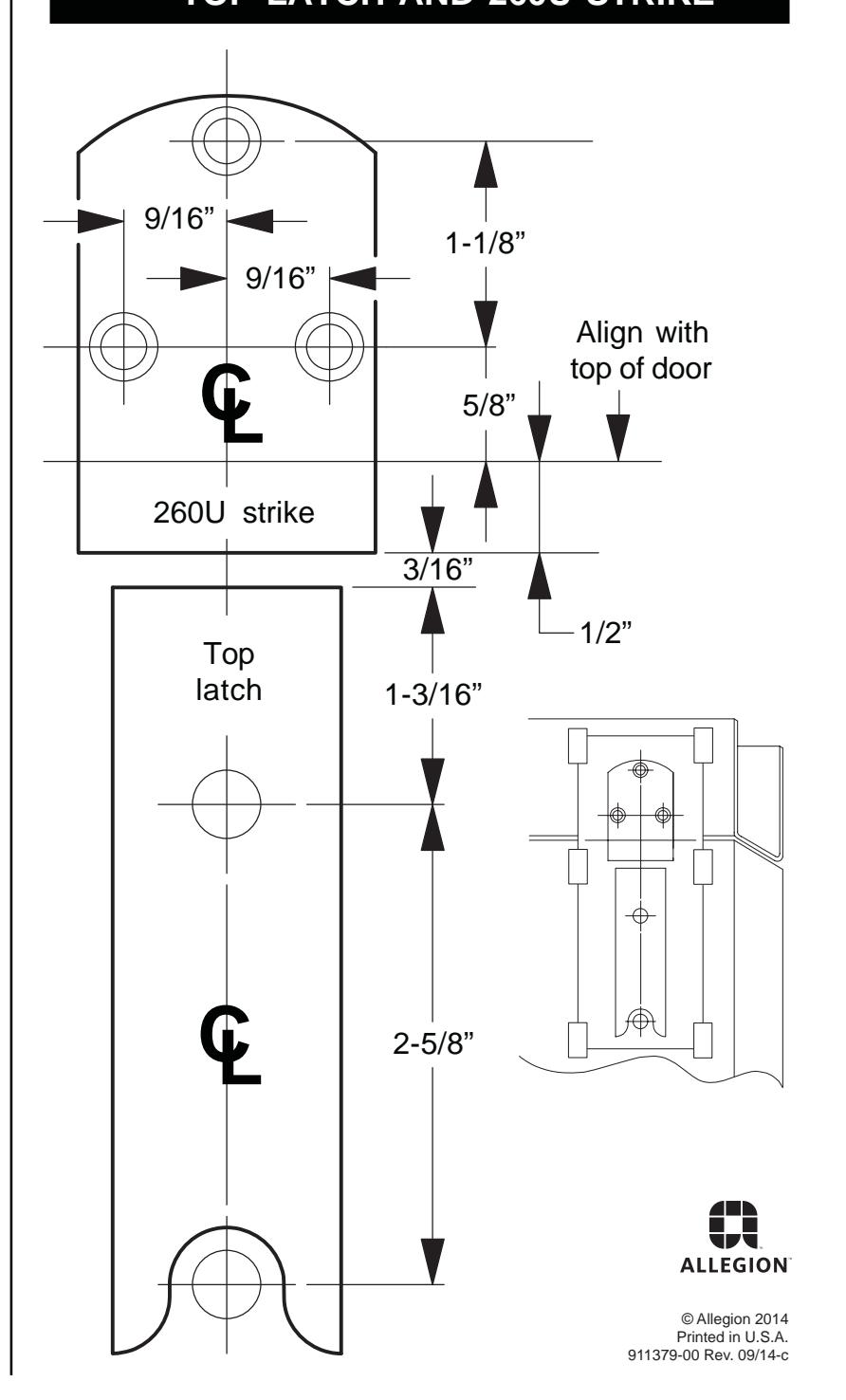

TOP LATCH AND 260U STRIKE
