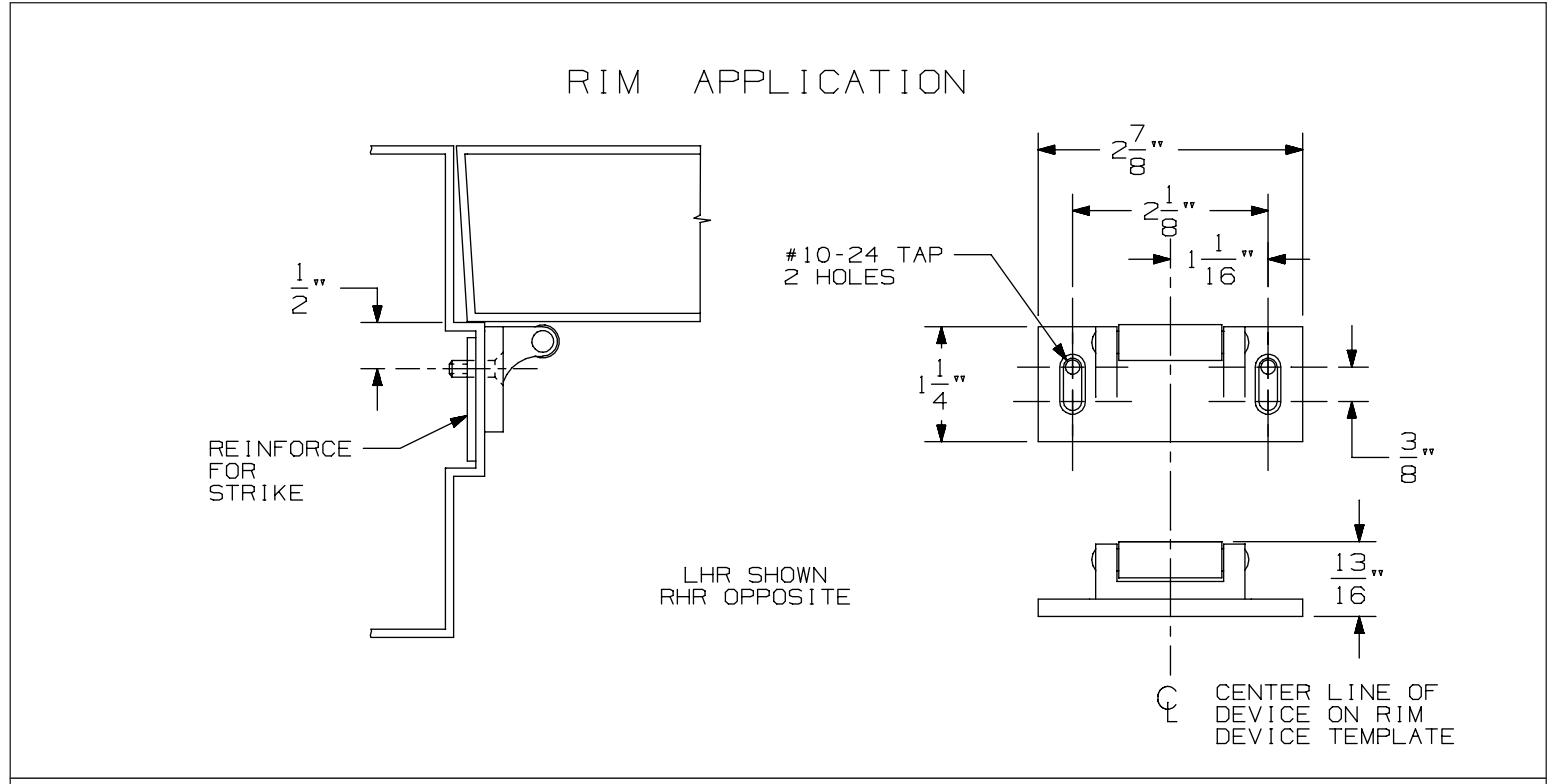

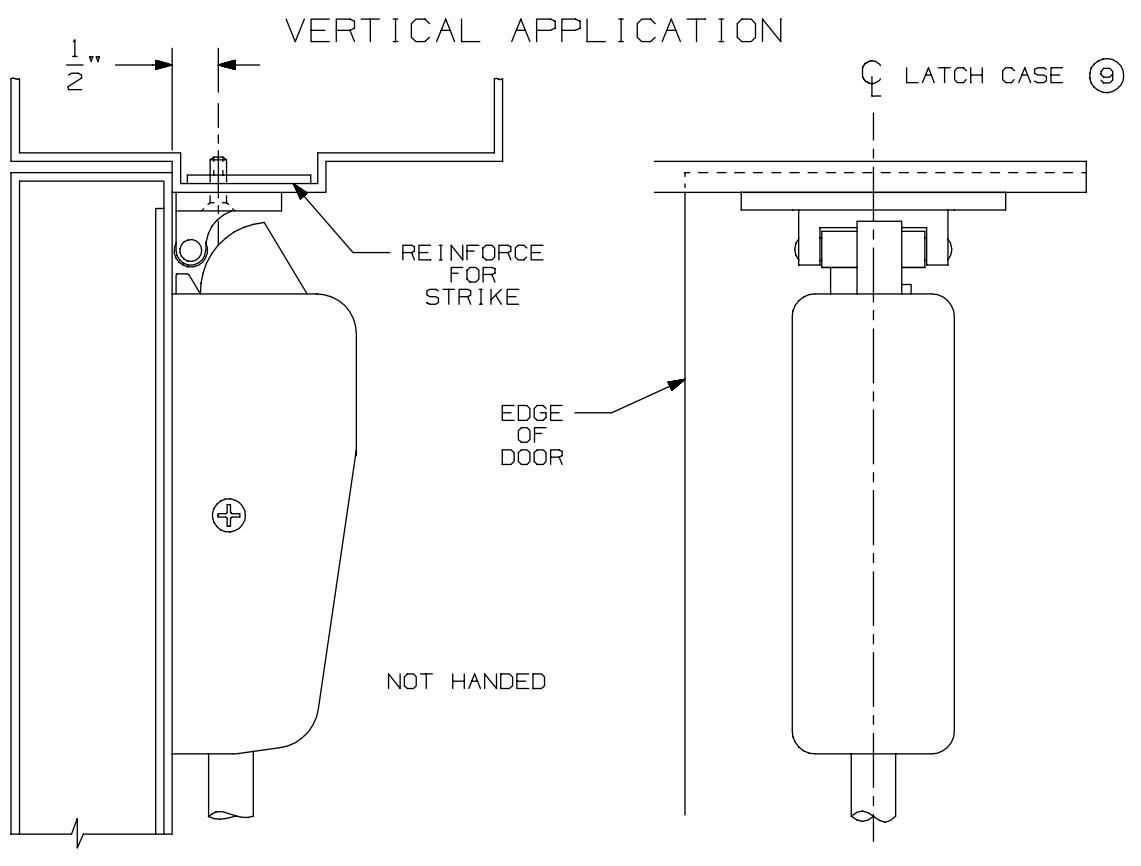

Von Duprin 299 Strike Used with 88 Rim, E88 Rim, 8827 For Metal Applications Template
Open the original PDF document
View PDF
NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.
299 & 299F Strike VON DUPRIN<sub>®</sub>
NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING
TEMPLATE NUMBER:
30039_a
DATE: 05-23-13
