Von Duprin 299 Strike For Use With 22 and 2227 Series Exit Device Template

Open the original PDF document

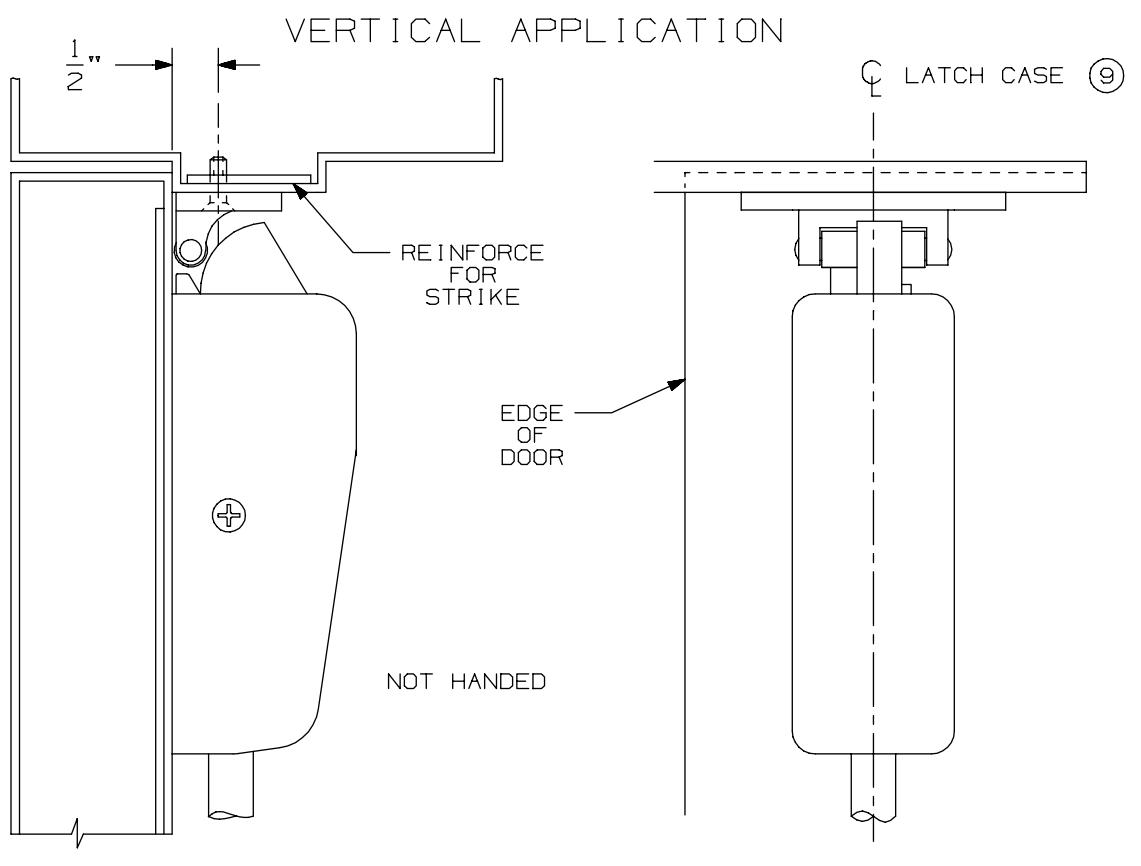

NOTE: LATCH CASE MOUNTING HOLES TO BE PREPARED AT INSTALLATION ON DOOR.

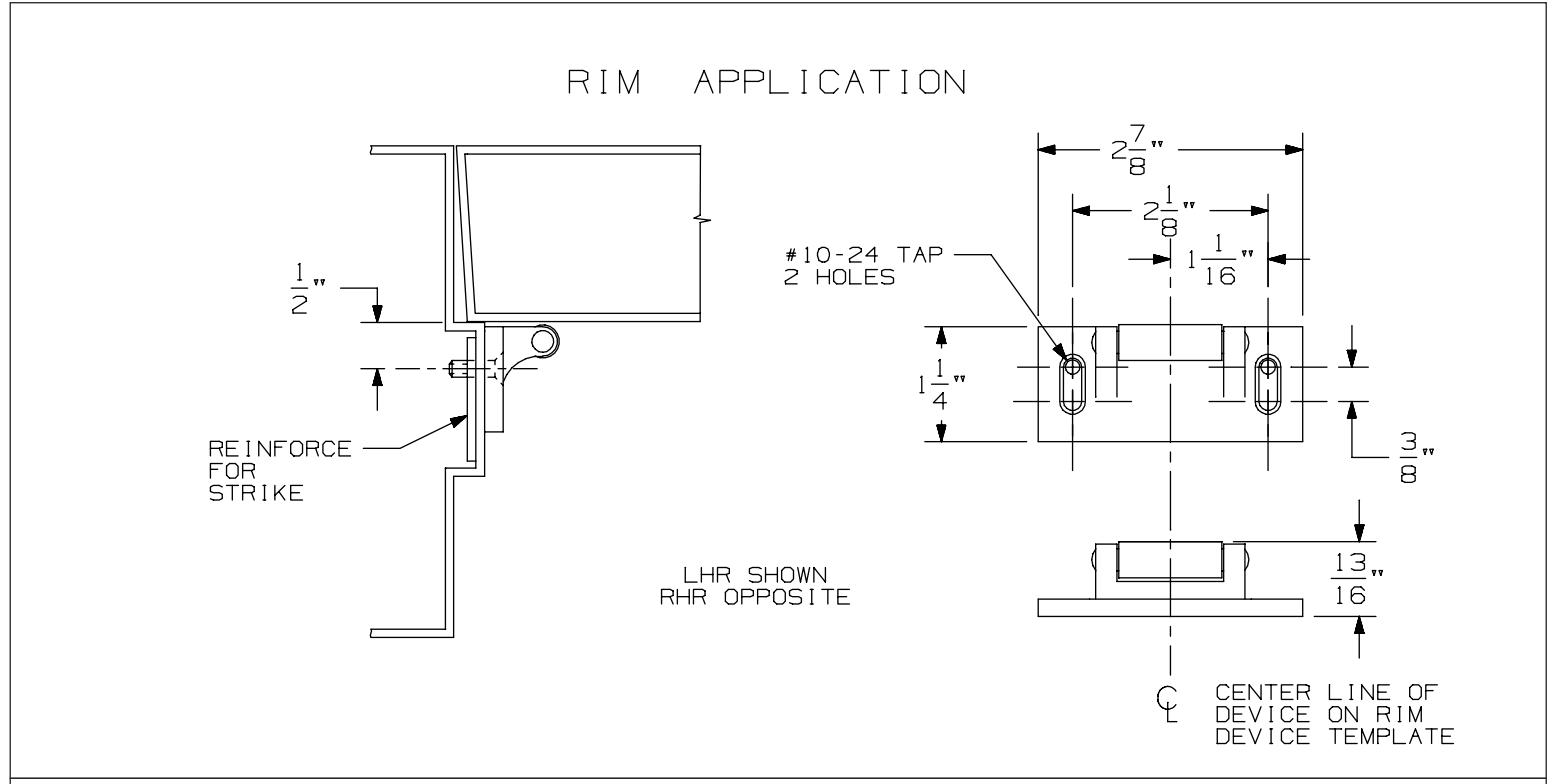

299 & 299F Strike VON DUPRIN<sub>®</sub>

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

30039_a

DATE: 05-23-13
