Von Duprin 268 Strike Used with e 88-F Rim, E88-F Rim For Metal Applications Template
Open the original PDF document
View PDF

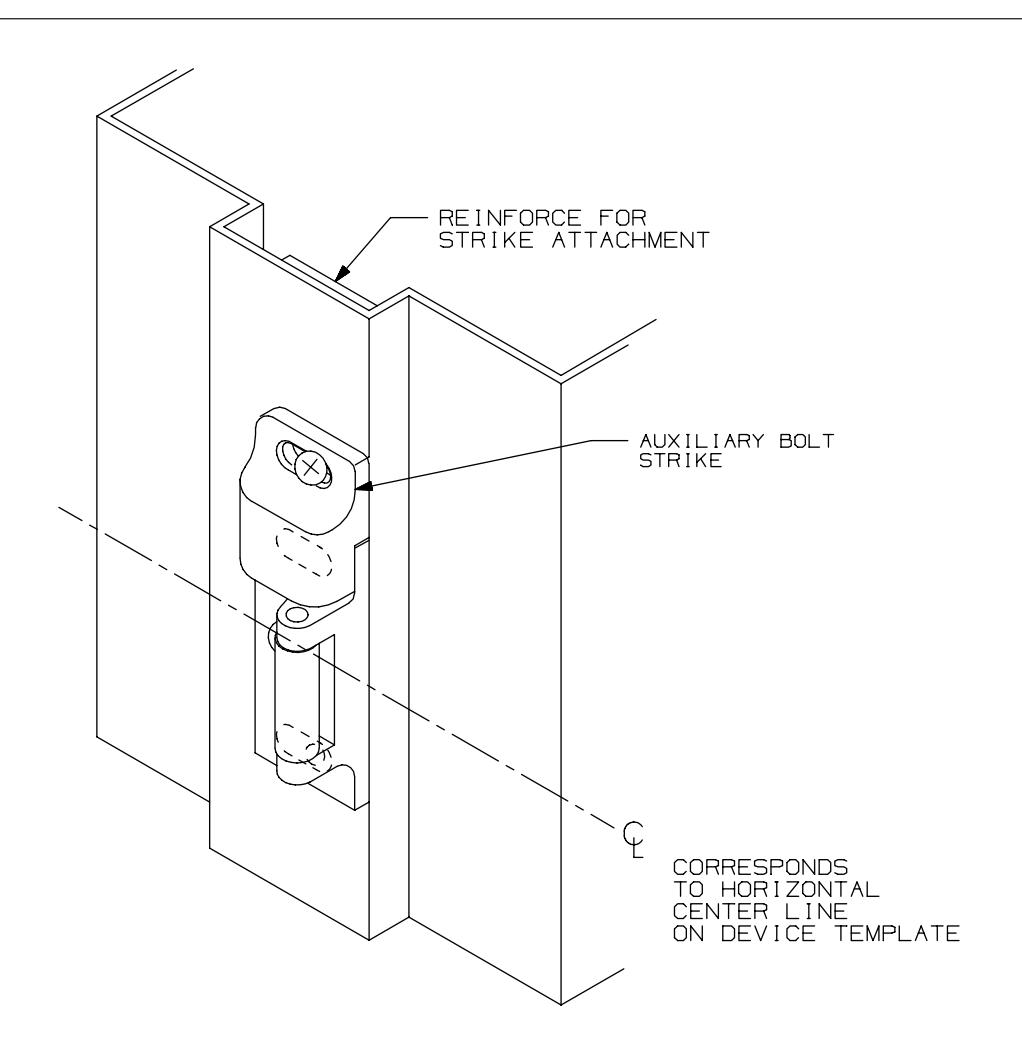

NOTE: AUXILARY BOLT STRIKE ALWAYS ABOVE STRIKE ROLLER

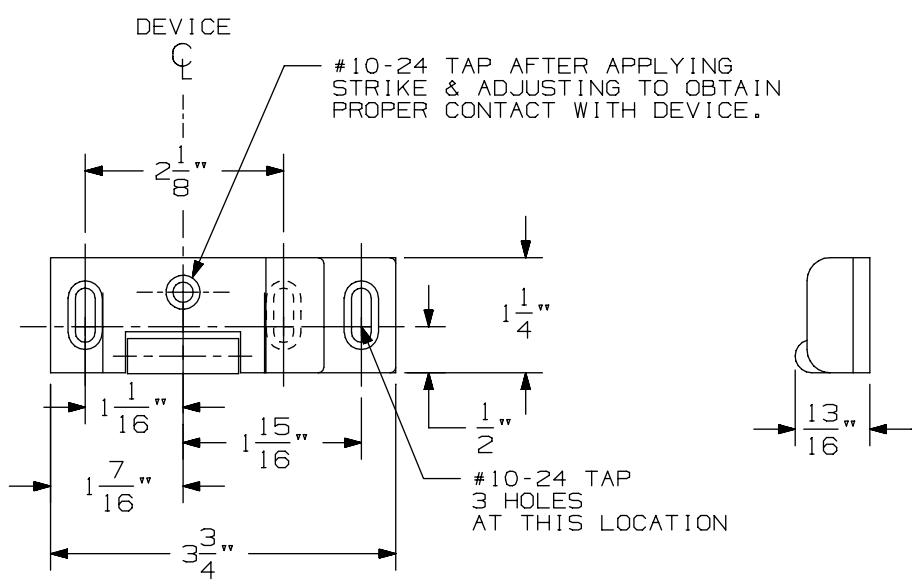

268 Rim Strike
VON DUPRIN ®
TEMPLATE NUMBER:
30011_a
DATE: 05-23-13
