Von Duprin 1609 Strike For 98 and 99 Series Exit Device Metal Door Template
Open the original PDF document
View PDF

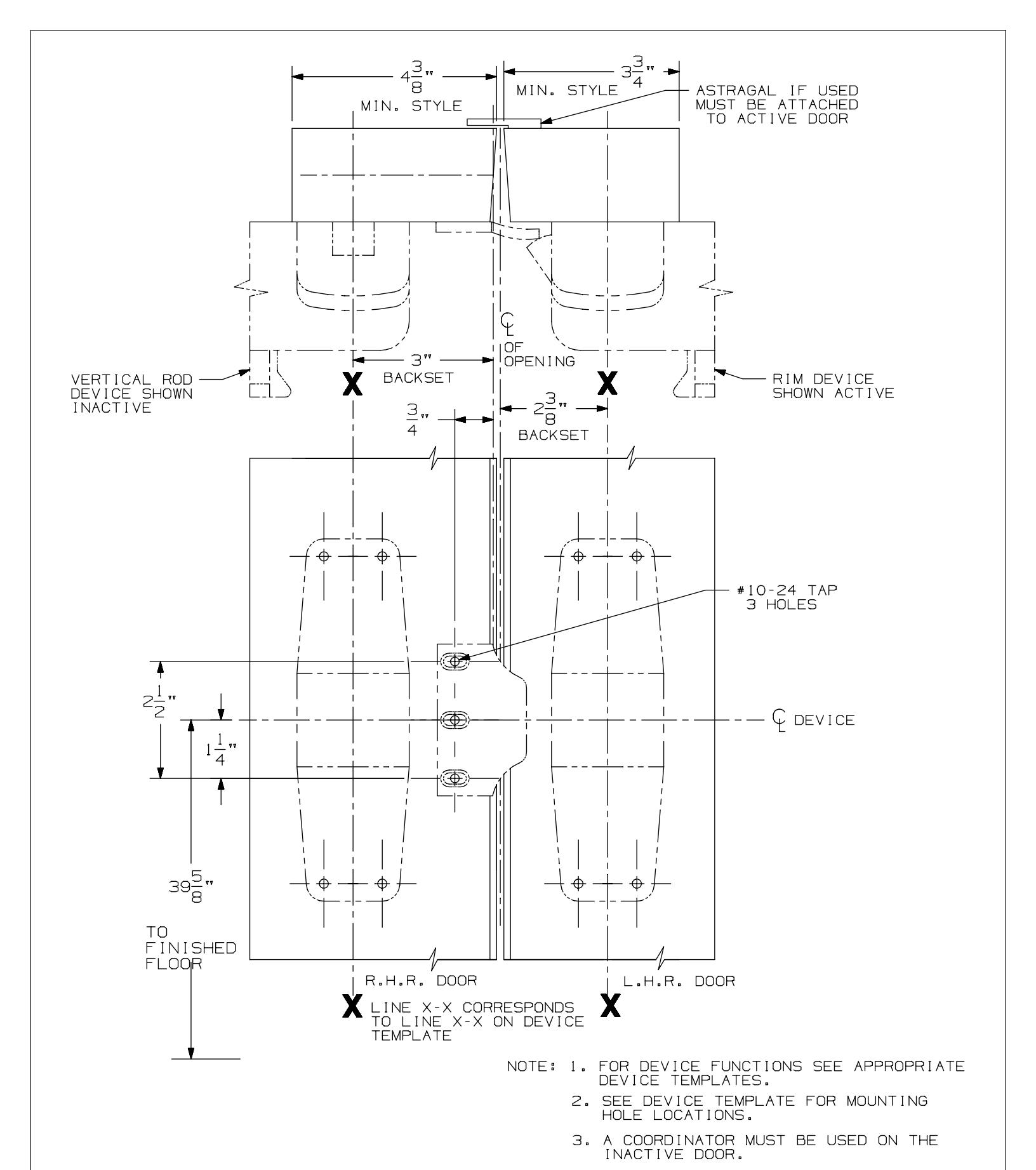

1609 Strike Application for 98/99 Vertical Rod & 98/99 Rim Devices (Panic Device Only)
VON DUPRIN ®
TEMPLATE NUMBER:
30229_a
DATE: 05-28-13
