Von Duprin 110NL Cylinder Preparation for Hollow Metal Door Template

Open the original PDF document

View PDF

22 RIM SERIES

2227 SERIES

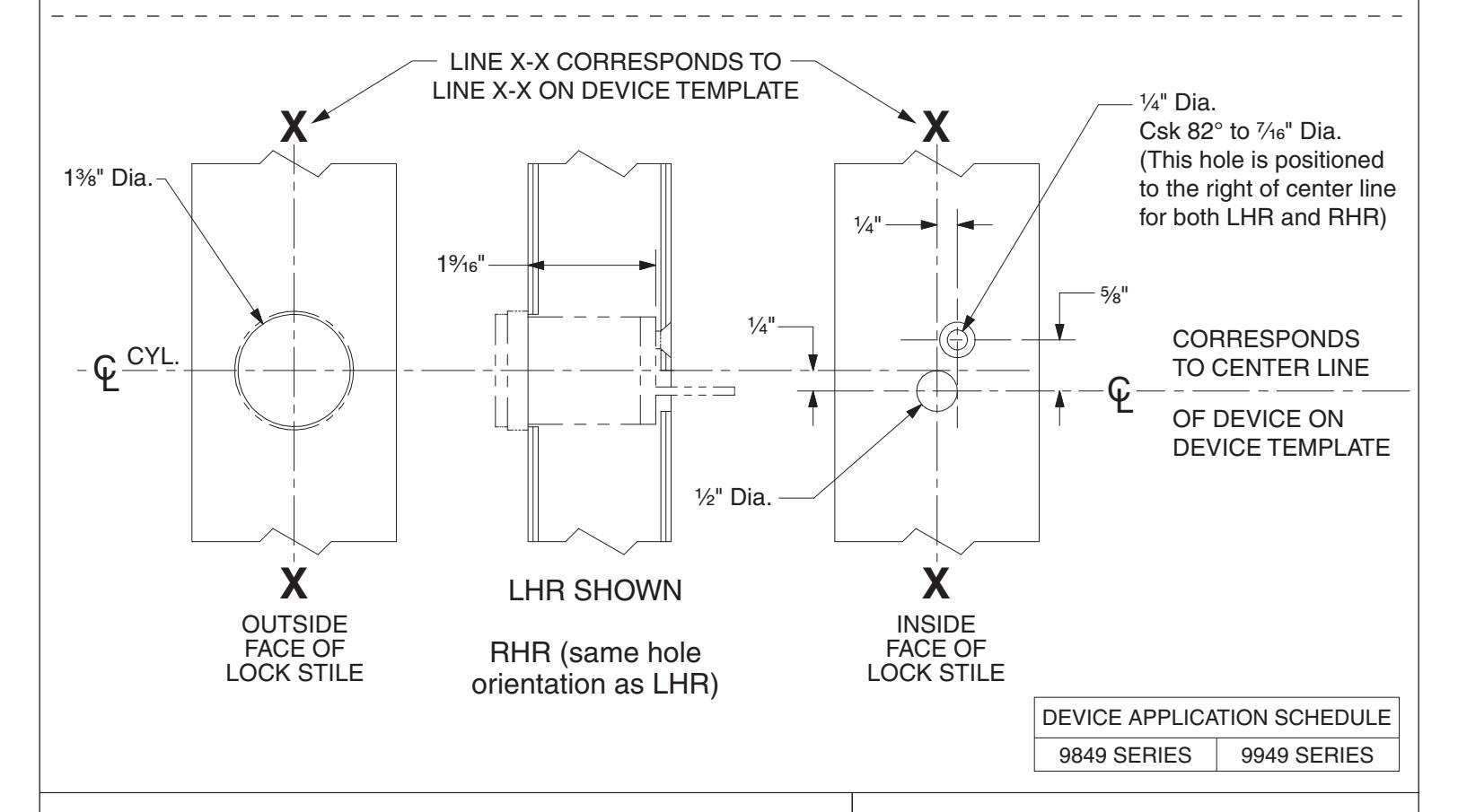

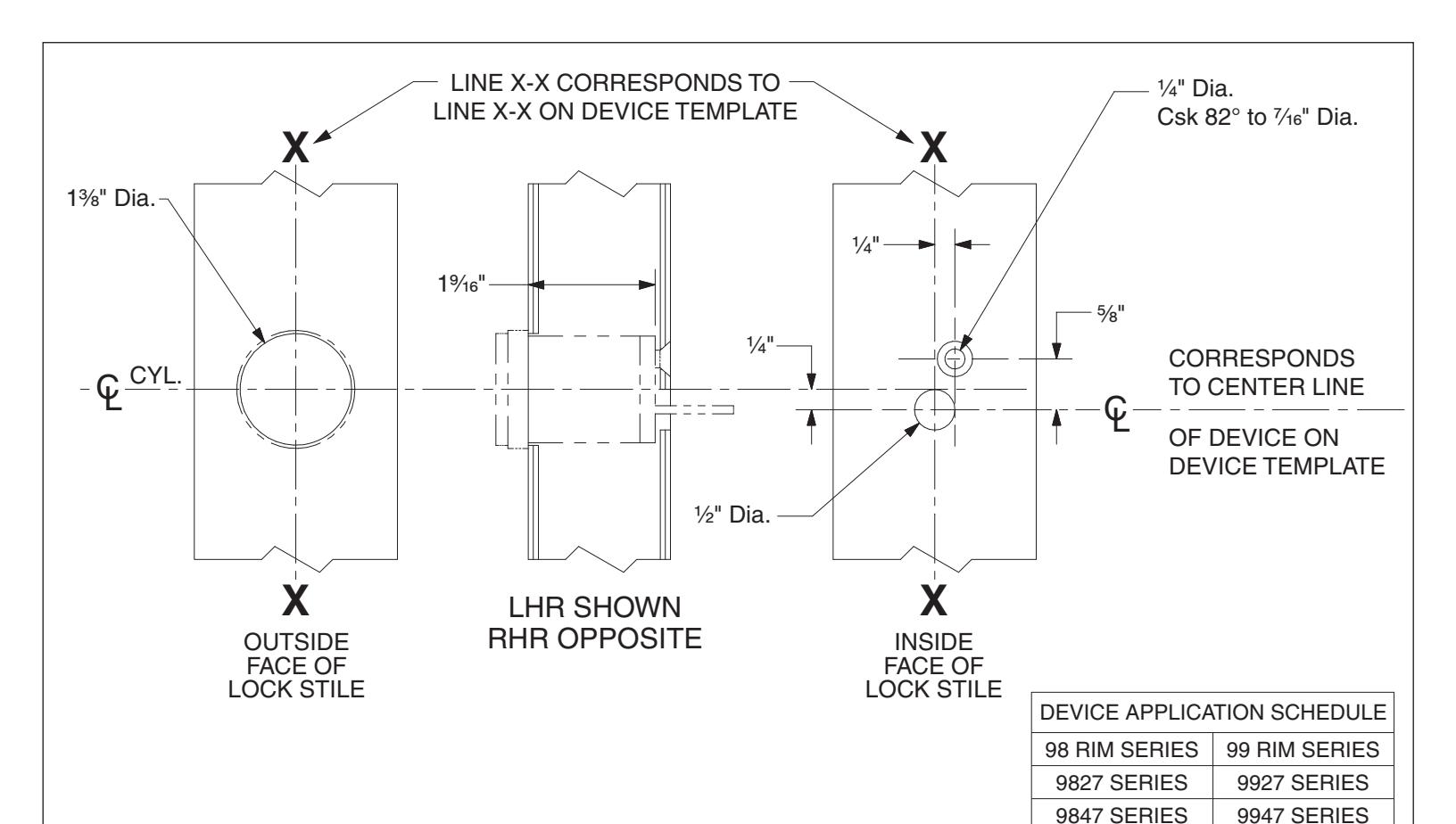

110NL Cylinder Preparation VON DUPRIN NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING TEMPLATE NUMBER: 40022_C DATE: 05-28-13
