Von Duprin 110NL Cylinder Assembly For 98 and 99 Series Exit Device Metal Door Template

Open the original PDF document

View PDF

22 RIM SERIES

2227 SERIES

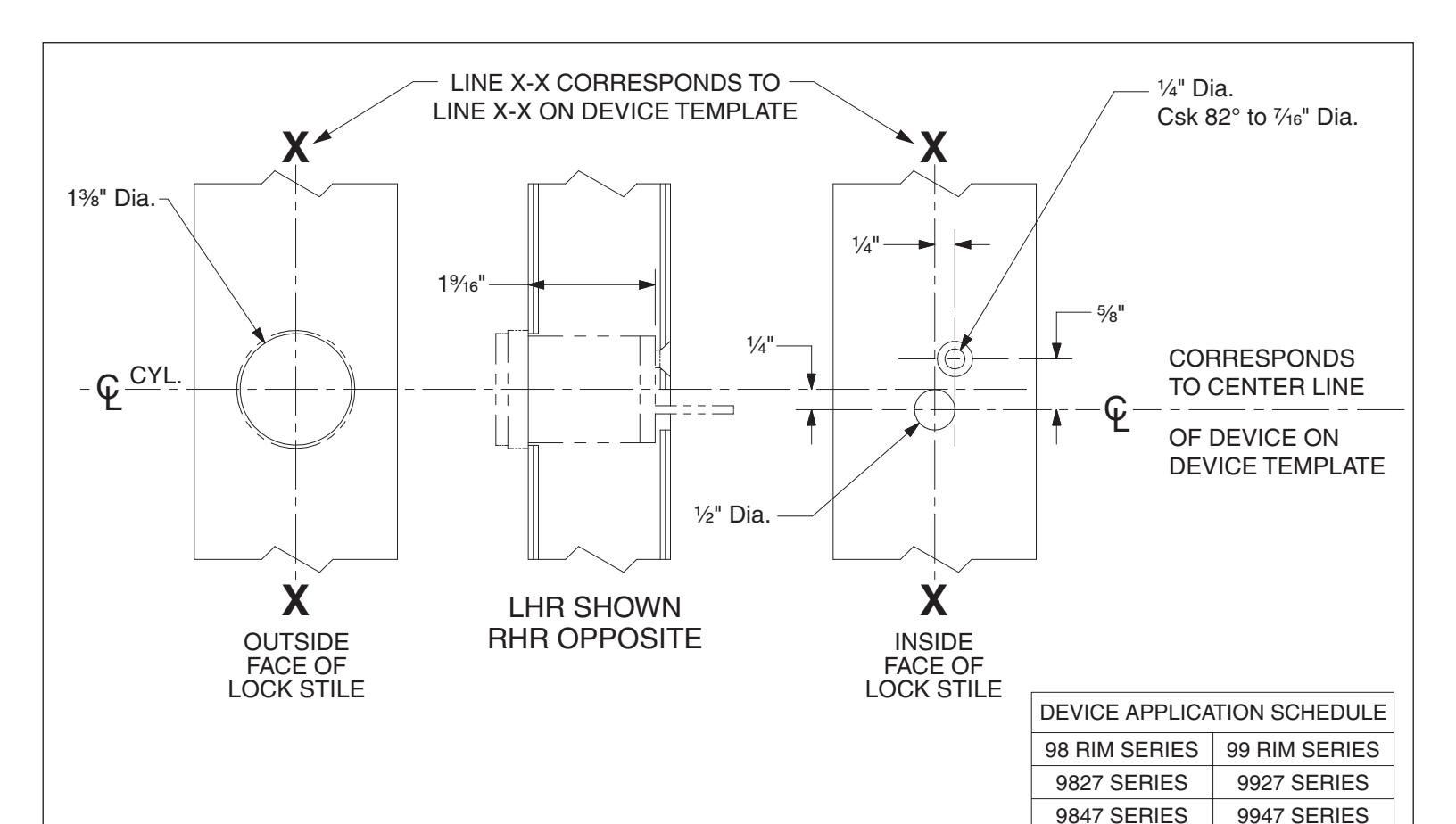

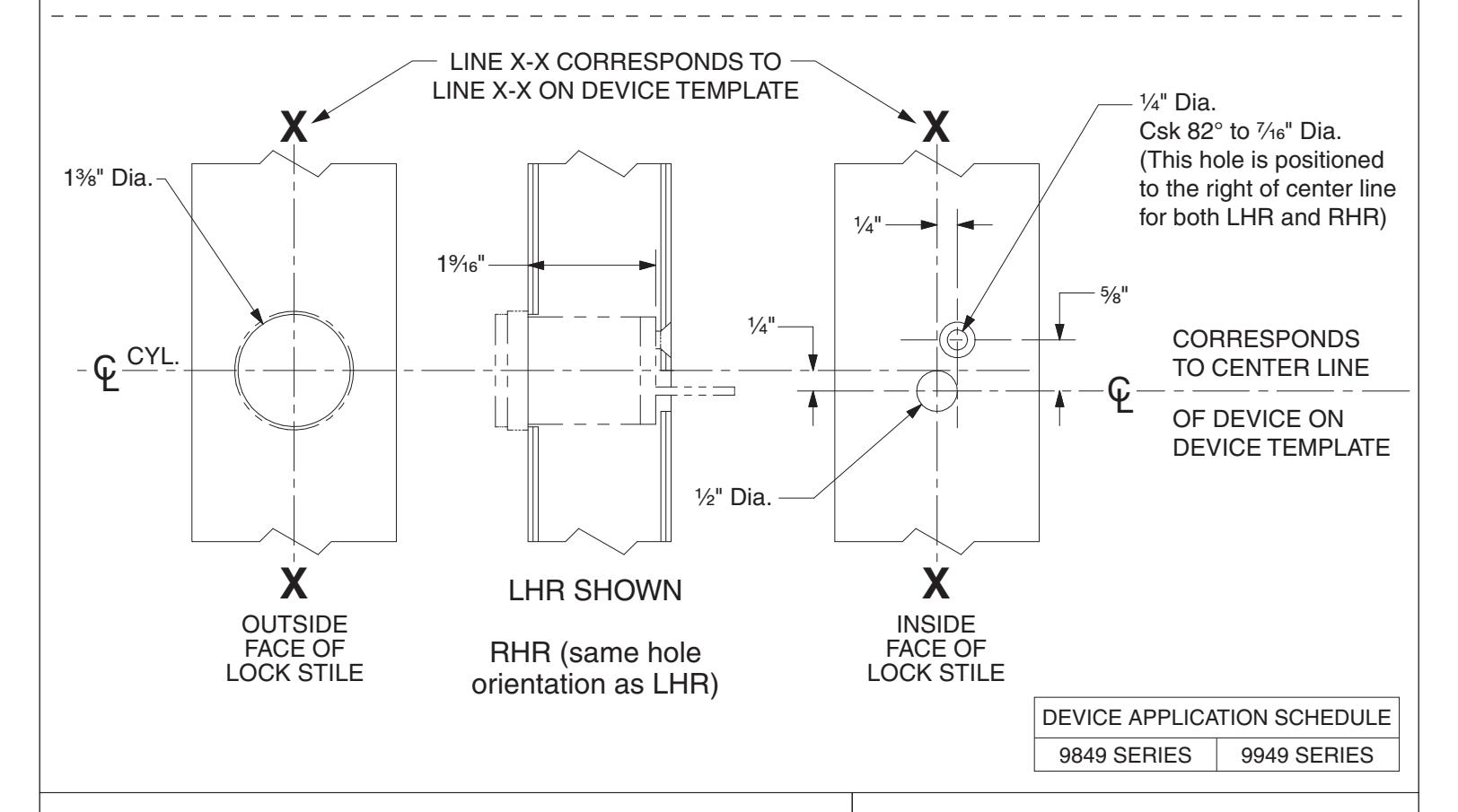

110NL Cylinder Preparation VON DUPRIN NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING TEMPLATE NUMBER: 40022_C DATE: 05-28-13
