Slide Bolts, Surface Bolts and Misc

Vertical Rod Protector & Latch Bolt Cover

Standard Features

• Assist in handicap conformance
• Use in hospitals and schools, etc.
• 18 Ga. 304 Stainless Steel
• •
• Installs with #6 x ¾" screws directly into the door
• Install on any type of metal, plastic, or wood door regardless of thickness
• Vertical rod cover
  • 3-⅛" wide x 24", 36" or 48" high
  • Special lengths available
  • 1- projection from door
• Latch bolt cover
  • 7" wide x 10" high
  • 2-⅛" projection from door

How to Order

• • 1811 (2) 24" Vertical Rod Covers,
  • (1) RH & (1) LH Latch Bolt Cover
• • 1811-36 (2) 36" Vertical Rod Covers,
  • (1) RH & (1) LH Latch Bolt Cover
• • 1811-48 (2) 48" Vertical Rod Covers,
  • (1) RH & (1) LH Latch Bolt Cover
• • 1812 (1) 24" Vertical Rod Cover &
  • (1) RH Latch Bolt Cover
• • 1813 (1) 24" Vertical Rod Cover &
  • (1) LH Latch Bolt Cover
• • 1812-1-24 24" Vertical Rod Protector
• • 1812-1-36 36" Vertical Rod Protector
• • 1812-1-48 48" Vertical Rod Protector
• • 1812-2 RH Latch Bolt Cover
• • 1812-3 LH Latch Bolt Cover

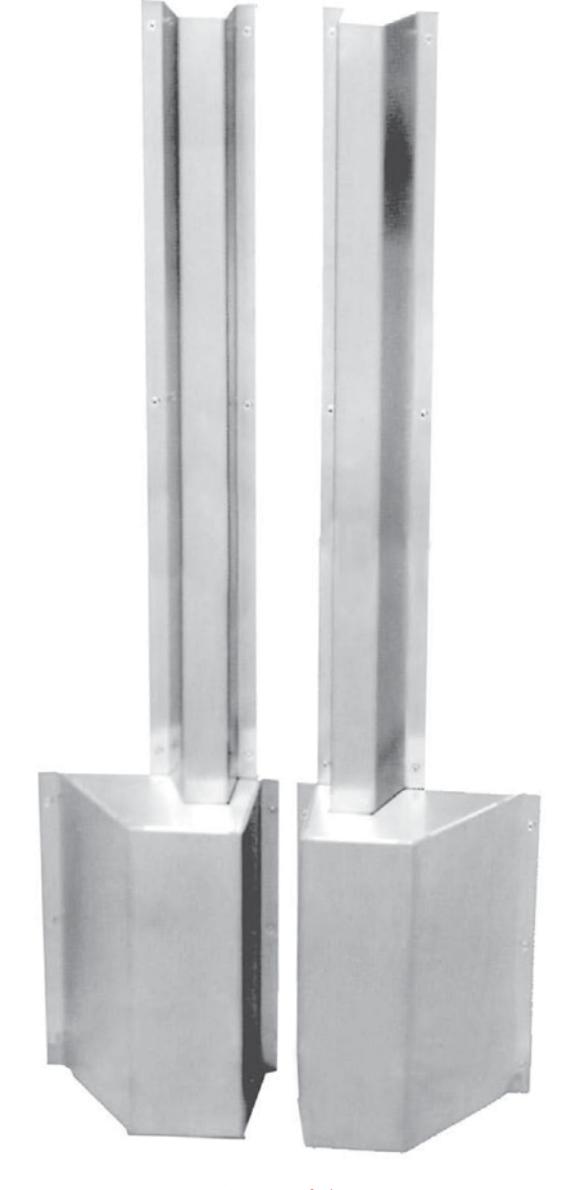

1811 (pair of doors)

Options

• • SEC Security fasteners
• Special height vertical rod covers specify desired length (48" max)
