CM-221 & CM-222 Series ValueWave™ Touchless Switches

Camden CM-221 & CM-222 Series ValueWave™ switches eliminate the spread of germs through the convenience of hands-free activation, and provides industry-leading dependability and performance.

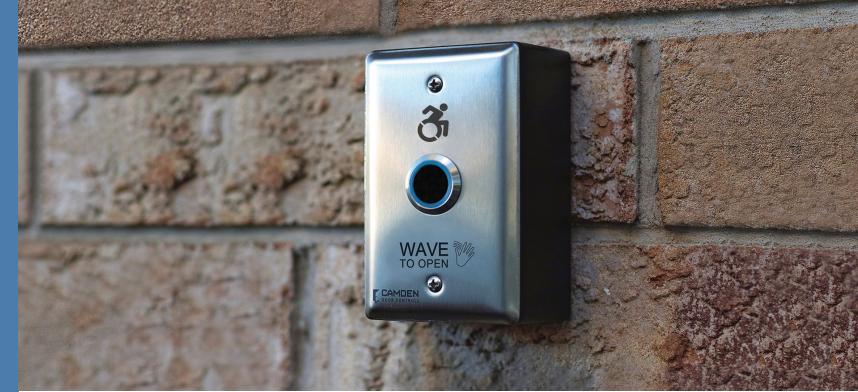

Ideal for indoor or outdoor use, as part of an automatic door or access control system, ValueWave™ no-touch switches are designed for easy installation and trouble-free service in high traffic applications.

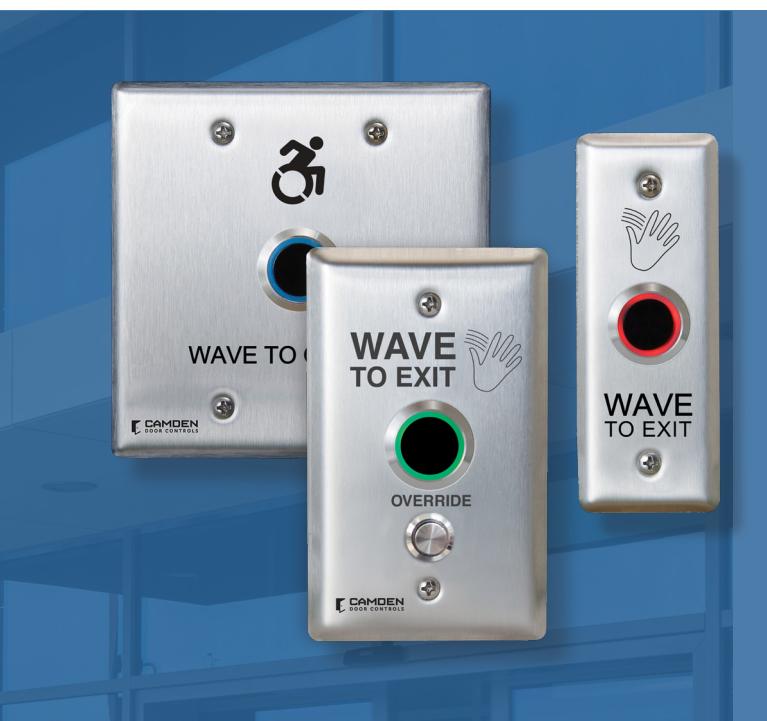

CM-221 & CM-222 Series switches are available in a range of models with narrow, single and double gang stainless steel faceplates and a selection of faceplate graphics.

Features

• • Adjustable sensor range 2" to 8" (5 to 20 cm)
• • Adjustable time delay (0.5 to 20 sec.) and toggle operation
• • Red/green or blue /green light ring with switch or remote activation
• • Weather/water resistant, IP 65 rated
• • Single, narrow and double gang stainless steel faceplates
• • Selection of faceplate laser etched graphics, resistant to cleaners
• • (1) Form 'C' contact, 1A @ 30 VDC
• • Option for manual 'Override' switch

SPECIFICATIONS

OPERATING VOLTAGE: • 12 - 24 VDC ± 10%

• FILTERED, REGULATED DC POWER SUPPLY REQUIRED

• CONNECTION OF AC OR DC VOLTAGE ABOVE SPECIFIED RANGE VOIDS WARRANTY

CURRENT DRAW: 45 mA (PEAK)

RESPONSE TIME: 10ms

TEMPERATURE RANGE: 14°F to 122°F (-10°C to +50°C)

CONTACT RATING: 1 AMP @ 30 VDC

CONTACTS: COMMON / N.O. / N.C.

MODELS	RED / GREEN ILLUMINATION	BLUE / GREEN ILLUMINATION
'Wave to Open' Graphics	CM-221/A42 ValueWave™ Touchless Switch Single Gang, Compatible Surface Mounting Box CM-34BL.	CM-222 / A42 ValueWave™ Touchless Switch Single Gang, Compatible Surface Mounting Box CM-34BL.
	CM-221/A42N ValueWave™ Touchless Switch Narrow (Jamb), Compatible Surface Mounting Box CM-23D.	CM-222 / A42 N ValueWave™ Touchless Switch Narrow (Jamb), Compatible Surface Mounting Box CM-23 D.
	CM-221/A42W ValueWave™ Touchless Switch Double Gang, Compatible Surface Mounting Box CM-53.	CM-222/A42W ValueWave™ Touchless Switch Double Gang, Compatible Surface Mounting Box CM-53.
'Wave to Exit' Graphics	CM-221/46 ValueWave™ Touchless Switch Single Gang, Compatible Surface Mounting Box CM-34BL.	CM-222 / 46 ValueWave™ Touchless Switch Single Gang, Compatible Surface Mounting Box CM-34BL.
	CM-221/46N ValueWave™ Touchless Switch Narrow (Jamb), Compatible Surface Mounting Box CM-23D.	CM-222 / 46 N ValueWave™ Touchless Switch Narrow (Jamb), Compatible Surface Mounting Box CM-23D.
	CM-221/46W ValueWave™ Touchless Switch Double Gang, Compatible Surface Mounting Box CM-53.	CM-222 / 46 W ValueWave™ Touchless Switch Double Gang, Compatible Surface Mounting Box CM-53.

SWITCH WITH MANUAL 'OVERRIDE'

CM-221M / 46 ValueWave™ Touchless Switch w/manual 'override', Single Gang, Red / Green Illumination, compatible Surface Mounting Box CM-34BL.

SWITCH AND POWER SUPPLY KIT

Add Suffix '-P3' to CM-221 & CM-222 Series Touchless Switch model # for a CX-PS13v3 Linear Power Supply.
