VON DUPRIN 33 35& 98 99-VDLBMKIT-ED Installation Instruction

INSTALLATION INSTRUCTIONS

The VDLBMKIT-ED is a field installable latch bolt monitor kit for the Von Duprin 33/35 & 98/99 series.

A.

VDLBMKIT-ED In clude s

• A. LBM Label

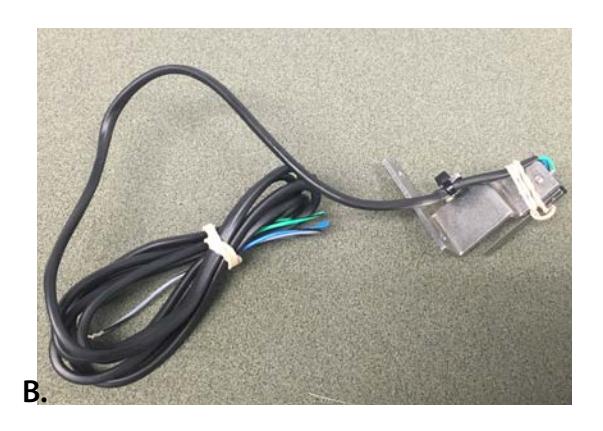

• B. LBM Switch
• C. 2 Phillips Screws

S p eci f ic atio n s

• Green/Black Common
• Blue/Black Normally Open (NO)
• Grey/Black Normally Closed (NC)
• .5A 24VAC/DC

To ol s Req uired

• Phillips Screw Driver

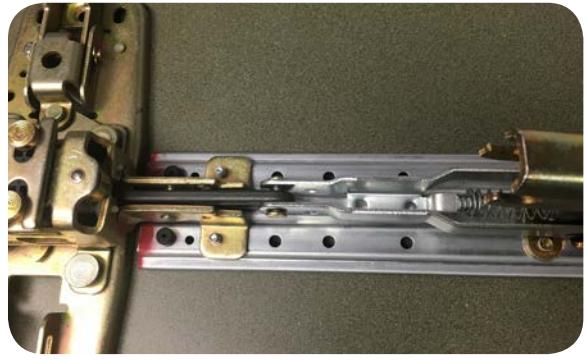

1. Remove baserail and head assembly from push pad and housing.

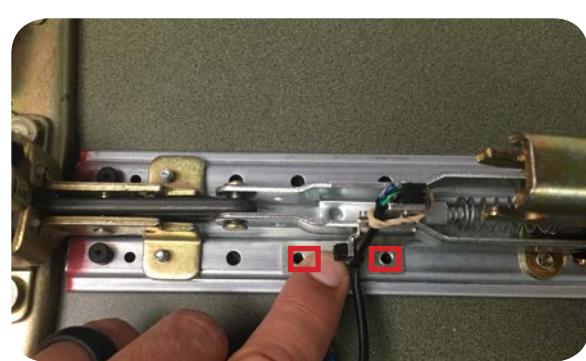

2. Position the LBM switch over the connection rod and line up with 2 screw holes in baserail.

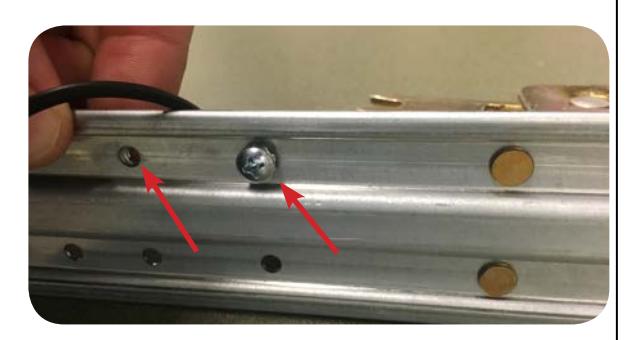

3. Flip baserail over and install 2 screws to secure bracket to baserail.

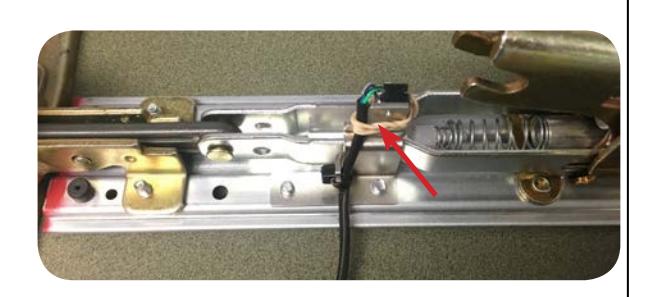

4. With switch secured remove rubber band so switch is operational.

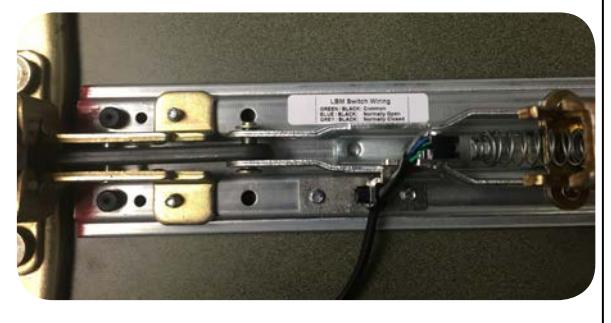

5. Place LBM sticker near switch for wire color code reference.
