• • Tried & Proven technology
• • High output mode for tall vertical rod doors
• • Works on all 33/35 & 98/99 series
• • Patent pending

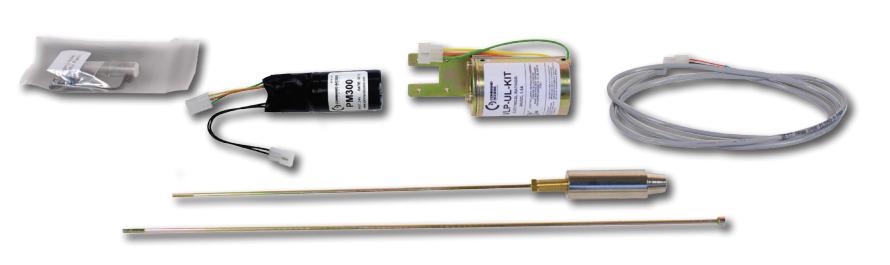

The VLP-UL-KIT is a field installable solenoid latch pullback kit for Von Duprin 33/35 & 98/99 series devices. Retrofit mechanical devices in the field to electrified latch pullback devices while maintaining the UL Listing. This easy-to-install kit from Command Access comes with our patented PM300 providing a localized power boost! Check out the installation video below.

SPECIFICATIONS

Voltage:

• Voltage range 24 to 30 VDC
• Average Current Peak 12A (350ms)
• Average Current Hold -250mA

Wire run:

• 500' with 18ga wire • 700' with 16ga wire

Product Details:

• Box: 29" x 3.25": x 2.5"
• Weight: 3 Lbs
• 11 Master Pack: 30" x 6" X 6"
• Weight: 35 Lbs

Recommended UL Locking Hardware Power Supplies:

• PS210

• PS1
• PS220/220B
• PS2
• PS440B
• PS5-8

• PS480B

Features:

• Extended duration latch pullback capability for "continuously on" conditions
• The "local boost" design allows for centralized power supplies and extended wire runs up to 500' with 18/2 wire. Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel
• Low current draw: Compatible with most 24VDC, 2A (or greater) regulated power supplies
• Field switchable to a "High Torque" mode if paired with a CAT power supply.
• 6' cable with Quick Connect for PM300 module to easily connect to power supply lead
• 3-year "no hassle" warranty

Accessories:

• Request to Exit (REX) Available as a field installable kit
• Latchbolt Monitor (LBM) Available as a field installable kit

How to Order

Part #	Easy Order #	Description
VLP-UL-KIT	70116	Kit for the VD 33/35 & 98/99 series 36" or 48". EU 24 VDC.
VDREXKIT-ED	70124	Field installable REX kit for VD 33/35 & 98/99 series.
VDLBMKIT-ED	79235	Field installable LBM kit for VD 33/35 & 98/99 series.
