VLP-UL-KIT

INSTALLATION INSTRUCTIONS

The VLP-UL-KIT for 36" or 48" is a field installable solenoid latch pullback for the Von Duprin 33/35 & 98/99 series exit devices.

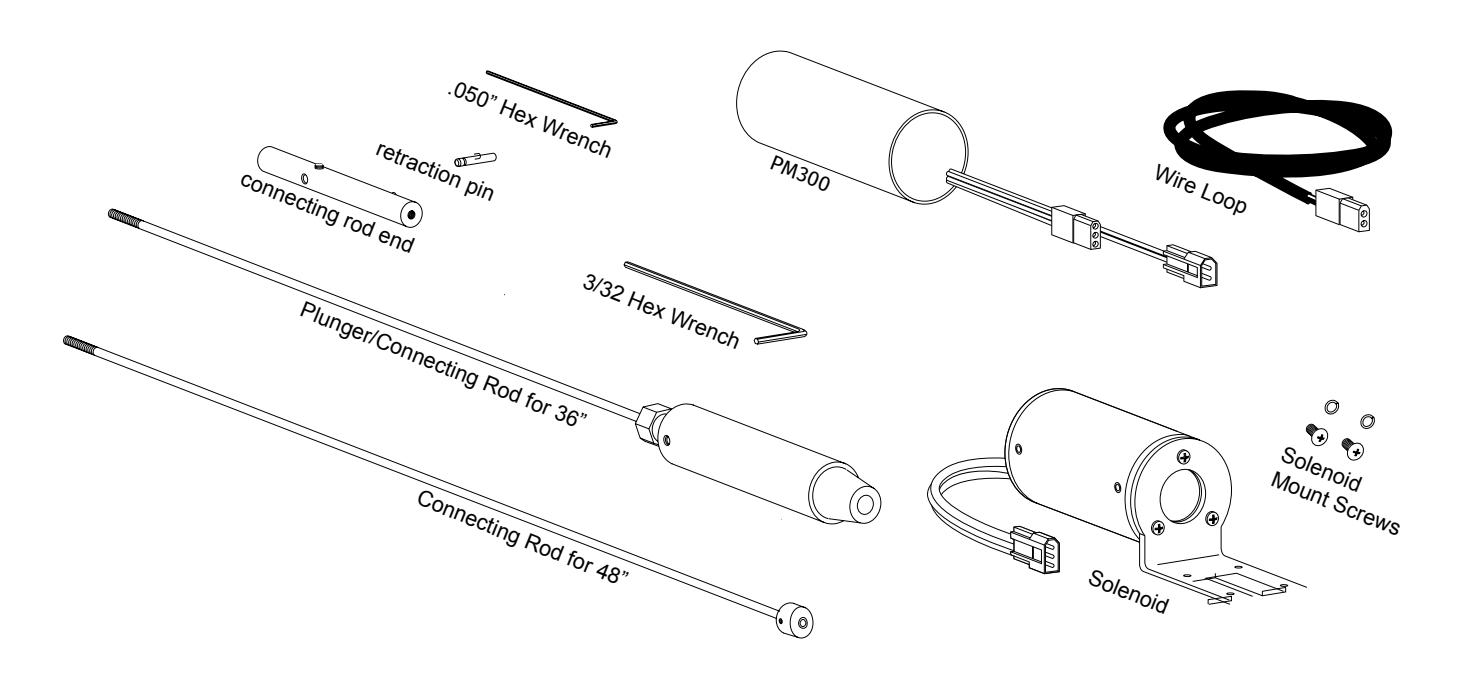

Tools Required

Cordless Drill or Phillips Screwdriver

1

TECHNICAL INFORMATION

Specifications

• Wires: Input to PM300 non-polarized Black (+)(-)
• Operating Voltage Range: 22-30 VDC
• Coil Resistance Primary Coil: 2 ohms; Holding Coil : 125 ohm
• Output from PM300: Yellow=Pull Coil; Orange= Hold Coil; Green=Common

• Fuse: Glass 3.5 - 5A, Resettable 1A trip

• Relay: 5A or greater

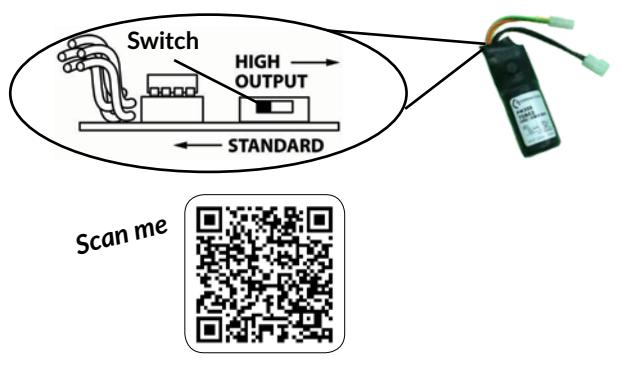

Standard Mode High Output Mode

• Fuse: Resettable 2A trip

• Relay: 10A or greater

PM300 Compatibility Chart

Troubleshooting & Diagnostics

Symptom	Possible Cause	Solution
Solenoid pulls back but releases immediately	Solenoid plunger not seating correctly	- Check plunger rod adjustment. - Check vertical rod adjustment. - Make sure the plunger set screw has been installed correctly.
Solenoid pulls back and holds, but does not retract latch far enough	Plunger rod out of adjustment	Check plunger rod adjustment
Solenoid has excess delay time and/or drop out.	Wire run exceeding the maximum recommended distance	Locate power supply within the distances specified

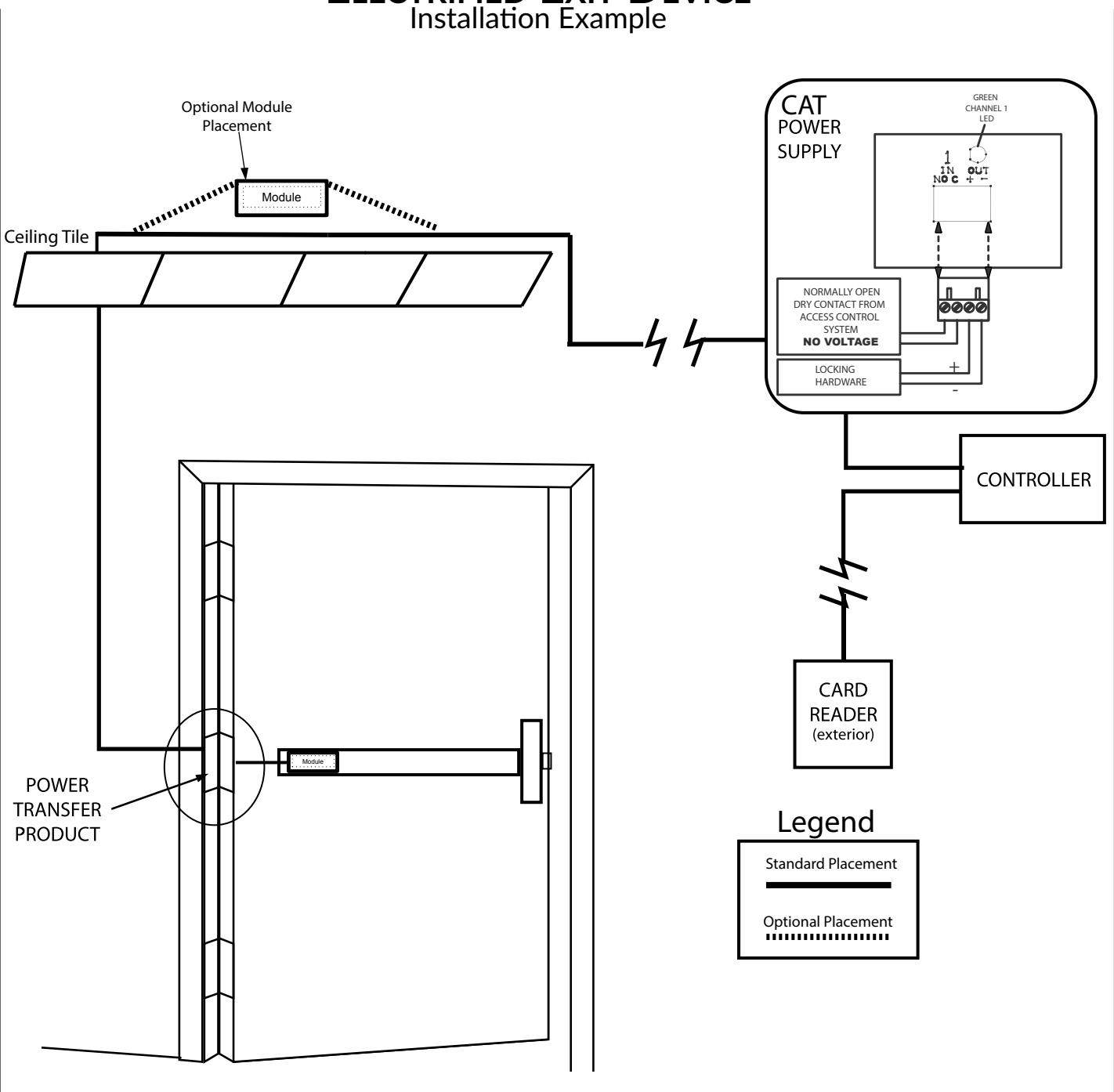

Electrified Exit Device

RECOMMEND POWER SUPPLIES:

All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory.

• PS210

• PS440B
• PS1

• PS5-4

• PS220/220B
• PS480B
• PS2/2B
• PS5-6

For more information click here or go to our website

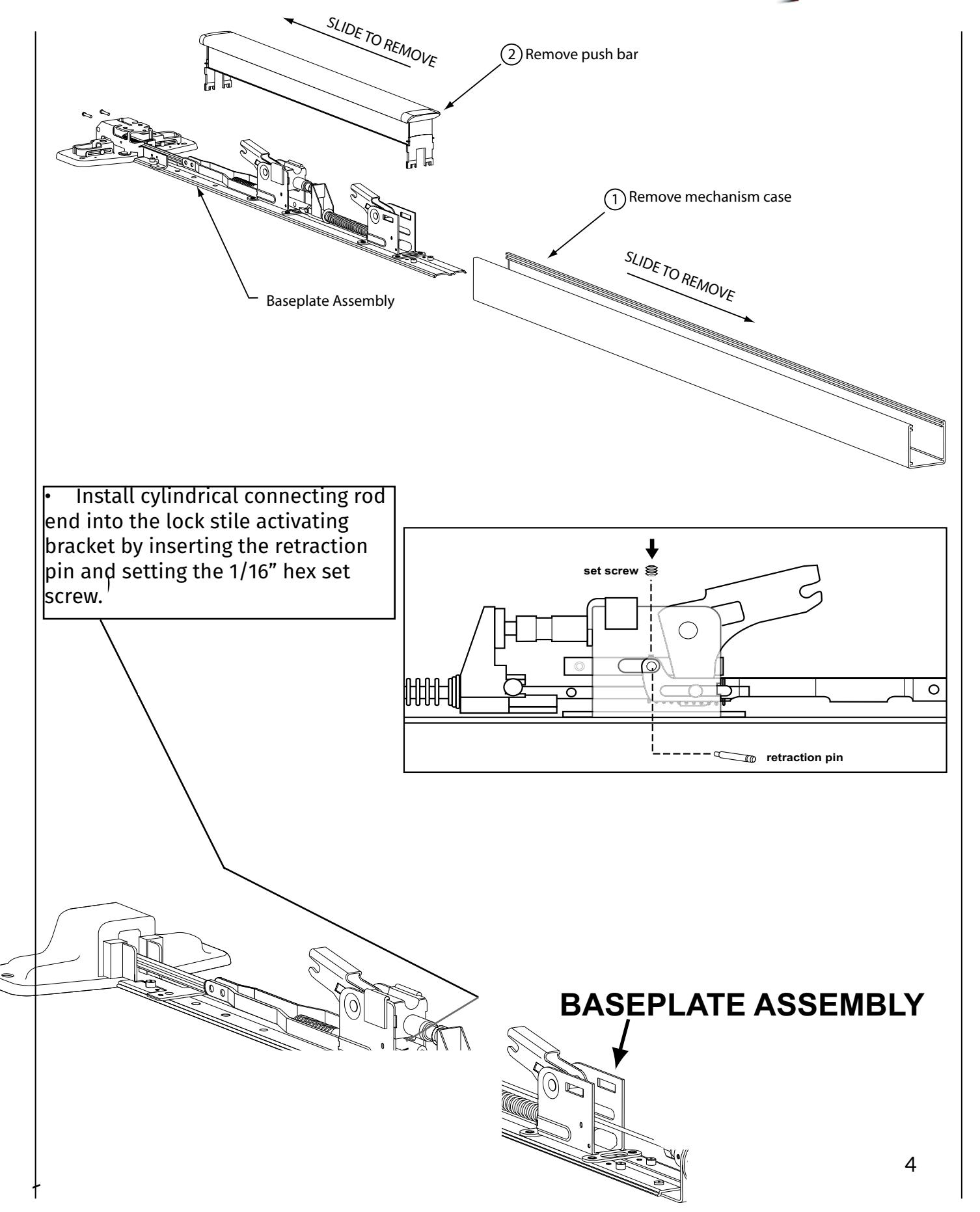

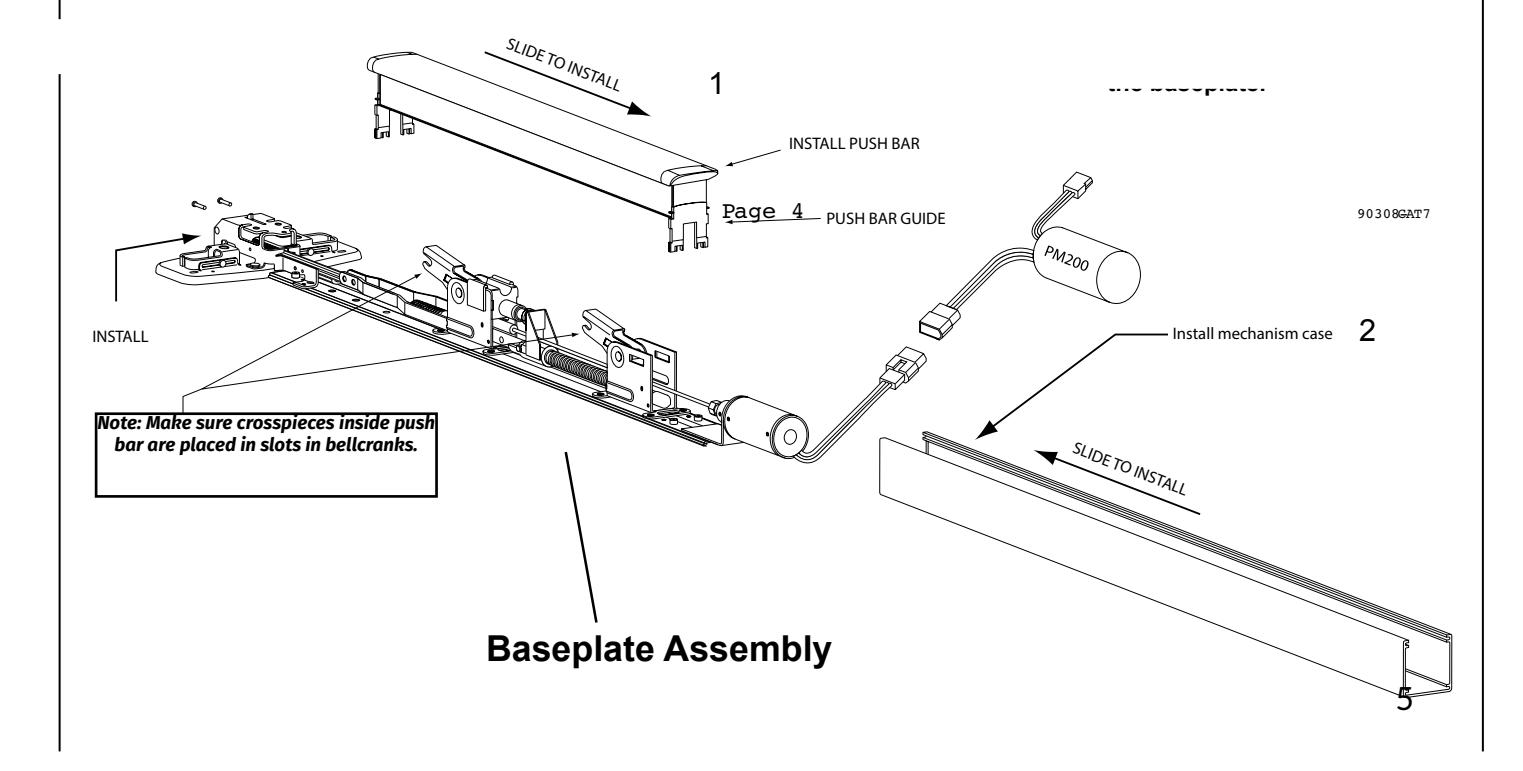

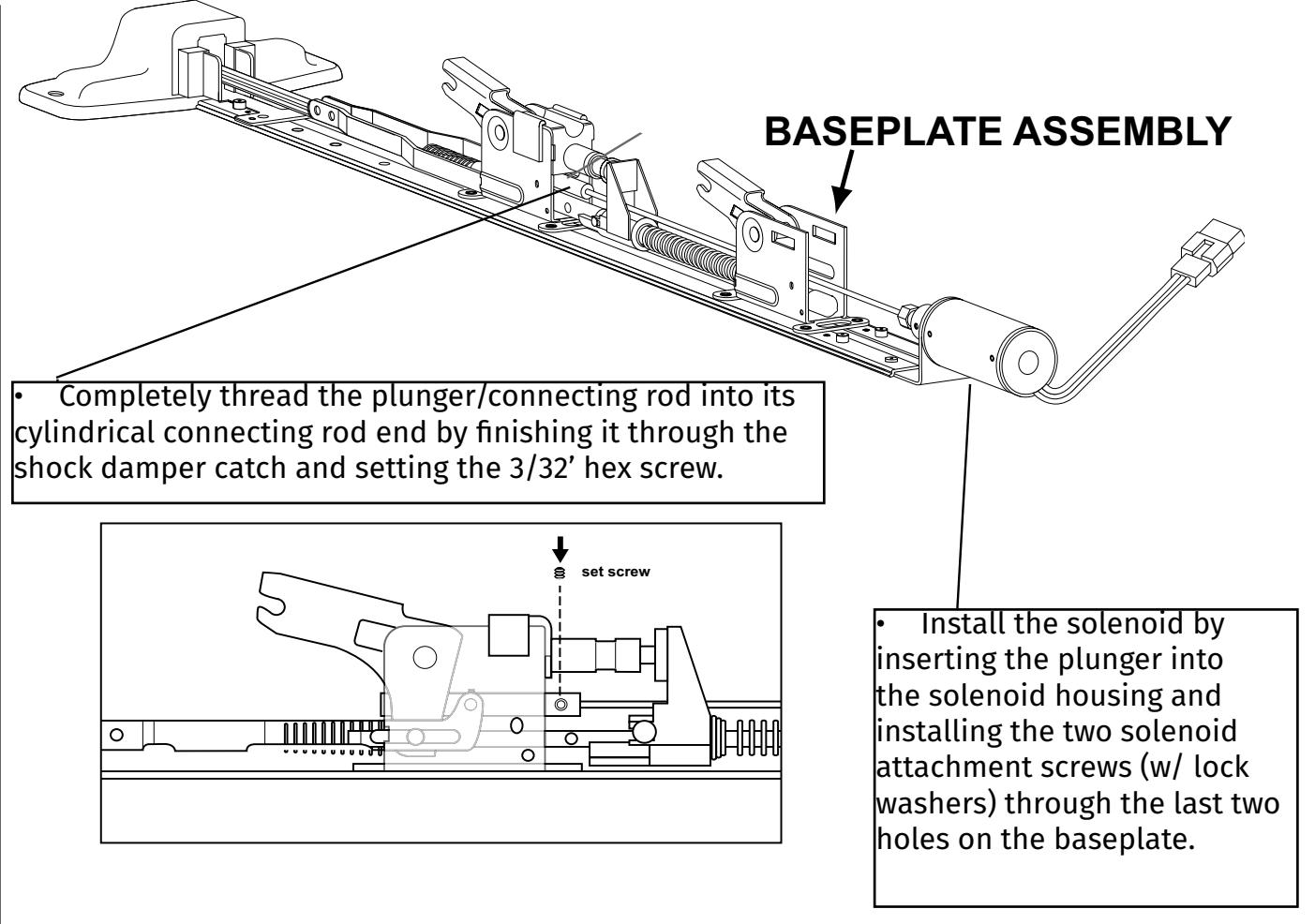

• Reassemble device. Place the PM300 in the area between the solenoid and the end cap.

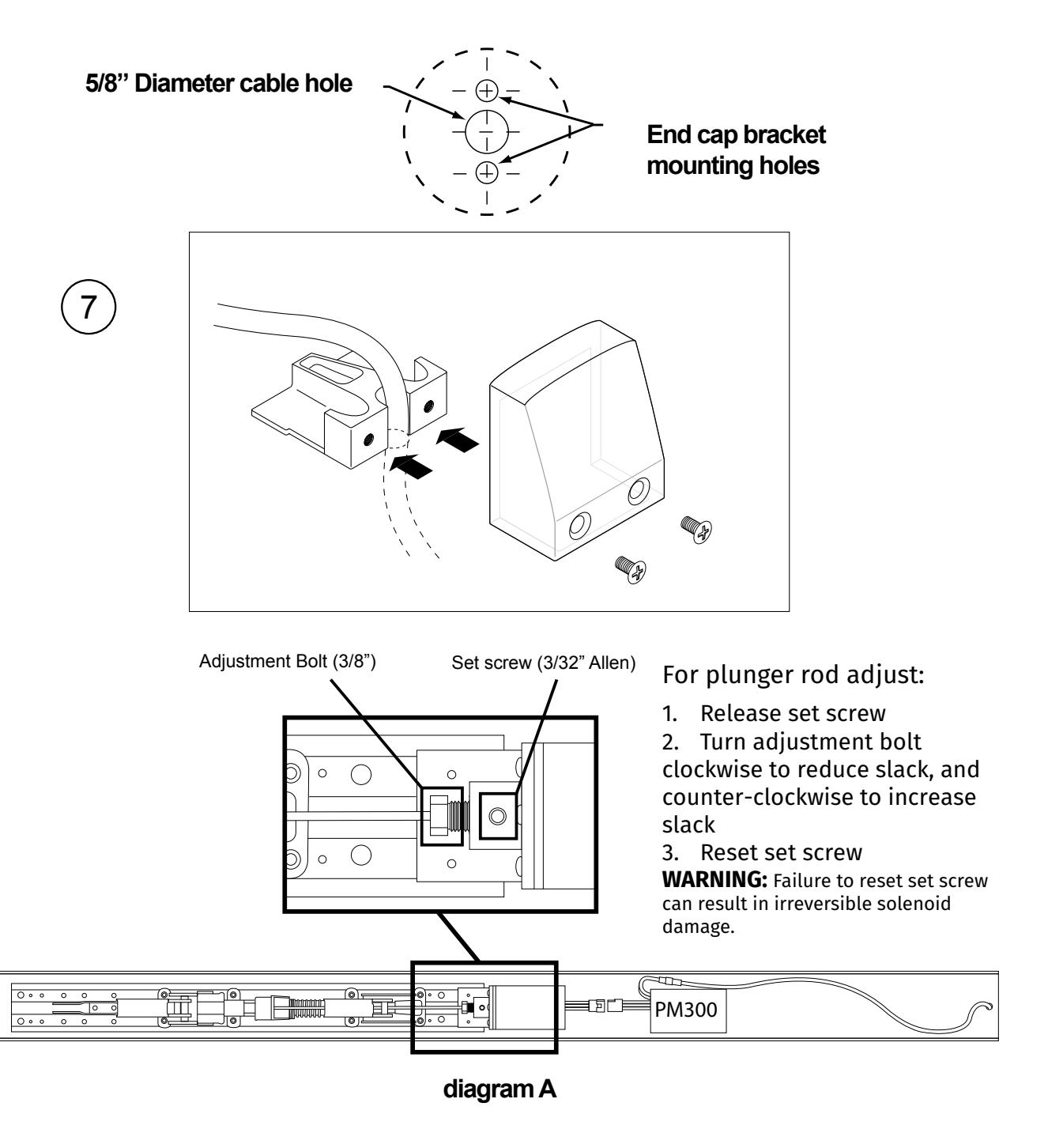

• Drill solenoid cable hole in door between end cap bracket mounting holes. Leave off dogging cover and end cap until wires are routed.
