VC SERIES

INSERT INSTRUCTIONS

The VC series is a voltage converter that takes incoming voltage, steps it down & supplies consistent voltage at either 24V or 12V, depending on the unit selected.

• VC2412 converts 24VDC to 12VDC
• VC3024 -converts 30VDC to 24VDC

INCLUDES

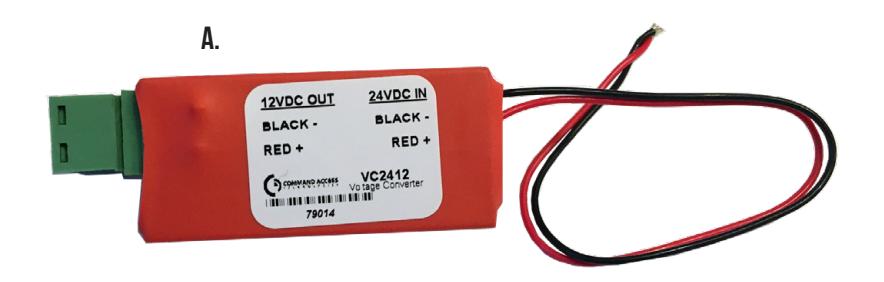

A. 1- VC MODULE (VC2412 SHOWN)

SPECIFICATIONS

VC2412

INPUT VOLTAGE: 24VDC +/- 10%OUTPUT VOLTAGE: 12VDC +/- 10%

MAXIMUM OUTPUT CURRENT: 1 A

VC3024

INPUT VOLTAGE: 30VDC +/- 10% OUTPUT VOLTAGE: 24VDC +/- 10% MAXIMUM OUTPUT CURRENT: 1 A

INSTALLATION VIDEO
