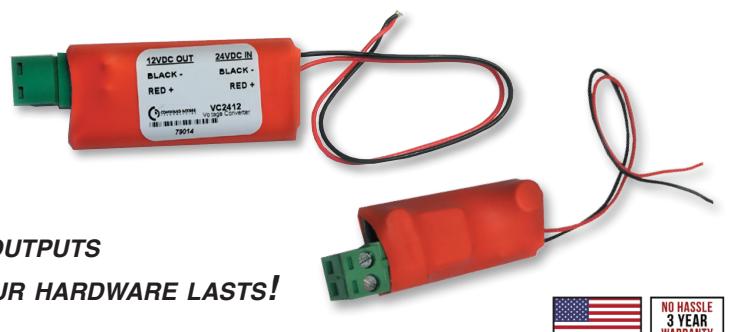

VC Series

voltage converter module

• Steps down voltage with consistent output
• Eliminates the need for additional power source
• Pair with CAT power supplies for dual voltage outputs
• Add to other power supplies that run hot, so your hardware lasts!

The VC series is a voltage converter that takes incoming voltage, steps it down & supplies consistent voltage at either 24V or 12V, depending on the unit selected. The VC2412 is ideal when paired with CAT power supplies when 1 output is needed as 12V. Use the VC3024 when working with other power sources that run hot 27-30V to step down & provide your locking hardware with a consistent 24V. A great tool to have with you in the field!

SPECIFICATIONS

Voltage:

VC2412

• Input Voltage range: 24-30VDC • Output Voltage range: 12VDC • Maximum Output Current: 1A

VC3024

• Input Voltage range: 27-30VDC • Output Voltage range: 24VDC • Maximum Output Current: 1A

Product Details:

• Module: 2.375" x .875" x .75"

• Weight: .2 lbs

FEATURES

• Euro connector on step down side for easy install.
• Create dual voltage output boards in the field
• Bring down hot voltage so your hardware gets the consistent 24V it is looking for.
• Pair with PS220 power tap to run door sequencers, PRI's, Cameras & more at 12V.

See it in Action!

How to Order

PART #	EASY ORDER #	DESCRIPTION
VC2412	79014	Voltage converter 24VDC to 12VDC
VC3024	72551	Voltage converter 30VDC to 24VDC
