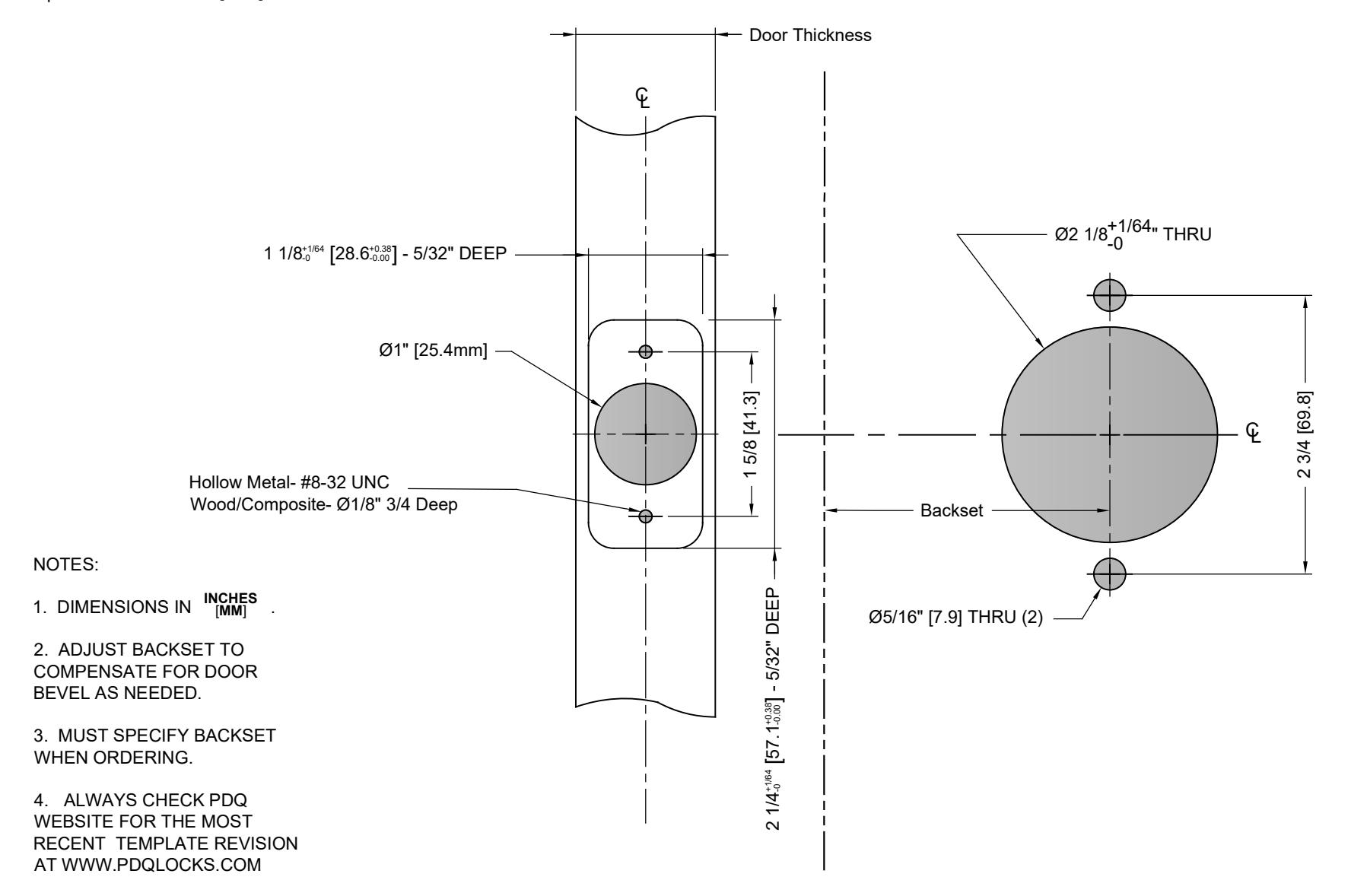

V32422 Rev1 XGT-GT Series Cylindrical Lock Radius

XGT/GT Series Cylindrical Lockset

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/4" [44.5] - 2 1/4" [57.2] Backset: 2 3/4" [70] - 5" [127] Faceplate: 1 1/8" [28.6] Radius

TEMPLATE: V32422

REV. 1 4-10-19

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTEC www.pdglocks.com
