V32420 Rev2 XGT-GT Series Cylindriucal Lock Square

XGT/GTS-STS Cylindrical Lockset

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/4" [44.5] - 2 1/4" [57.2] Backset: 2 3/4" [70] - 5" [127] Faceplate: 1 1/8" [28.6] Square Corner

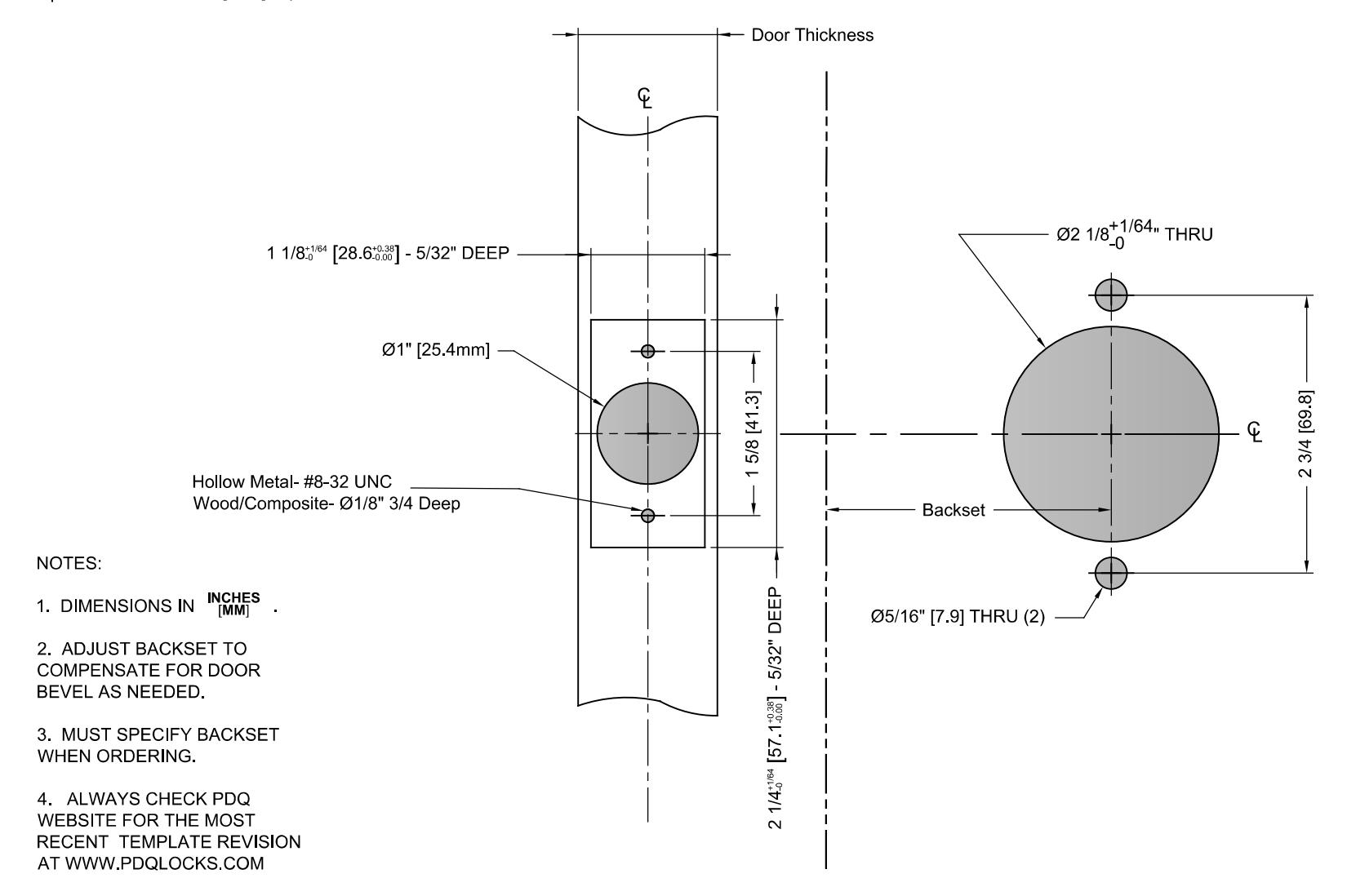

TEMPLATE: V32420

REV. 2 5-1-20
