V32420 Rev1 XGT-GT Series Cylindrical Lock Square

XGT/GT Series Cylindrical Lockset

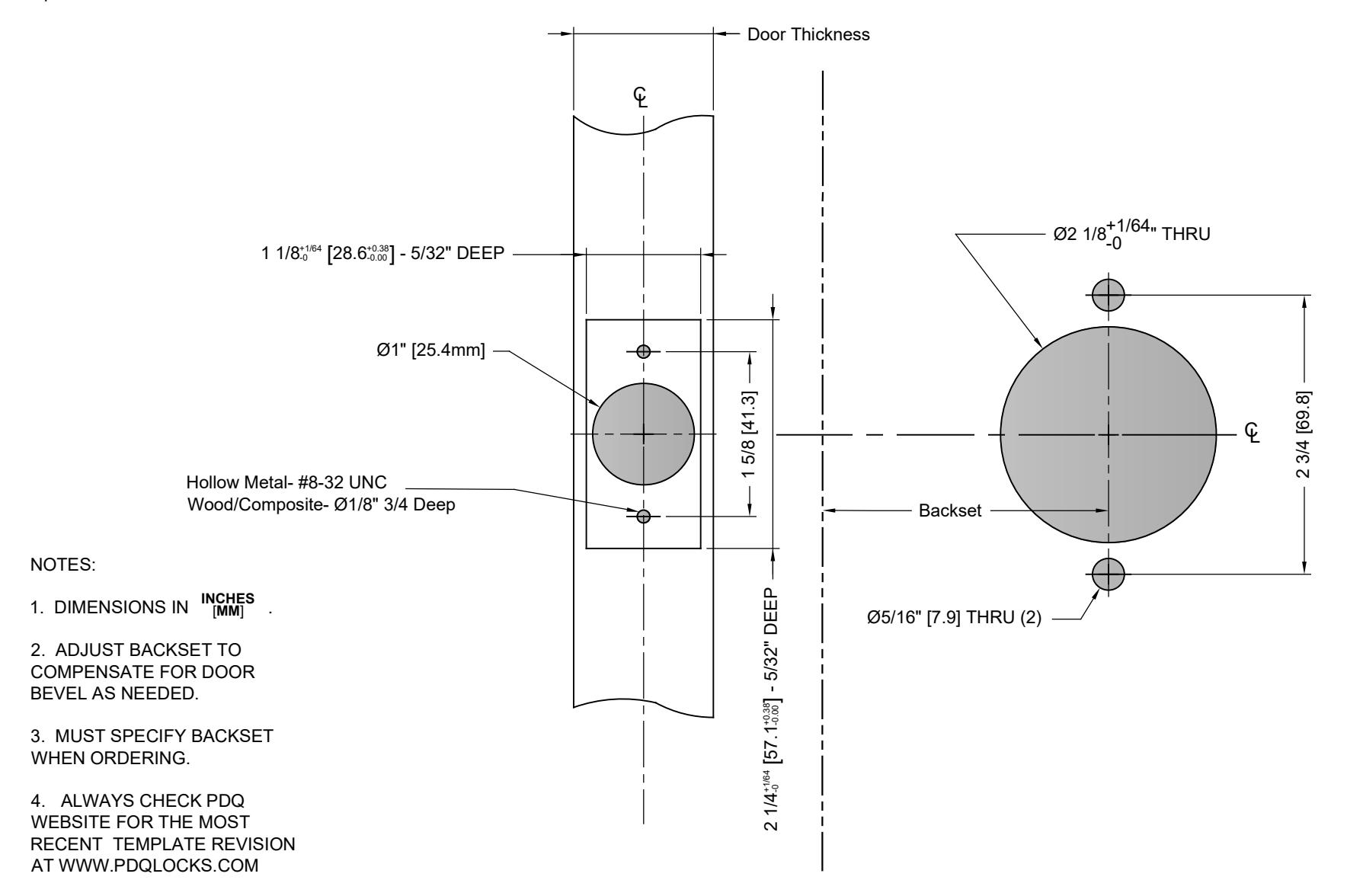

TEMPLATE: V32420 REV. 1 4-1-19

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/4" [44.5] - 2 1/4" [57.2] Backset: 2 3/4" [70] - 5" [127] Faceplate: 1 1/8" [28.6] Square Corner

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTEC www.pdqlocks.com
