View PDFGP Series Cylindrical Locks

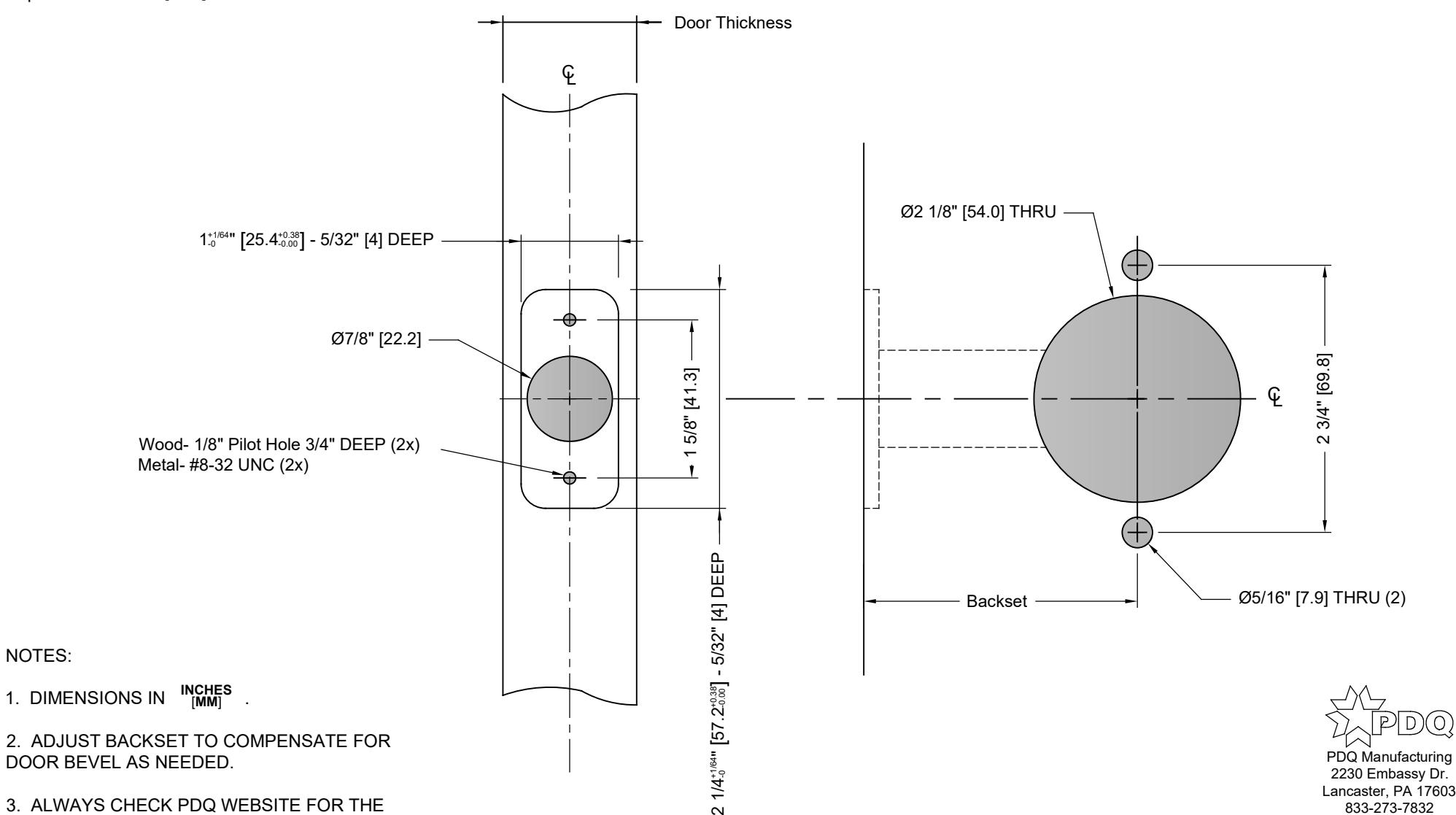

TEMPLATE: V32394
REV. 3 4-1-19
833-2 PDQTECH www.pdqlocks.com
Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door
Door Thickness: 1 3/8" [34.9] - 1 3/4" [44.5]
MOST RECENT TEMPLATE REVISION AT
WWW.PDQLOCKS.COM
Backset: 2 3/8" [60.3] Faceplate: 1" [25.4] Radius
