GP Series Cylindrical Locks

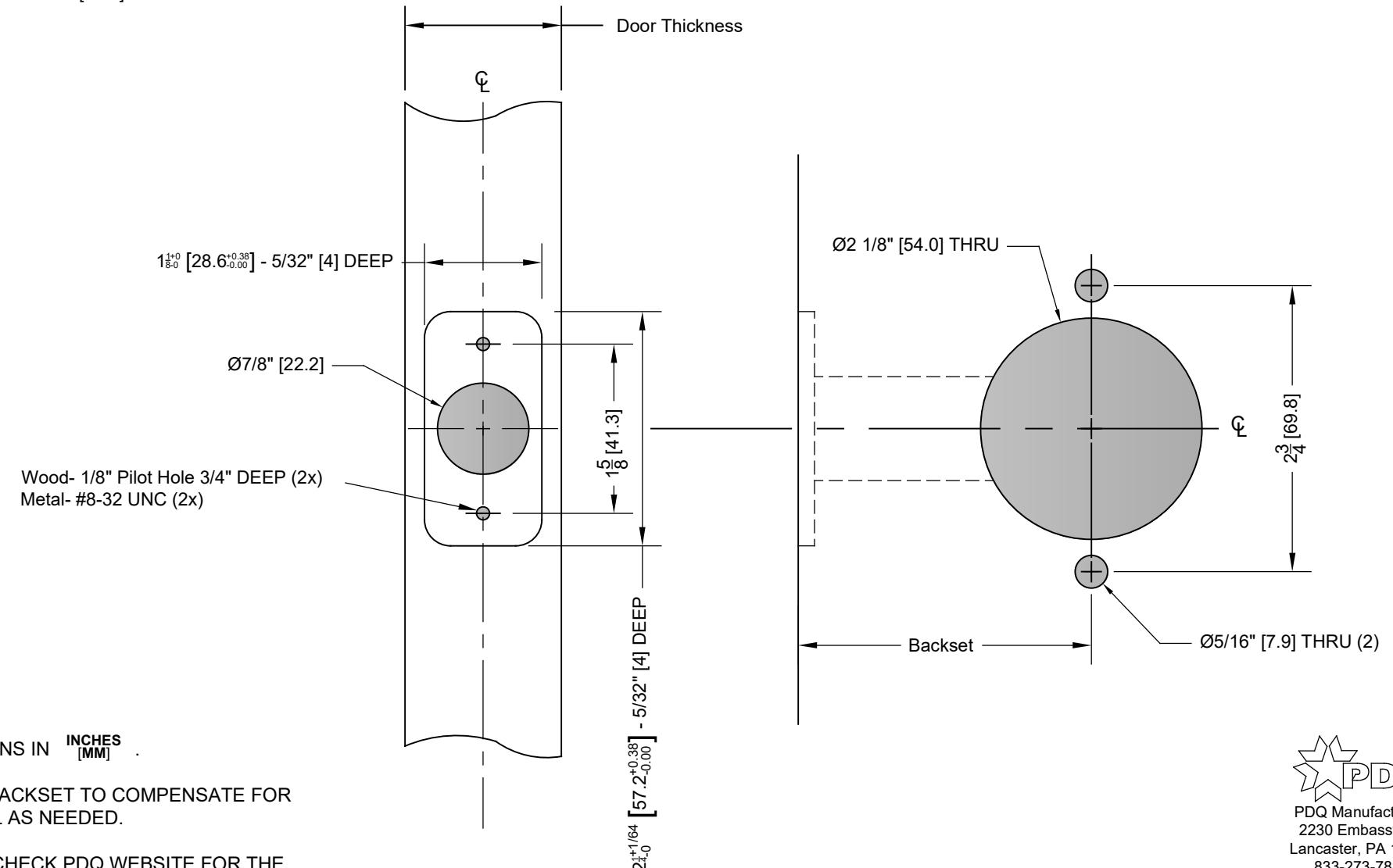

TEMPLATE: V32389

REV. 2 4-1-19

Hollow Metal, Wood or Composite- Square or Beveled Edge Door Door Type:

Door Thickness: 1 3/8" [34.9] - 1 3/4" [44.5]

Backset: 2 3/4" [60.3] 1 1/8" [28.6] Radius Faceplate:

1. DIMENSIONS IN
2. ADJUST BACKSET TO COMPENSATE FOR DOOR BEVEL AS NEEDED.
3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
