V32388 Rev3 GP Series Cylindrical Locks 2 3-4 BS Square

GP Series Cylindrical Locks

TEMPLATE: V32388

REV. 3 4-1-19

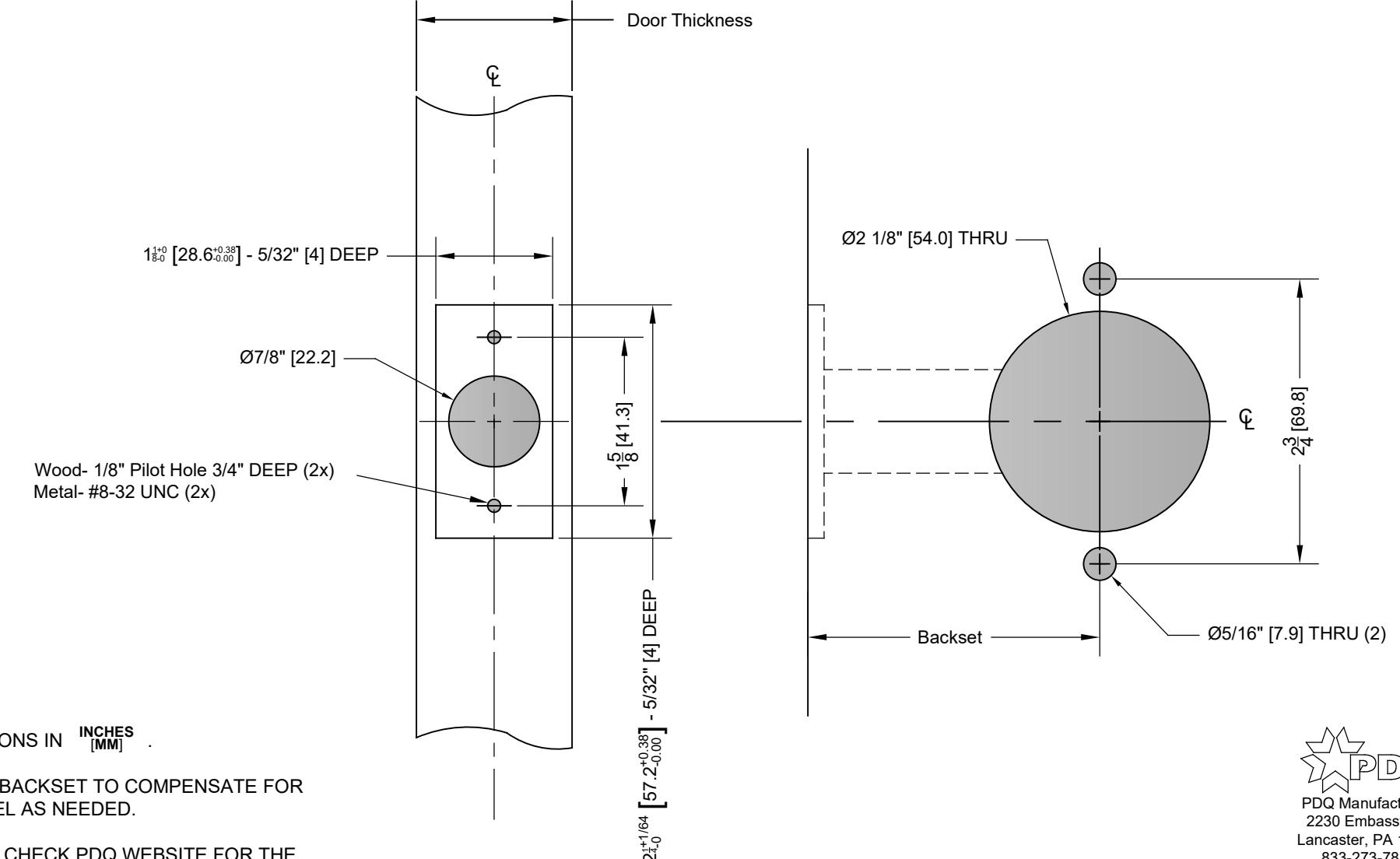

Hollow Metal, Wood or Composite- Square or Beveled Edge Door Door Type:

Door Thickness: 1 3/8" [34.9] - 1 3/4" [44.5]

Backset: 2 3/4" [60.3]

1 1/8" [28.6] Square Corner Faceplate:

NOTES:

1. DIMENSIONS IN

2. ADJUST BACKSET TO COMPENSATE FOR DOOR BEVEL AS NEEDED.

3. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM
