Installation Instructions

V23 - 230L Series

Von Duprin Electric Exit Trim modified by Command Access Technologies

STEP 1 : The door must be machined with a 3/8" wire raceway, Exit Trim & prepped for a energy transfer hinge. Make sure the pocket is free of debris.

STEP 2 : Run the wires from the ETH hinge through the 3/8" raceway starting at the ETH hinge & exiting into the pocket.

STEP 3 : Screw the ETH hinge to the door. At this time DO NOT connect the hinge wires on the jamb side to the wires coming from the power supply.

STEP 4 : Connect the wires exiting the pocket to the Bridge Rectifier (included).

STEP 5 : Connect the Bridge Rectifier to the plug exiting the Electric Exit Trim.

STEP 6 : Carefully slip the connected Electric Exit Trim into the pocket paying close attention not to pinch any wires.

STEP 7 : Mount the Electric Exit Trim per manufacturer's instructions.

STEP 8 : Connect the wires from the power supply at the ETH hinge on the jamb side. Connect the hinge to the jamb.

LEGEND OF TERMS

EU : (Fail Secure) When power is applied, the outside trim will unlock. When power is removed, the outside trim is locked.

EL : (Fail Safe) When power is applied, the outside trim will lock. When power is removed, the outside trim is unlocked.

REE : (Request to Enter Switch) Monitors the outside handle.

EU (Fail Secure 12VAC/DC 24VAC/DC Switch Wire Transfer Hinge Bridge Rectifier (ETH) Power Supply 12VAC/DC 24VAC/DC Switch EL (Fail Safe) Wire Transfer Hinge Bridge Rectifier Power Supply

ELECTRICAL SPECIFICATIONS

SOLENOIDS:

VOLTS CURRENT COIL RESISTANCE 24VAC/DC 150mA 159 Ohms +/- 10% 12VAC/DC 250mA 49 Ohms +/- 10%

SWITCHES: .5A 24VAC/DC

REE: Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

SEE BACK FOR TEMPLATE

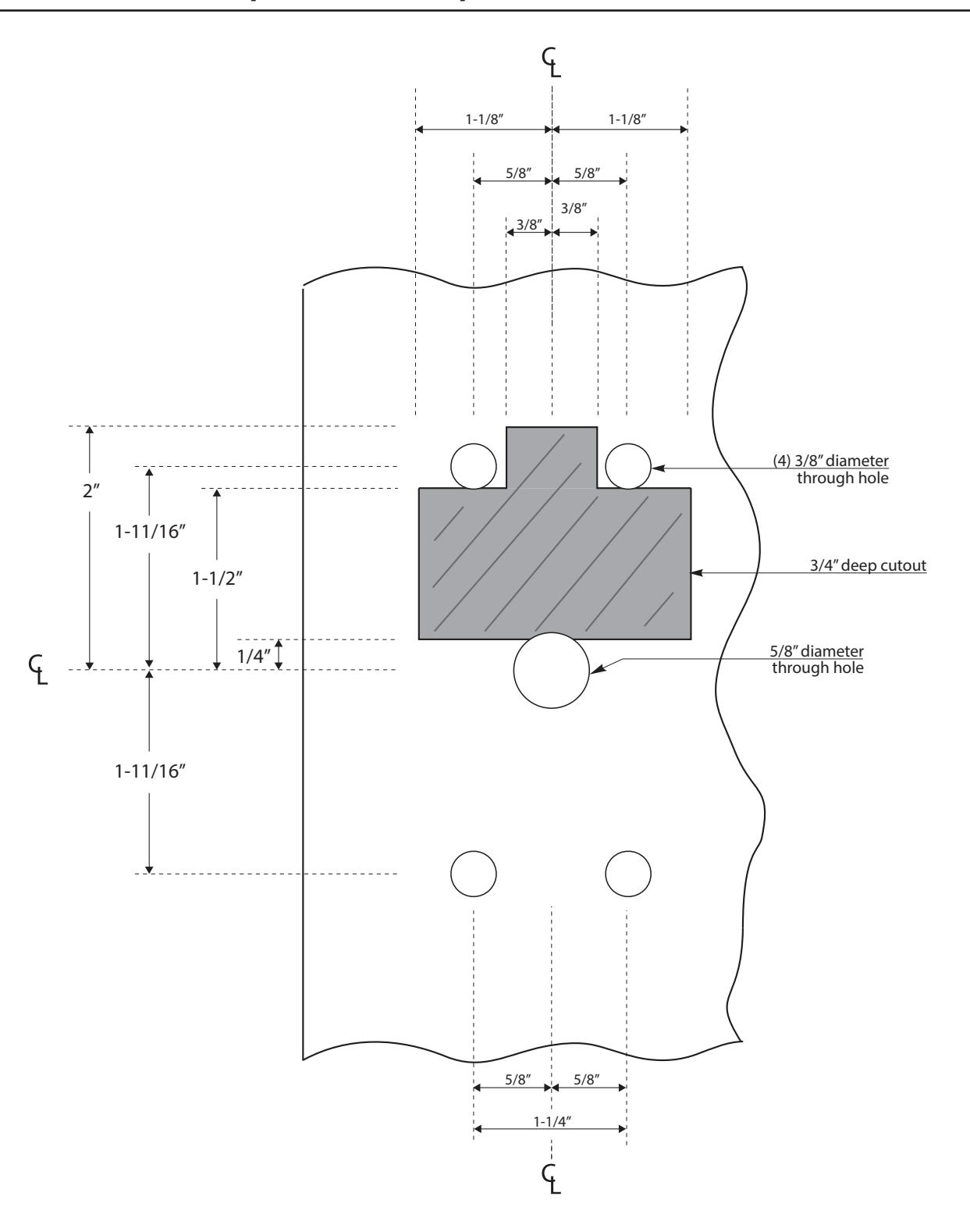

Template for Von Duprin 230L Series Exit Trims

Handing for Von Duprin 230L Series Exit Trims

Back Plate

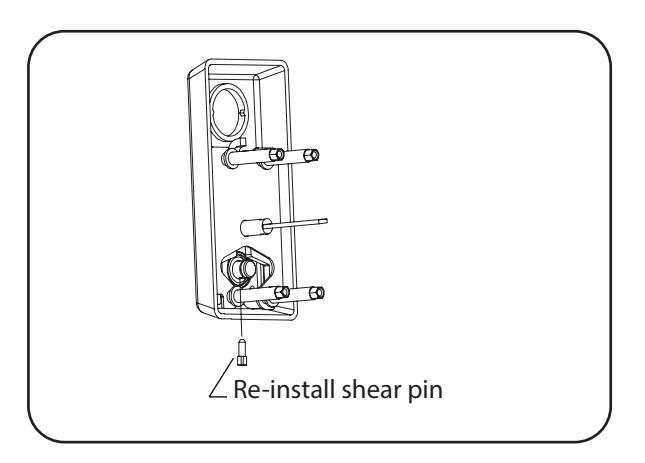

Remove shear pin

• To Change the handing, removing the retaining ring.
• Use a screwdriver to push ip the slider leg to remove any load

• Rotate the lever to the desired position. Re-install shear pin

Slider leg

Lever cam

Retaining Ring

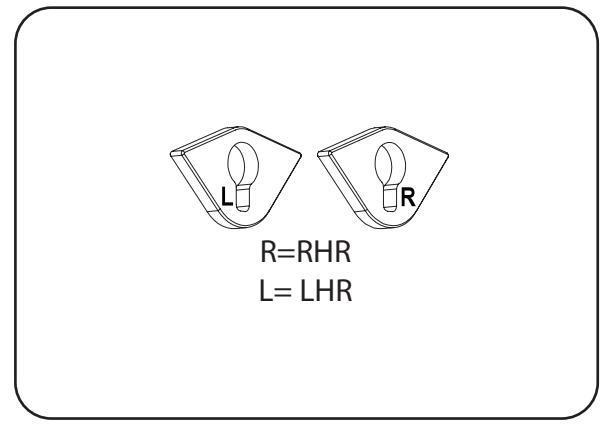

• Re-install lever cam with the correct letter visiable. R=RHR & L=LHR

• Re-install the retaining ring.
