Electrified mullion

I N S E R T I n s t r u c t i o n s

The Command Access V-KRM-EL is an Electric Power Transfer modification of the Sargent/Yale keyed removable mullion system. This modification allows for safe transfer of power from the head of the door frame to the electric strike location(s). When needed, we maintain the ability to easily remove the mullion without damaging or needing to disconnect the power. This is a modification only and does not include any mullion parts, cylinders or strikes.

A.

C.

INCLUDED IN KIT

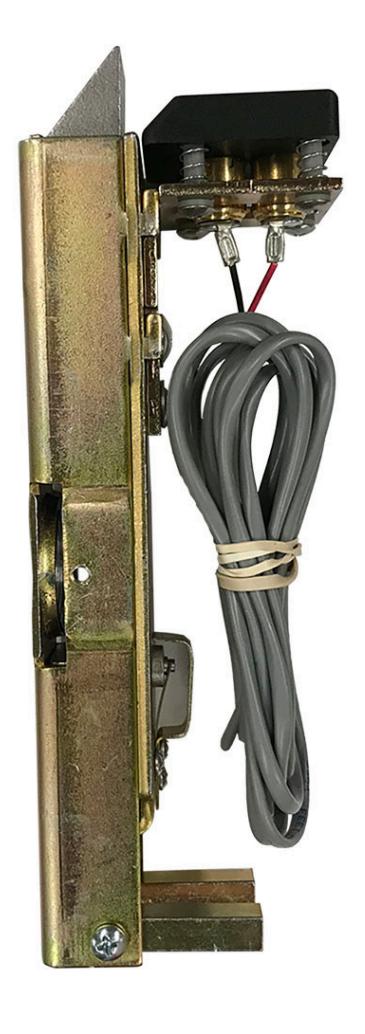

• 60431 Electrified Latchbolt A.

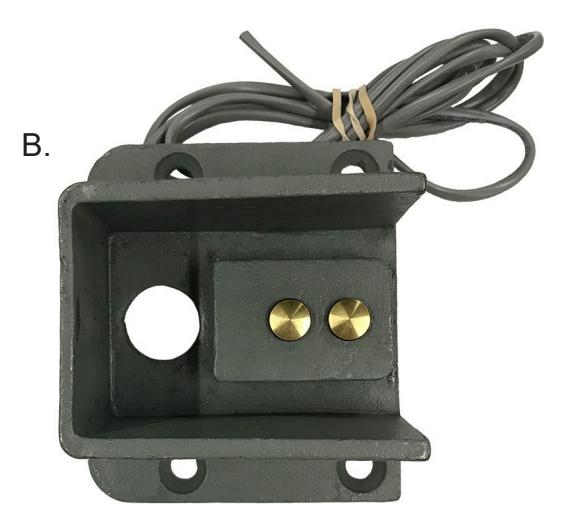

• 60404 Electrified Header Mount Bracket b.
• 40823 Set Screw c.

specifications

features:

• 18ga wires for up to two simultaneously activated strikes
• No hassle 3-Year Warranty

SPECIFICATIONS:

• 12 to 30 VAC/DC @ 4 amps

Installation:

• Refer to OEM Sargent/Yale installation instructions

Link to Command Access website and instructions
