Unequal Leaf Bottom 5.0 x 4.5 x 5.0 Template – T-CT00181-Rev04

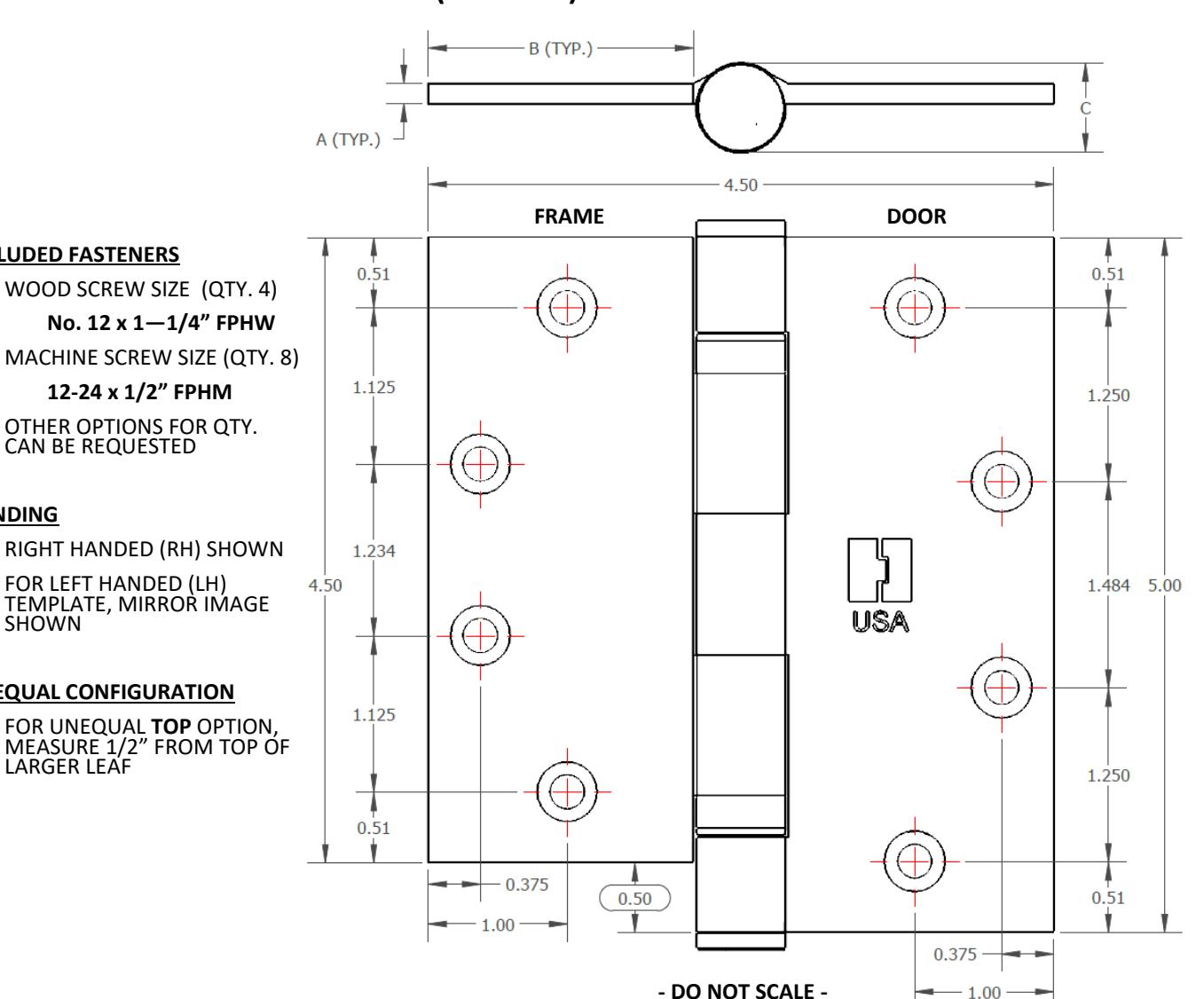

UNEQUAL LEAF BOTTOM FULL MORTISE TEMPLATE

SIZE: (5.0 & 4.5) x 4.5 RH

T-CT00181 REV. 4/14/2022

-1.00

LEAF LEAF KNUCKLE BASE INDUSTRIAL UNEQUAL SIZE THICKNESS WIDTH DIAMETER MODEL NUMBER CONFIG. (H & H) x W (A) (B) (C) .145" 1 29/32" REF. 5/8" REF. RH BB1279 A580 BOTTOM (5.0 & 4.5) x 4.5 T463 TOP 5.0 & 4.5) x 4.5 .190" 1 27/32" REF. 23/32" REF. BB1168 5.0 & 4.5) x 4.5 .145" 29/32" REF. 5/8" REF. BB1191 X350 BOTTOM 1 27/32" REF. 23/32" REF. BB1199 E367 BOTTOM 5.0 & 4.5) x 4.5 .190" LH BB1279 Ø071 воттом (5.0 & 4.5) x 4.5 .145" 1 29/32" REF. 5/8" REF. BB1168 T461 TOP (5.0 & 4.5) x 4.5 .190" 1 27/32" REF. 23/32" REF. BB1191 X351 воттом 5.0 & 4.5) x 4.5 .145" 29/32" REF. 5/8" REF. BB1199 E368 BOTTOM 5.0 & 4.5) x 4.5 .190" 27/32" REF. 23/32" REF.

INCLUDED FASTENERS

HANDING

SHOWN

12-24 x 1/2" FPHM

OTHER OPTIONS FOR QTY. CAN BE REQUESTED

FOR LEFT HANDED (LH)

UNEQUAL CONFIGURATION

139 Victor Street St. Louis, MO 63104

Hager template hinge sizes, hole spacing, and tolerances are made to conform to BHMA

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
