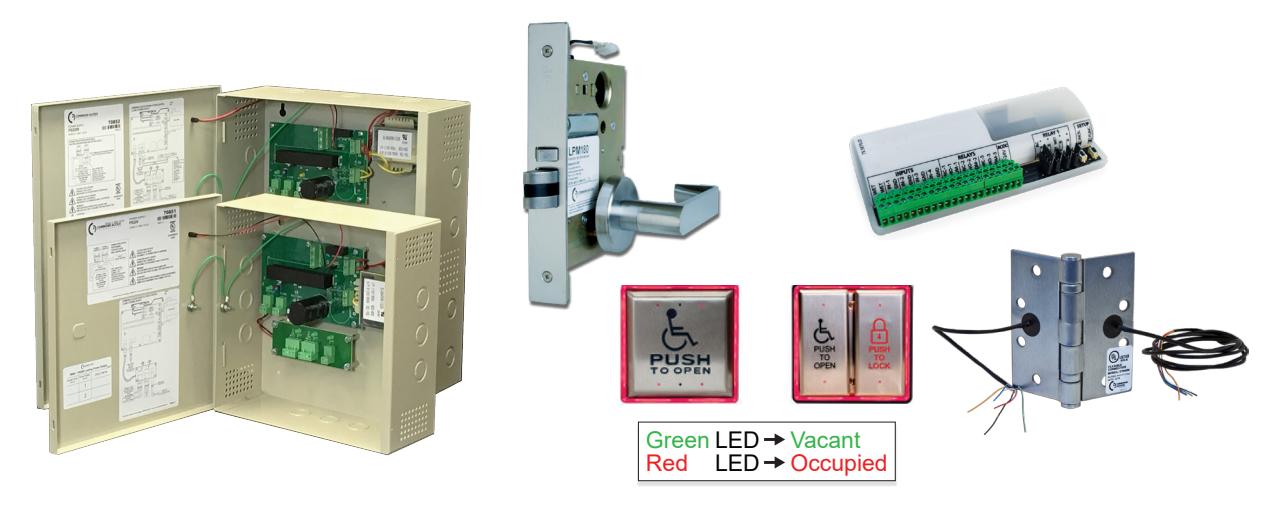

Universal Bathroom Privacy Kit
- Utilizes the Only Latch Pullback x Lever Control in a ML Lock
- Includes Access Controls Needed to Add Privacy Function to Single Occupancy Restroom
- Maintains ADA Accessibility
- Includes Wire Diagram
- 2 Packages:
Kit 1 Includes Everything + Add Your Operator of Choice. Kit 2 Includes Everything Above + A High Quality Low Energy Operator.
Optional Low Energy Operator

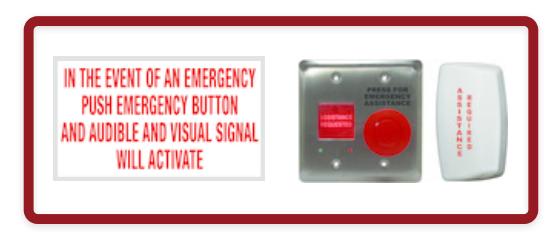

INCLUDED IN KIT 2 Add on emergency Kit
SPECIFICATIONS
LPM183/184 Mortise Lock
- Latch retraction in a mortise lock
- No special lock prep required fits standard mortise pocket prepped for a Schlage "L" series lock
- Utilizes our patented PM/PWM technology
- Circuitry allow for momentary or continuously on "push/pull" applications
- UL listed
| Latchbolt Control |
Latchbolt retracted by key outside or by inside lever. Applied
power electronically (EU) retracts latchbolt for push/pull operation. |
|||||
|---|---|---|---|---|---|---|
| Lever Control |
Outside Lever
EL - locked electronically: Applied power prohibits Outside lever from retracting latchbolt. EU - unlocked electronically: Applied power allows Outside lever to retract latchbolt. Inside Lever Always free egress. |
|||||
|
Latchbolt Solenoid
Specifications |
Operating Voltage – 24 VDC (+/- 10%)
Holding Current Amperage - 260mA@24VDC Surge Current Amperage - 1.9A for 350ms@24VDC Peak Current - 7 A @ 24VDC Solenoid coil resistance – 1.75 Ω Wire gauge: Minimum 18 gauge 300' with 18ga wire |
|||||
|
Lever Solenoid
Specifications |
Operating Voltage – 24VAC/DC (+/- 10%)
Amperage - 24v = 350mA Solenoid coil resistance – 24v = 69Ω |
|||||
PS220/220B Power Supply
- Built to run up to 2 locks, exit trim & LP motor / solenoid kits
- Robust solid-state outputs Protects system relays
- Interruption free battery back-up
- Built to last in the USA
- UL listed
| Input Voltage |
120 VAC, 60 Hz,
Input Fuse: 2 Amp Fuse @ 250VAC |
|---|---|
| Output Voltage |
2A @ 24VDC
2 Solid State I/O's - 1 A auto resetting fused outputs Power tap: .5A @ 24VDC Over-voltage protection Output Voltage trim pot |
| Battery Backup |
Regulated, independent battery charging
Automatic uninterrupted backup circuit Battery cables included Requires (2) 12VDC 7AH batteries Batteries not included |
| Mechanical Details |
Enclosure dimensions: PS220 (11" W x 11" H x 4" D). PS220B (13"
W x 15.5" H x 5" D). 1/2" & 3/4" knockouts on all sides Hinge-less removable cover; Cam lock not provided PS220B accommodates (2) 12VDC 7 aH batteries Product Weight: PS220 - 10lbs; PS220B - 14 lbs Shipment Weight: PS220 - 11lbs; PS220B - 15 lbs |
| Electrical |
Temperature range: 0 to 49° C; 32 to 120° F
Maximum humidity: 85% |
| Fire Alarm | Fire alarm link |
ETH6WH Hinge
- Easy installation
- 4' lead at no additional charge
- Non-conductive wire access cap
- UL-F listed
- 3 Year No Hassle Warranty
Latch Retraction
| Wire Quantity | Wire Gauge |
Continuous Amps
@24VDC |
Surge/Pair (.5 Sec)
Amps @24VDC |
|
|---|---|---|---|---|
| 2 | 18 | 5.0 | 16.0 | |
| 2-4 | 26 | 1.0 | N/A | |
LED Buttons
- High efficiency LED technology
- LEDs: Green = Vacant. Red = Occupied.
- Improves switch visibilty, even in daylight
- Flame and impact resistant polycarbonate construction
- Selectable 12/24V AC/DC
| Voltage | 12 or 24V AC/DC | ||||
|---|---|---|---|---|---|
| Current Draw | CM-54i/CM-55I: 130mA | ||||
| Lumia |
Red: 5760 MCD
Green: 3780 MCD |
||||
| Contact Type | 1 SPDT Form 'C' | ||||
| Contact Rating | 3 A @ 30 VDC | ||||
| Dimensions |
Surface Mount: 5-1/4" x 5-1/4" x 2-1/8"
(133mm x 133mm x 54mm) Flush Mount: 6-1/2" x 6-1/2" x 2" (165mm x 165mm x 51mm) |
||||
DS1X Auxiliary Board
| Supply Voltage | 12-24 VAC/VDC ± 10% |
|---|---|
| Power Consumption | 30-130 mA; DRY Output |
| Temperature Range* | -15-150° F |
| Dimensions | 5 1/5" (W) x 1" (H) x 2 1/5" (D) |
| Relay Hold Time | Up to 60 seconds per relay |
| Delay Between Relays | Up to 60 seconds per relay with 1/4, 1/2 and 3/4 second options |
| Housing Material | ABS Plastic |
|
Input Specifications
Inputs 1, 2, 3, 4 WET Input |
DRY contact
5-24 VAC / VDC ± 10% |
|
Contact Rating
Relay 1 (DRY) Relay 1 (WET) Relay 2 Relay 3 |
3 A @ 24 VAC / 30 VDC
1A 3A @ 24 VAC / 30 VDC 1A @ 24 VAC / 30 VDC |
* If powered by AC voltage and using WET output to convert to DC voltage and current draw of device is greater than 0.9 A, the upper temperature range is 130° F

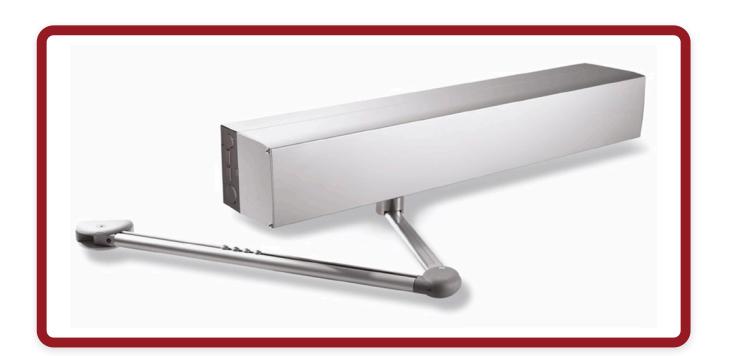

Low Energy Operator
• Header Profile: 6 1/2" x 4 1/2"
• Motor: 1/8 HP
• Header Finish: clear or dark bronze extruded aluminum
• Push Reveal: 0" to 14" • Pull Reveal: 0" to 4"
• Total Weight with 39" Header: 45 lbs • Handed: Specify left/right, push or pull
| Drive Train Gear Box | Cast Aluminum-Closed Gearbox |
|---|---|
| Single and Dual Digital Control Box | Single HA-8 w/Data, 24 VDC, 3A |
| Operating Voltage (Standard) | 115 VAC |
| Magnetic Limit Switches | Yes |
| Gear Grease | High Wear Protection |
| Motor | 1/8th HP |
| Opening/Closing Force | Adjustable 5 to 30 lbs. |
| Arm Connection | 1" Solid Spline Spindle |
| Adjustable Stop | Yes |
| Operator Switch | On-Off-Hold Open |
| Adjustable Spring Tension | Yes |
| Mechanical Clutch | Standard |
| Header Finish (Standard) | Clear, Dark Bronze, Extruded Aluminum |
| Header Finish (Optional) | Paint, Special Anodized Colors, Clad |
| Push or Pull Application | Yes |
| Easy Manual Operation | Yes |
| XP Spring | Optional |
| Surface Mounting | Yes |
| Concealed Mounting | Center Pivot, Hinge, or Offset Pivots |
| Bottom Loading | Optional |
| Push Reveal | 0" to 14" |
| Pull Reveal | 0" to 14" |
| Special Push & Pull Reveals | Call Manufacturer |
| Push & Go | Optional |
| Electric Strike Output Power | 24 VDC |
| Fire Door Compatibility | UL10C Approved |
| Circuit Protection | 3 A Fuse |
| Total Weight w/ 39" Header | 45 lbs. |
| Meets ANSI 156.19 | Yes |
How to Order
PART # EASY ORDER # DESCRIPTION
| UBPK1-FM-EUxEL | 72564 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons. |
| UBPK1-FM-EUxEU | 72565 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons. |
| UBPK1-SM-EUxEL | 72566 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons. |
| UBPK1-SM-EUxEU | 72567 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons. |
| UBPK2-FM-EUxEL-ALUM PULL | 72568 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Aluminum Pull Operator. |
| UBPK2-FM-EUxEU-ALUM PULL | 72569 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Aluminum Pull Operator. |
| UBPK2-SM-EUxEL-ALUM PULL | 72570 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Aluminum Pull Operator. |
| UBPK2-SM-EUxEU-ALUM PULL | 72571 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Aluminum Pull Operator. |
| UBPK2-FM-EUxEL-DURO PULL | 72572 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Dark Bronze Pull Operator. |
| UBPK2-FM-EUxEU-DURO PULL | 72573 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Dark Bronze Pull Operator. |
| UBPK2-SM-EUxEL-DURO PULL | 72574 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Dark Bronze Pull Operator. |
| UBPK2-SM-EUxEU-DURO PULL | 72575 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Dark Bronze Pull Operator. |
| UBPK2-FM-EUxEL-ALUM PUSH | 72595 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Aluminum Push Operator. |
| UBPK2-FM-EUxEU-ALUM PUSH | 72596 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Aluminum Push Operator. |
| UBPK2-SM-EUxEL-ALUM PUSH | 72597 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Aluminum Push Operator. |
| UBPK2-SM-EUxEU-ALUM PUSH | 72598 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Aluminum Push Operator. |
| UBPK2-FM-EUxEL-DURO-PUSH | 72599 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Dark Bronze Push Operator. |
| UBPK2-FM-EUxEU-DURO-PUSH | 72600 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Flush mounted push buttons, Low Energy Dark Bronze Push Operator. |
| UBPK2-SM-EUxEL-DURO-PUSH | 72601 |
Includes: PS220B, LPM183 w/ DPS switch Complete Lock (latch retraction EU x lever control EL), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Dark Bronze Push Operator. |
| UBPK2-SM-EUxEU-DURO-PUSH | 72602 |
Includes: PS220B, LPM184 w/ DPS switch Complete Lock (latch retraction EU x lever control EU), ETH6WH Power Transfer Hinge, Logic
Module, Illuminated Outside/Inside (Push to Open & Push to Lock) Surface mounted push buttons, Low Energy Dark Bronze Push Operator. |
| EME KIT | 72474 | Add on Emergency Annunciator Kit for UBPK |
How to Order
LPM - Trim Options
| TRIM | LEVERS | FINISHES | DIMENSIONS |
|---|---|---|---|
| L | 3 | 605 |
Diameter
L = 2-7/16" |
| L_B | 6 | 612 |
LB= 2-3/4"
ESC= 1-3/4" x 8" |
| ESC | 7 |
613
625 |
|
| ESC | 17 | 626 |
Example:
UBPK1-FM-EUxEL L6B 626 |
ETH - Energy Transfer Hinge Options
| WIRES | SIZE/HANDING | ||||
|---|---|---|---|---|---|
| 6WH - (2/18ga+4/28ga) |
4.0 x 4.0 (SQ or RC)
4.5 x 4.0 (SQ or RC) 4.5 x 4.5 5.0 x 4.0 5.0 x 4.5 |
5.0 x 5.0
4.5 x 6.0 (WT) 5.0 x 6.0 (WT) LH - Left Hand RH - Right Hand |
|||
| FINISHES (STEEL BASE METAL) | STYLES | ||||
|
600/P - Prime Coat
605-632/3 - Bright Brass 606-633/4 - Satin Brass 609-638/5 - Satin Brass Antique 611-637/9 - Bright Bronze 612-639/10 - Satin Bronze |
641/10A - Antique Bronze Laq.
613-640/10B - Anti. Bronze Oil 619-646/15 - Satin Nickel 625-651/26 - Bright Chrome 626-652/26D - Satin Chrome 693/L1 - Black |
3SW - 3 Knuckle Standard Weight
3HW - 3 Knuckle Heavy Weight 5SW - 5 Knuckle Standard Weight 5HW - 5 Knuckle Heavy Weight CATPIVOT - 3/4" Offset Pivot 5SWSC - CAT Swingclear Standard weight (specify straight o |
|||
Example
| ТҮРЕ | WIRE | SIZE | FINISH | STYLE | ١ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ETH | + | 6WH | + | 4.5 x 4.5 | + | 693/L1 | + | 3HW | = | ETH6WH4545-693L1 3HW |

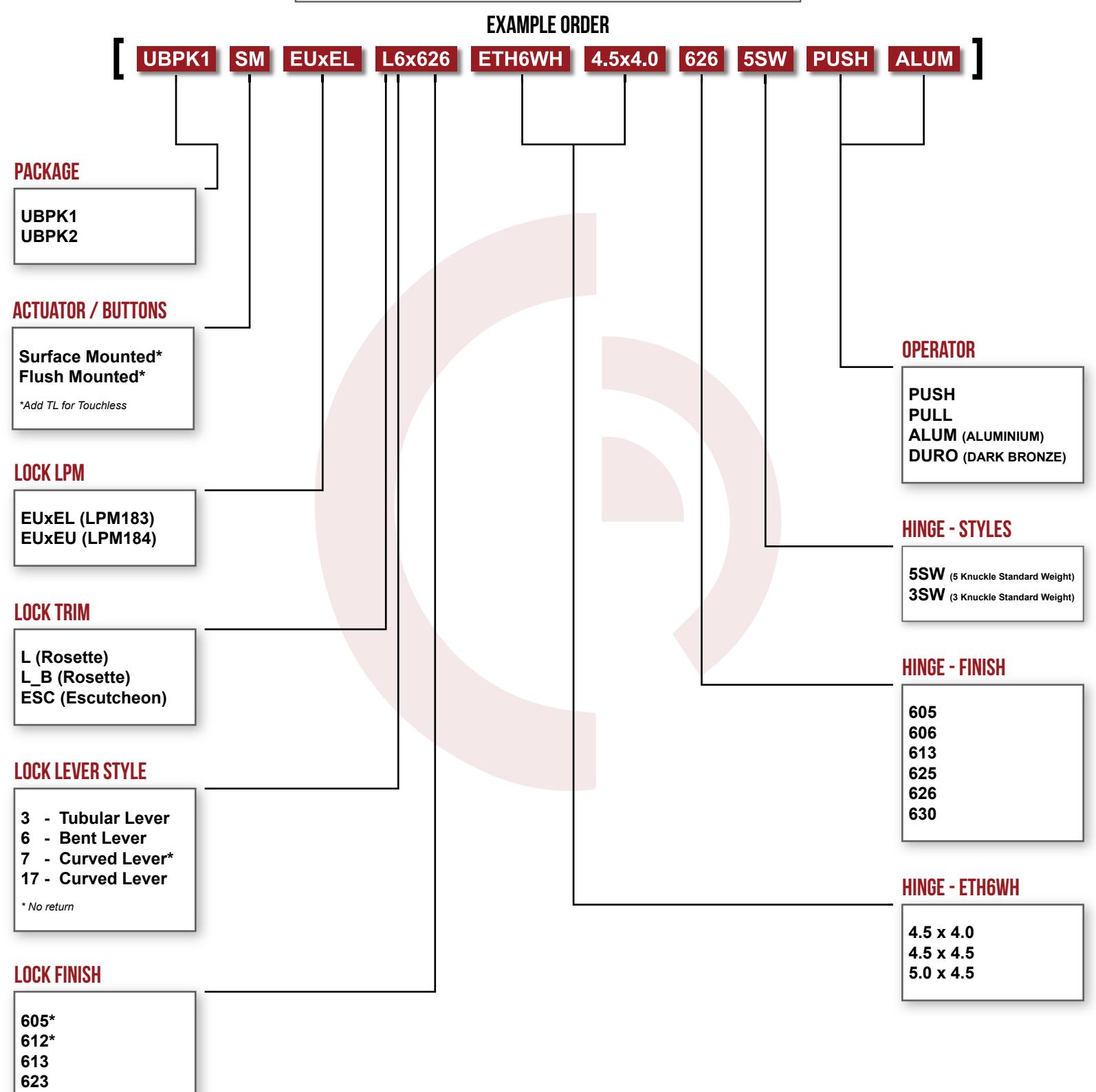

How To Order UNIVERSAL BATHROOM PRIVACY KIT
626
* Call to confirm availability
