The Outdoor Electric Strike Solutions

EN Series

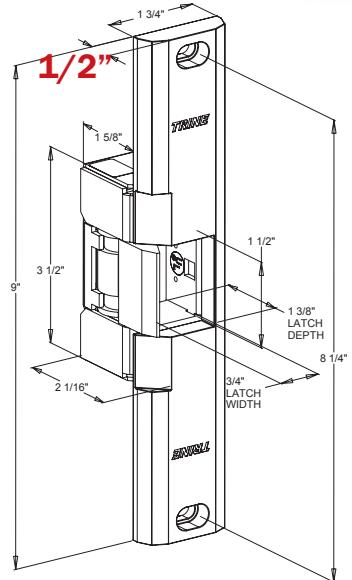

EN850 - GREAT FOR OUTDOOR GATES

For new or replacement installations in wood or metal single door jambs. Use with surface mounted rim exit devices with up to 1" throw. 1/2" thick face plate.

(Not UL 10C Listed)

Works with Rim Panic Exit Devices.

850-32D

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 850-US3 (Bright Brass - BHMA605)
• 850-US4
• BHMA606) • 850-US10
• BHMA612)
• 850-US10B
• (Dark Bronze BHMA613) 850-32
• (Polished Stainless BHMA629)

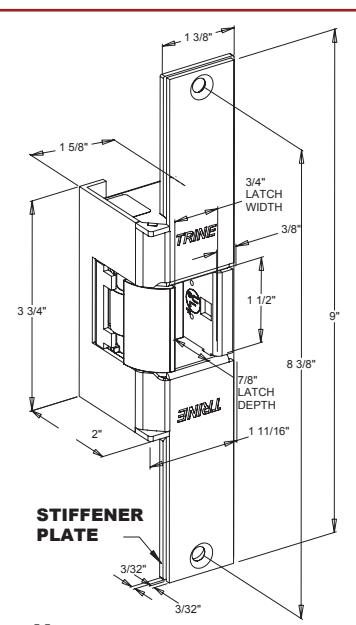

EN950 -- FITS FOLGER ADAMS® 310-2 CUTOUT

For new or replacement installations in metal or wood jambs. Use with mortise exit devices, mortise locks without dead bolts and cylindrical locksets with up to 7/8" throw. Based on 1/8" door gap.

Latch Shim Kit provided for horizontal cavity adjustment.

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 950-US3
• BHMA605)
• 950-US4
• BHMA606) • 950-US10
• (Satin Bronze BHMA612)
• 950-US10B
• (Dark Bronze BHMA613)
• 950-32 (Polished Stainless - BHMA629)

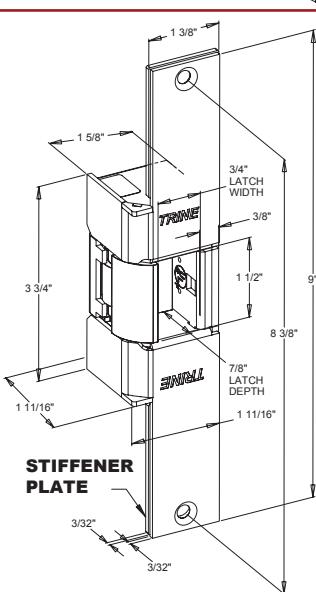

EN960 -- FITS FOLGER ADAMS® 310-2 3/4" CUTOUT

For new or replacement installations in metal or wood jambs. Use with mortise exit devices, mortise locks without dead bolts and cylindrical locksets with up to 7/8" throw. Based on 1/8" door gap.

Latch Shim Kit provided for horizontal cavity adjustment.

960-32D

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 960-US3
• (Bright Brass BHMA605)
• 960-US4 (Satin Brass
• BHMA606)
• 960-US10
• BHMA612)
• 960-US10B (Dark Bronze - BHMA613)
• 960-32

(Polished Stainless - BHMA629)
