The Outdoor Electric Strike Solutions

EN Series

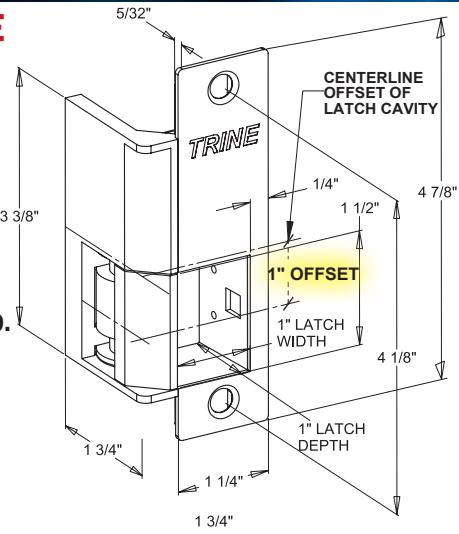

For new or replacement installations in metal jambs. Use with mortise lock latchbolts with up to 7/8" throw without relocating centerline. Based on 1/8" door gap.

Latch Shim Kit provided for horizontal cavity adjustment.

Designed to work with Schlage L Series, Sargent 7700, 8100. & Yale 8700

430-32D

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 430-US3
• (Bright Brass BHMA605)
• 430-US4
• (Satin Brass BHMA606) • 430-US10
• (Satin Bronze BHMA612)
• 430-US10B
• (Dark Bronze BHMA640)
• 430-32 (Polished Stainless – BHMA629)

The EN430 is handed, please specify LH or RH

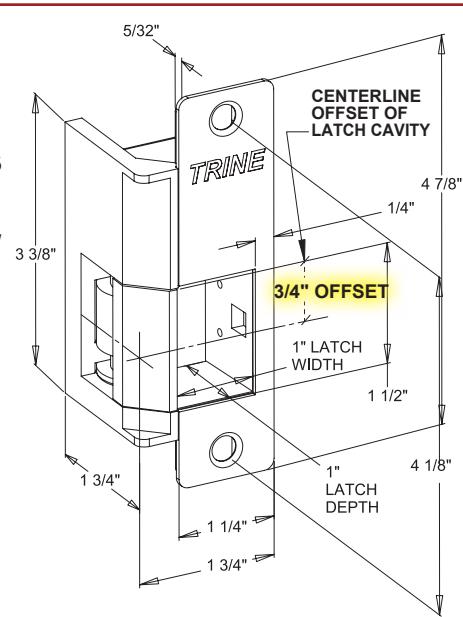

EN435 - CAVITY CENTERLINE OFFSET 3/4"

For new or replacement installations in metal jambs. Use with mortise lock latchbolts with up to 7/8" throw without relocating centerline. Based on 1/8" door gap.

Latch Shim Kit provided for horizontal cavity adjustment.

Designed to work with Arrow, Falcon, Sargent 7800, 8200, 9200, Yale 8800

Factory tested by Best^® to work with the 45H Series.

435-32D

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 435-US3
• (Bright Brass BHMA605)
• 435-US4 (Satin Brass - RHMA606)
• 435-US10
• (Satin Bronze BHMA612)
• 435-US10B
• (Dark Bronze BHMA613) 435-32 (Polished Stainless BHMA629)

The EN435 is handed, please specify LH or RH

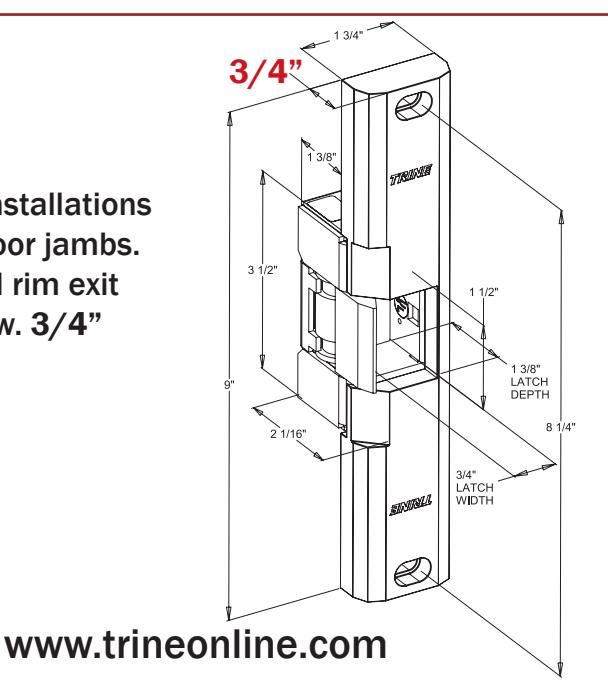

EN800 - GREAT FOR OUTDOOR GATES

For new or replacement installations in wood or metal single door jambs. Use with surface mounted rim exit devices with up to 1" throw. 3/4" thick face plate.

(Not UL 10C Listed)

Works with Rim Panic Exit Devices

800-320

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 800-US3
• (Bright Brass BHMA605)
• 800-US4
• (Satin Brass BHMA606) • 800-US10
• (Satin Bronze BHMA612)
• 800-US10B
• (Dark Bronze BHMA613) • 800-32

(Polished Stainless – BHMA629)
