THE LOW CURRENT DRAW SOLUTION FOR RIM PANIC EXIT DEVICES
The 4850PoE & LCD
Low Current Draw means smaller or no additional power supplies required for most installations.
| Electric Characteristics | |||||
|---|---|---|---|---|---|
| ltem | Voltage | Amps | Watts | Duty | Sound |
| 4850PoE | 12DC | 0.260 | 3.12 | Intm./Cont. | Silent |
| 4850LCD | 24DC | 0.135 | 3.24 | Intm./Cont. | Silent |
| Other surface mounted | Don't Forge | et Amperage | |||
| strikes start at: Drop! Comper | mpensate | ||||
| 12DC | 0.450 |
J.
|
w Current | ||
| 24DC | 0.250 | 6.00 Draw | Strike. | ||

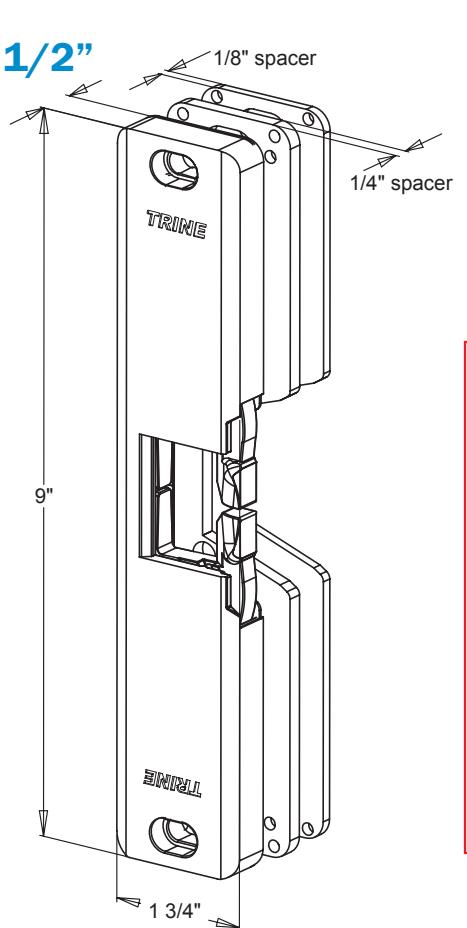

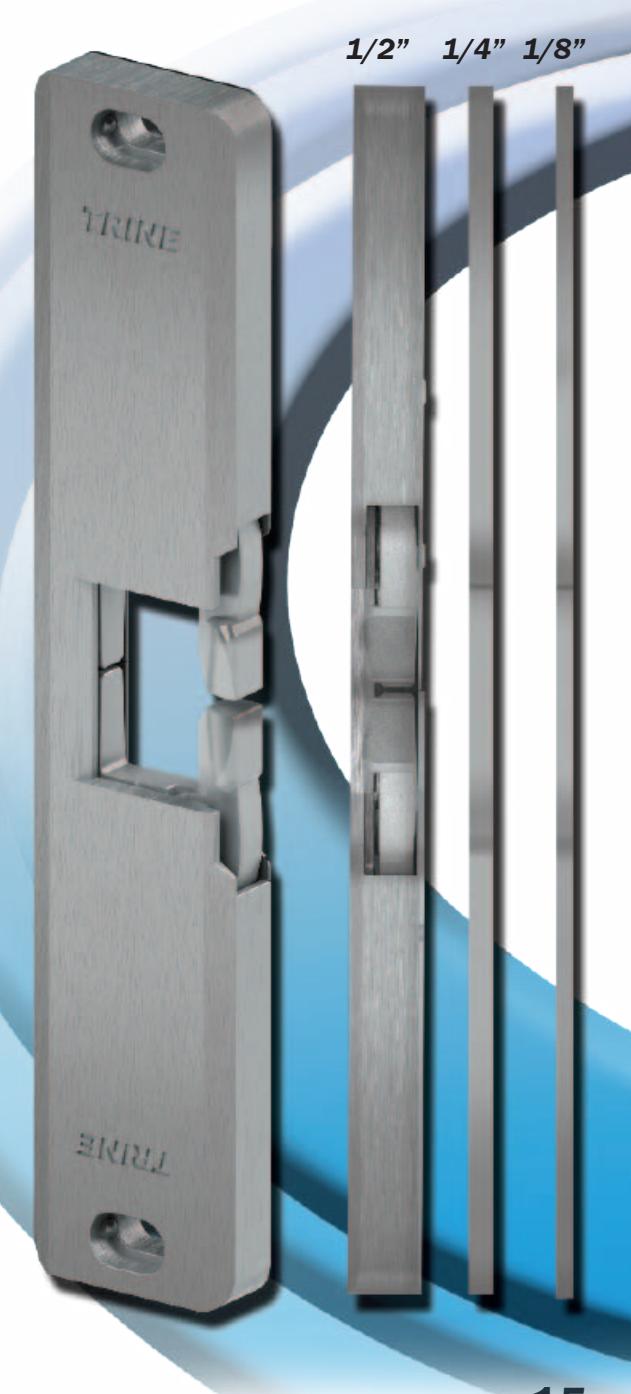

1/4" & 1/8" Spacer included
Dimensions for: 4850, 4850LCD,
and 4850PoE (are the same)
4850PoE-32D
(Satin Stainless Steel - BHMA630)
The following finishes are:
- 4850PoE-US3
- (Bright Brass BHMA605) 4850PoE-US4
- (Satin Brass BHMA606)
- 4850PoE-US10
- (Satin Bronze BHMA612) 4850PoE-US10B
- (Dark Bronze BHMA640) • 4850PoE-32
- (Polished Stainless BHMA629
- ***Replace PoE with LCD when ordering the 24DC model***
www.trineonline.com
