STOP BUYING LARGER POWER SUPPLIES

START BUYING LOWER

CURRENT DRAW STRIKES

INTRODUCING THE 4850-PoE & 4850-LCD BOTH UNITS OFFER THE LOWEST CURRENT DRAW AMONG SURFACE MOUNTED ELECTRIC STRIKES.

START 2012 WITH A POWERFUL RESOLUTION...

SWITCH TO TRINE AND INSTALL ONE TODAY.

What will you do with lower current draw

• Reduce your power supply Size to save money. Why buy a 4 Amp. supply when 2 Amp. will do the job?
• Add more devices to your system.
• Reduce the number of installations that require a separate power supply for door hardware, i.e. PoE systems and automatic door operators.

TRINE ®	4850-PoE	.260 A	12DC	3.12 W
TRINE ®	4850-LCD	.135 A	24DC	3.24 W
OTHER SURFACE MOUNTED STRIKES START AT		.450 A	12DC	5.40 W
		.250 A	24DC	6.00 W

4 SIZES -- 1 BOX THE COMPETITION CAN'T MATCH THIS FLEXIBILITY

4850-PoE & 4850-LCD -- Low Current Draw

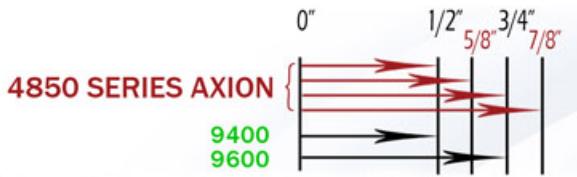

TOTAL THICKNESS COMPARISON

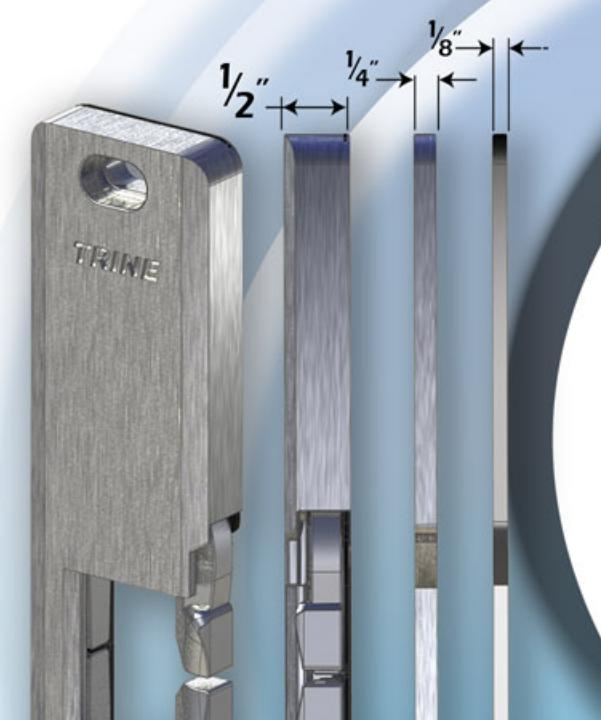

The Axion 4850 provides 4 sizes right out of the box!

1/2" SPACER Clearance for a 7/16 dia. head of a blind threaded insert with a #1/4-20 thread for aluminum frame applications.

FEATURES:

• + ONLY .260 mA draw at 12DC .135 mA draw at 24DC
• → NO CUTTING OF THE FRAME
• + Allows up to a 1" latch throw for maximum flexibility.
• + BHMA Grade 1 Electric Strike

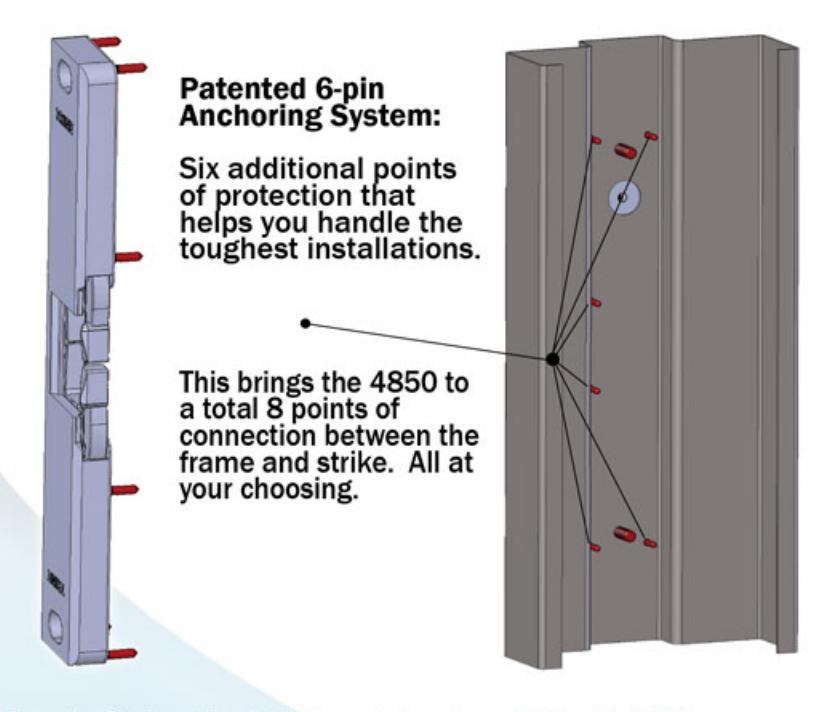

Patented One Piece Locking Mechanism A simple and more durable model of strike providing the highest level of performance.

How to Order; (for 24DC model replace POE with LCD)

Finishes:

4850-P0E-32D (Satin Stainless Steel – BHMA630)

The following finishes are:

• 4850-POE-US3 (Bright Brass BHMA605)
• 4850-POE-US4 (Satin Brass BHMA606)
• 4850-POE-US10 (Satin Bronze -- BHMA612)
• 4850-POE-US10B (Dark Bronze BHMA640)
• 4850-POE-32 (Polished Stainless Steel BHMA629)
