THE LOW CURRENT DRAW SOLUTION FOR RIM PANIC EXIT DEVICES

The 4850PoE & LCD

Low Current Draw means smaller or no additional power supplies required for most installations.

Electric Characteristics
ltem	Voltage	Amps	Watts	Duty	Sound
4850PoE	12DC	0.260	3.12	Intm./Cont.	Silent
4850LCD	24DC	0.135	3.24	Intm./Cont.	Silent
Other surface mounted				Don't Forge	et Amperage
strikes start at: Drop! Comper					mpensate
	12DC	0.450	J. 1 U		w Current
24DC		0.250	6.00 Draw		Strike.

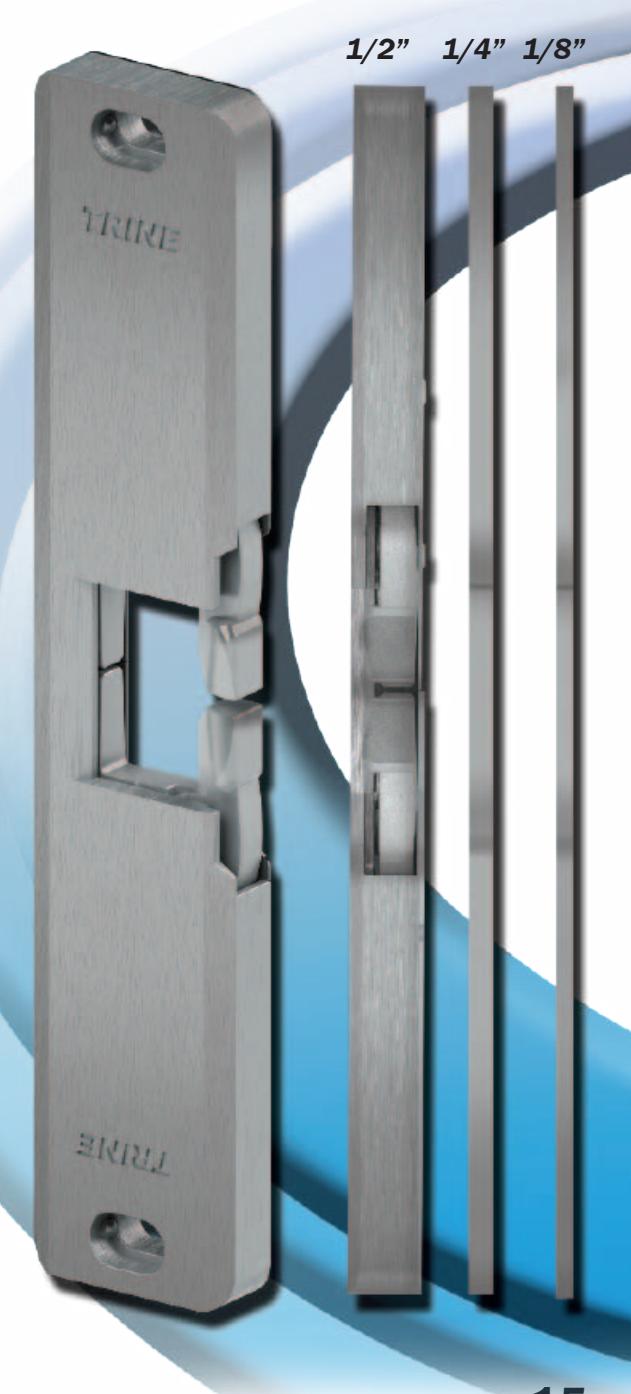

1/4" & 1/8" Spacer included

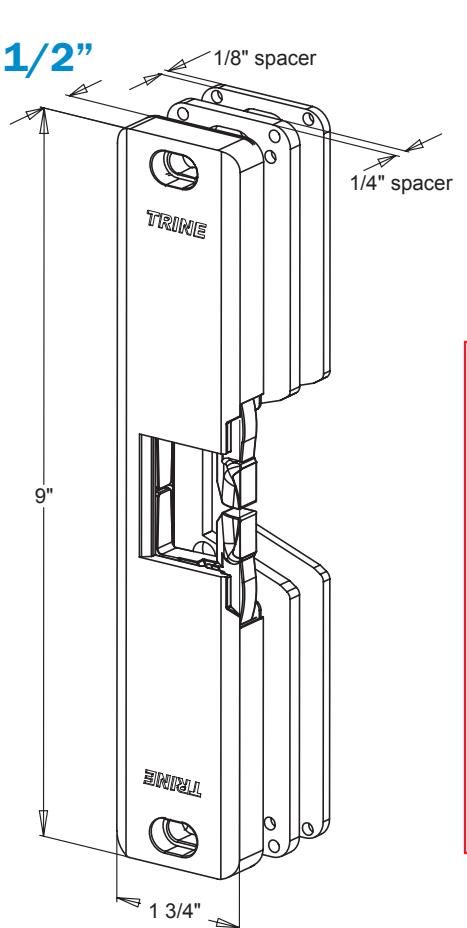

Dimensions for: 4850, 4850LCD,

and 4850PoE (are the same)

4850PoE-32D

(Satin Stainless Steel - BHMA630)

The following finishes are:

• 4850PoE-US3
• (Bright Brass BHMA605) 4850PoE-US4
• (Satin Brass BHMA606)
• 4850PoE-US10
• (Satin Bronze BHMA612) 4850PoE-US10B
• (Dark Bronze BHMA640) • 4850PoE-32
• (Polished Stainless BHMA629
• ***Replace PoE with LCD when ordering the 24DC model***

www.trineonline.com
