THE INSTALLATION SOLUTION FOR 4800 SERIES STRIKES FOR 4800 SERIES STRIKES FOR 4800 SERIES STRIKES

"Feel" the door with the strike on the frame then drill.

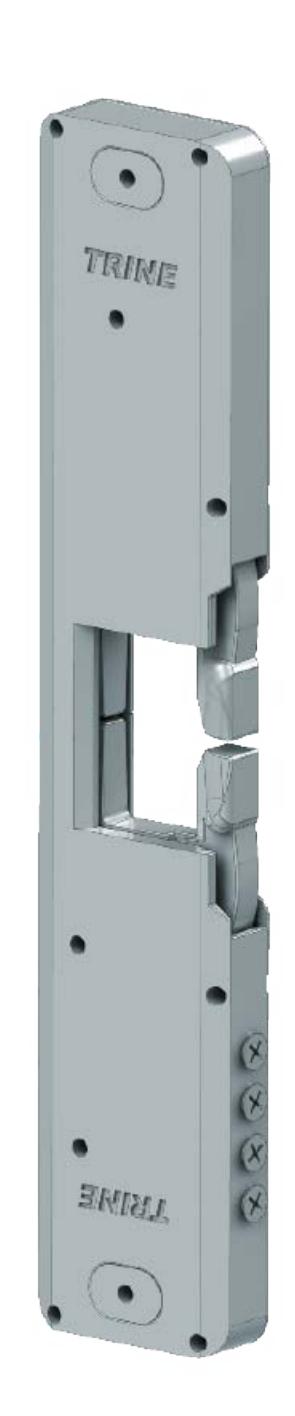

4850-ITL installation tool has magnets installed which allows it to attach to metal frames, allowing you to:
- Adjust and center the strike before ever drilling a hole eliminating the mistakes.
- $\circ$ Increase your installation speed on those larger jobs.

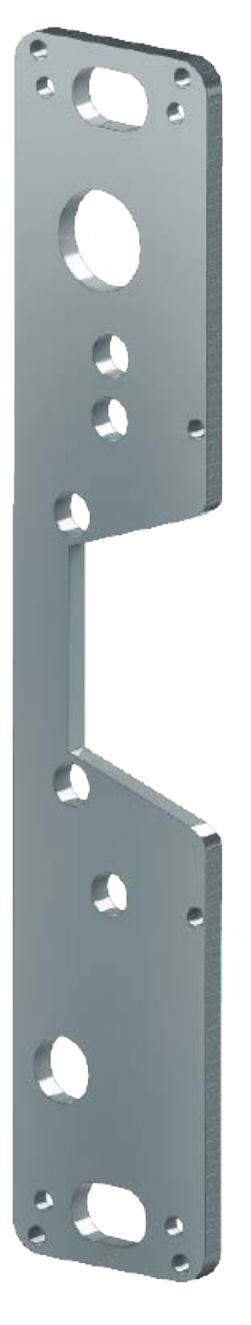

1/4" Spacer included, so the tool becomes 3/4" thick, and is also magnetized. (screws on side anchor the spacer to the tool)

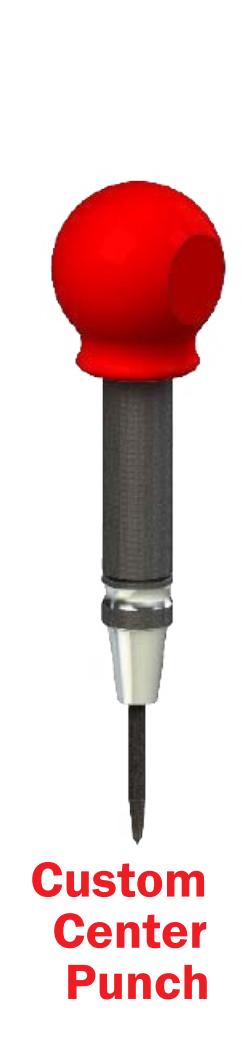

Included custom center punch makes precise marks on the frame for drilling. Marks all Anchor pin holes, mounting screws, power, and optional LB sensor.
Patent Pending

To get your 4850-ITL, contact your local Trine Representitive or call the factory direct at:

718.829.2332

To really see the POWER of the 4850-ITL watch our video...

Search "4850ITL" on Youtube or go to: trineonline.com/4850itl.php
