Trine 4801 Bolt Strike Catalog

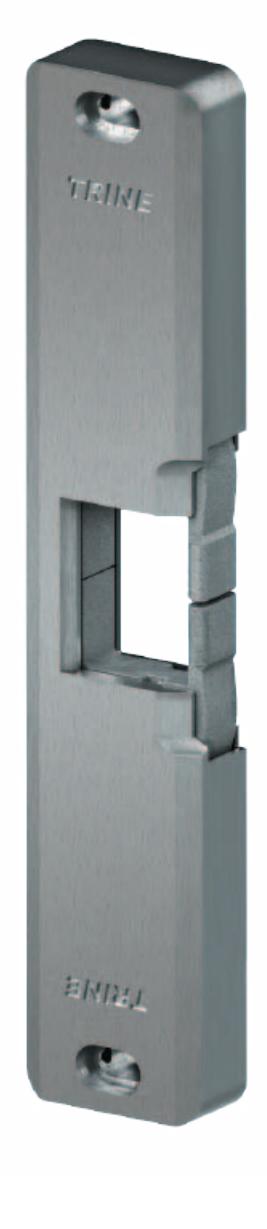

4801 - "Bolt" Strike

• For use with the Yale Squarebolt® or Corbin Russwin Securebolt™ in new or replacement installations with wood or metal door frames.
• Use with surface mounted rim device with up to 1" throw.
• Cavity Opening Height: 117/32" Width: 15/32"

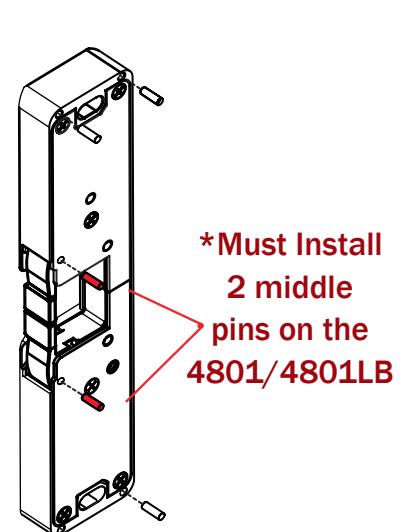

• 6-Pin Anchor system provided to handle the toughest installations.
• Electronics and BHMA rating same as the 4800 see facing page.

4801-32D (Satin Stainless Steel - BHMA630)

The following finishes are:

• 4801-US3 (Bright Brass BHMA605)
• 4801-US4 (Satin Brass BHMA606)
• 4801-US10 (Satin Bronze BHMA612)
• 4801-US10B (Dark Bronze BHMA613)
• 4801-32 (Polished Stainless Steel BHMA629)

See Page 18 for options.

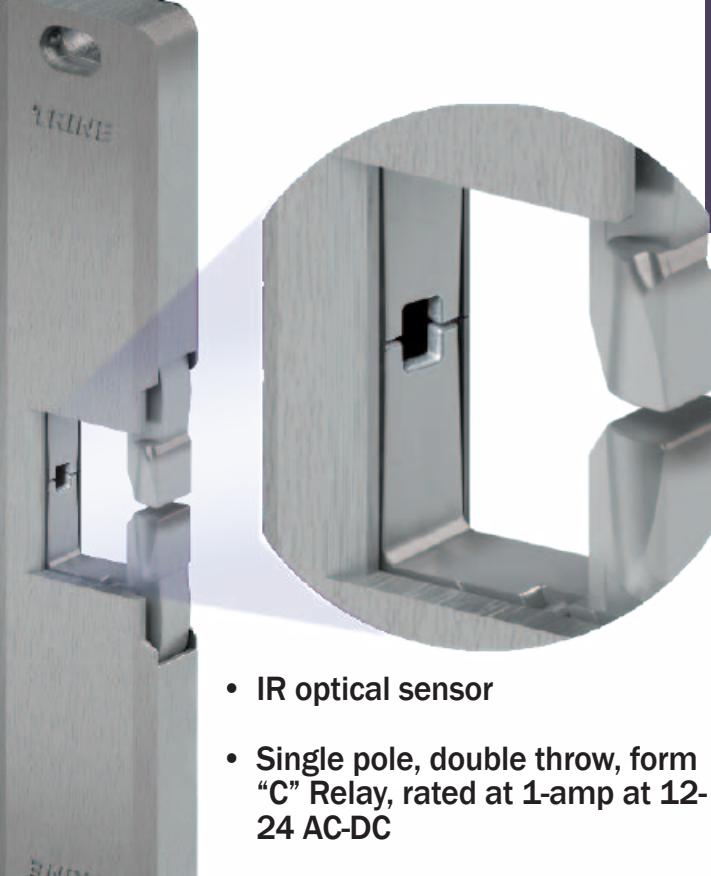

Latchbolt Monitoring (LB Option)

• N/O and N/C relay contacts
• Module power source
• 12-24 DC
• Current consumption is: 12v: standby 12.7ma activate 22.8ma 24v: standby 19.4ma activate 34.4ma
• All other features are the same as the base model.

Add "LB" to any 4800 series electric strike

Example:

• 4800LB-32D
• 4850LB-10B
• 4801LB-32
