4800 Series Accessories & Patented Anchoring System

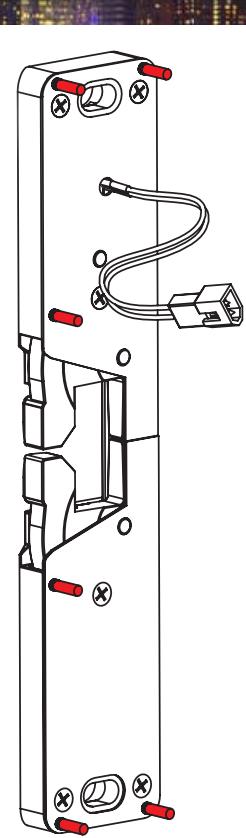

PATENTED ANCHORING SYSTEM

• Included in every 4800 series strike.
• Prevents strike from shifting on the frame for the most secure installation.
• Two center pins suggested for installs in high traffic locations.
• Check out our new Installation tool, the 4850ITL on page 14.

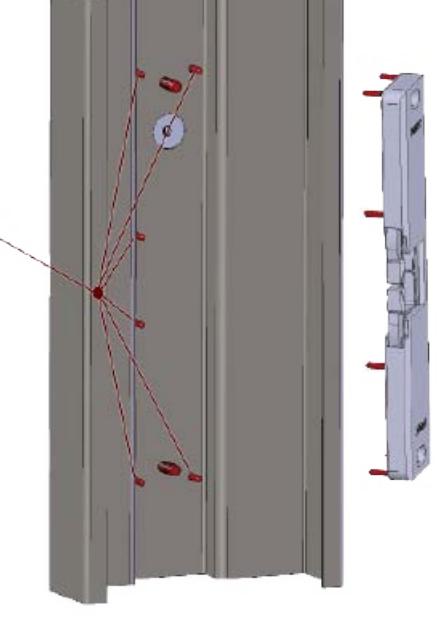

• The Anchoring System provides six additional points of connection and helps you to handle the toughest\ninstallations.

This brings the 4850 to a total 8 points of connection between the frame and strike.

THE CONFIGURATION IS YOUR CHOICE

4800 Series Accessories

MWH-5

REMOVABLE MULLION WIRE HARNESS FOR 4800 SERIES ELECTRIC STRIKES

Contains:

• (1) 5' Wire for mullion with male/female connectors.
• (1) Male connector & (1) Female connector.
• (1) Mullion cap, & (1) Wire adhesive.

• (4) Wire caps.

• (1) Wire tie.

4850-AK: ACCESSORIES KIT

Contains:

• (1) Fail safe plunger with spring & (1) Fail safe cam.
• (6) Anchoring pins.
• (1) Wire connector, (2) Wire caps, & (2) Mounting screws.

4800-AK: ACCESSORIES KIT

Contains:

• (1) Fail safe plunger with spring.
• (6) Anchoring pins.
• (1) Wire connector, (2) Wire caps, & (2) Mounting screws.

4800-SS: 1/8" SPACER PLATE

Fits all 4800 Series Electric Strikes

4850-SS: 1/4" SPACER PLATE

Fits all 4800 Series Electric Strikes
