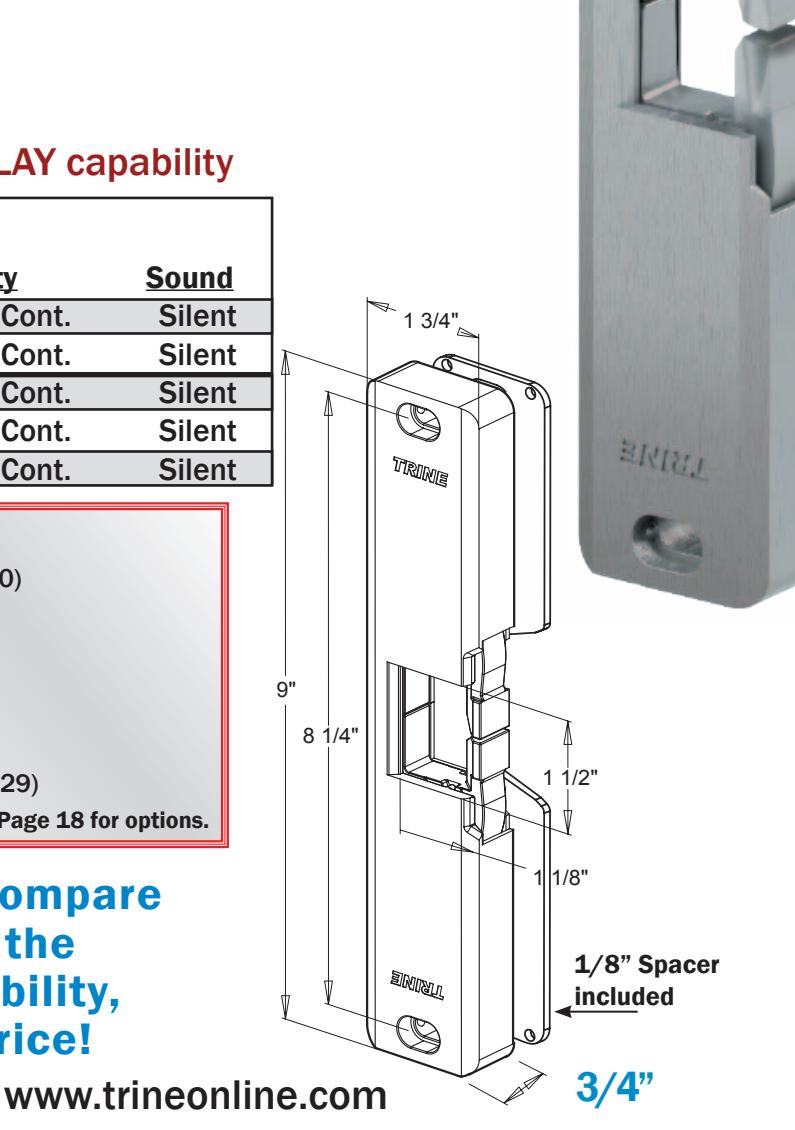

1/8"
- For use with surface mounted rim exit devices with up to 1" throw. For use in new or replacement installations in wood or metal door frames and tight installs.
- · No cutting of the frame
- Comes with Trines Patented 4-Pin Anchoring System for strength and stability. (See page 18 for details)
- Cavity is completely open which means the 4800 allows for an incremental depth up to a 1" throw - Competitor back plates do not allow for this versatility.
- Built-in electronics automatically allow 11 through 28 AC and DC Voltage input – with surge and kickback protection.
- Contains a one piece locking mechanism with one solenoid. Less parts mean less problems.
- Fail-safe/Fail-secure Field selectable.
-
BHMA Grade 1 Electric Strike:
- + 1,500,000+ Life cycles
- +3.000+ lbs. Holding Force.
Electronics allow for PLUG and PLAY capability
| Electric Characteristics | |||
|---|---|---|---|
| Voltage | Pull In/Hold Amps | Duty | Sound |
| 12DC | 0.566/0.217 | Intm./Cont. | Silent |
| 24DC | 0.253/0.099 | Intm./Cont. | Silent |
| 12AC | 0.509/0.181 | Intm./Cont. | Silent |
| 16AC | 0.405/0.149 | Intm./Cont. | Silent |
| 24AC | 0.215/0.087 | Intm./Cont. | Silent |
4800-32D (Satin Stainless Steel – BHMA630)
The following finishes are:
- 4800-US3 (Bright Brass BHMA605)
- 4800-US4 (Satin Brass BHMA606)
- 4800-US10 (Satin Bronze BHMA612)
- 4800-US10B (Dark Bronze BHMA613)
- 4800-32 (Polished Stainless Steel BHMA629)
See Page 18 for options.
We challenge you to compare our strike against the competition on reliability, adaptability, and price!
