OUR ONE BOX SOLUTIONS DEFINE FLEXIBILITY

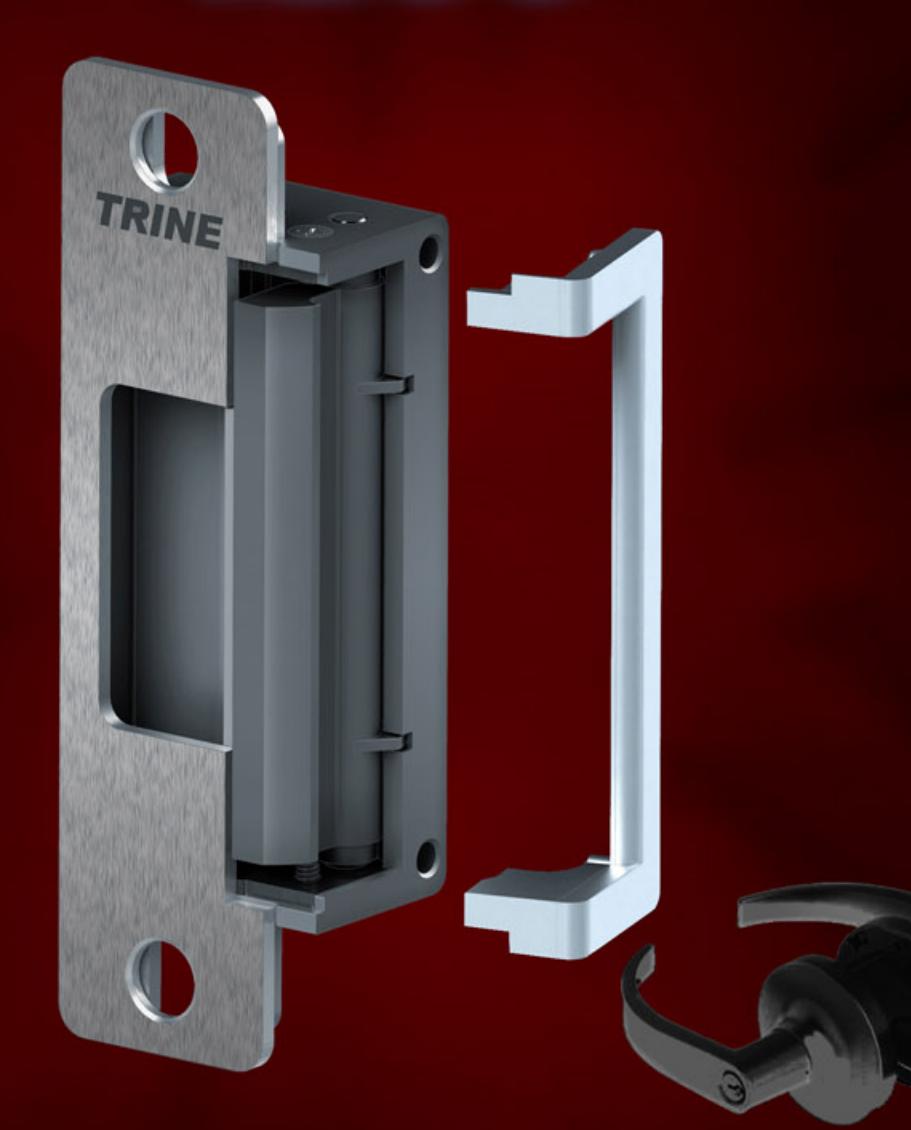

4200

THE CYLINDRICAL & DEADLATCH SOLUTION

FLEXIBLE FUNCTION

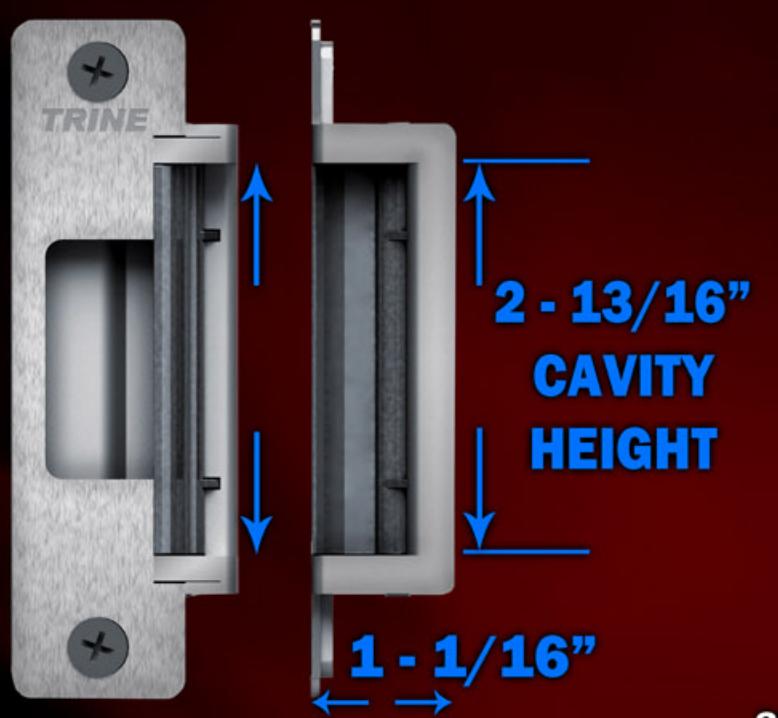

Tall cavity solves door sag problems. (tallest in its class)

1 - 1/16 shallow backset solves frame depth problems.

Strike latch designed to solve aux. latchpin problems.

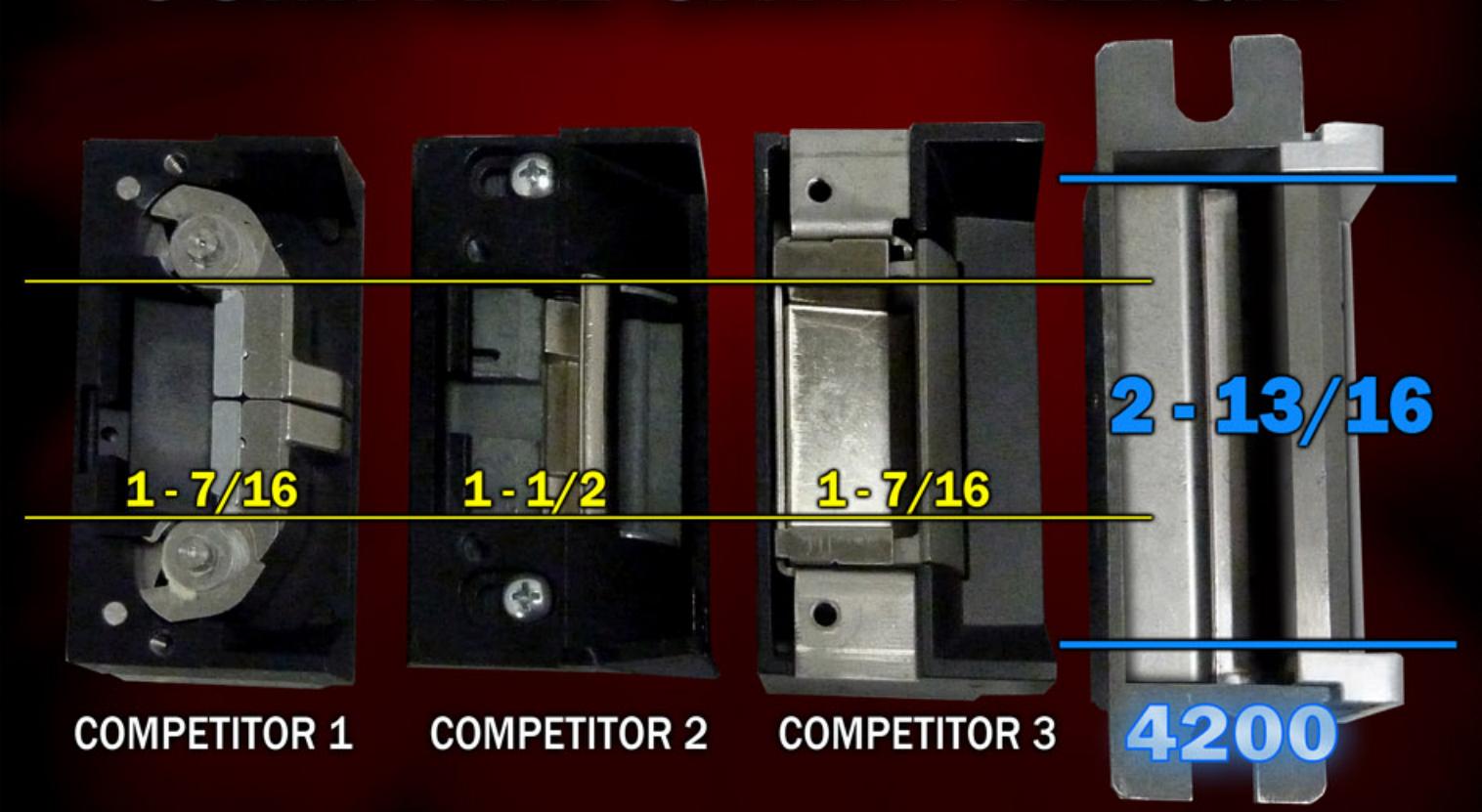

COMPARE CAVITY HEIGHT

FLEXIBLE FINISH

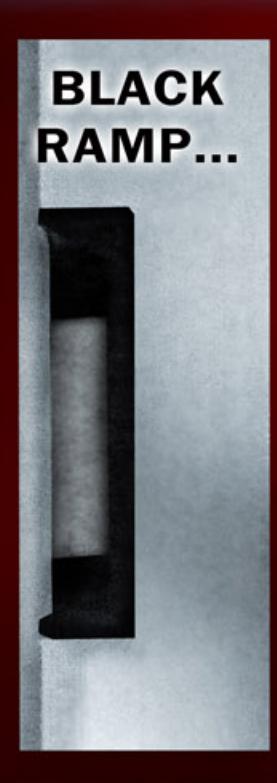

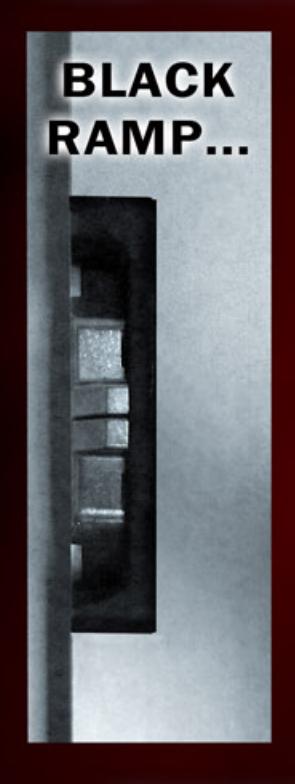

Henry Ford once said, "you can have any color you want, so long as it's black."

AND THE COMPETITION AGREES.

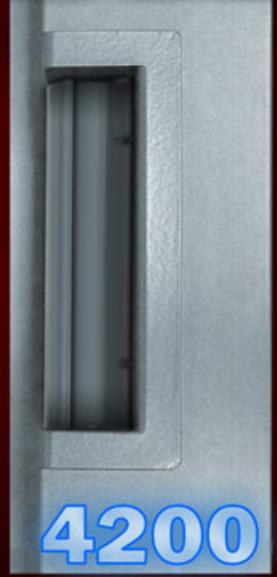

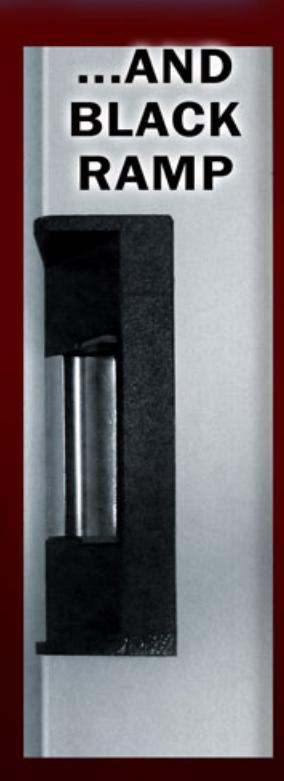

Aluminum Fascia! Or white, or green or dark bronze. Your Choice

CHANGE COLORS ON THE FLY WITH OUR CK SYSTEM

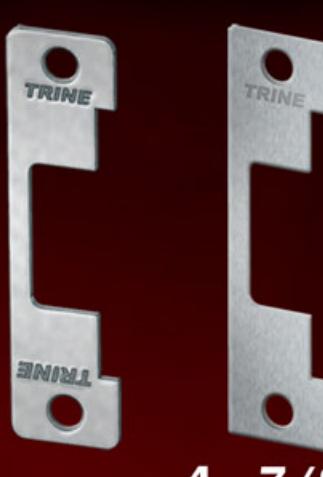

FLEXIBLE FACEPLATES

GRADE 1 ELECTRIC STRIKE

ALL 4 FACEPLATES INCLUDED

FACEPLATES AVAILABLE IN 6 FINISHES

4 - 7/8"

6 - 7/8"

7 - 15/16"

FOUR FACEPLATES COVER MOST INSTALLATIONS

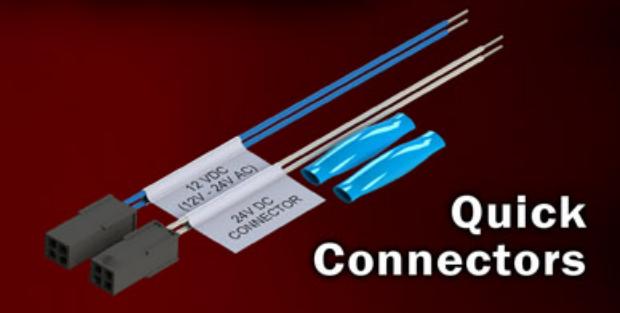

FLEXIBLE POWER

VOLTAGE:

12 & 24 DC / 12-24 AC

Low Current Draw

.240 Amps @ 12DC

.114 Amps @ 24DC

FLEXIBLE FINISHES

6 FINISH OPTIONS:

4200-32D Stainless Steel Faceplates with a Black Fascia - Use with the CK System ->

4200-ALUM Aluminum Faceplates & Fascia

4200-BLK Black Faceplates & Fascia

4200-DKBZ Dark Bronze Faceplates & Fascia

Green Faceplates & Fascia 4200-GRN 4200-WHT White Faceplates & Fascia

Add "RS" for Fail-safe Model (ex: 4200RS-32D)

USE OUR CK SYSTEM WITH THE 32D FINISH FOR MAXIMUM FLEXIBILITY.

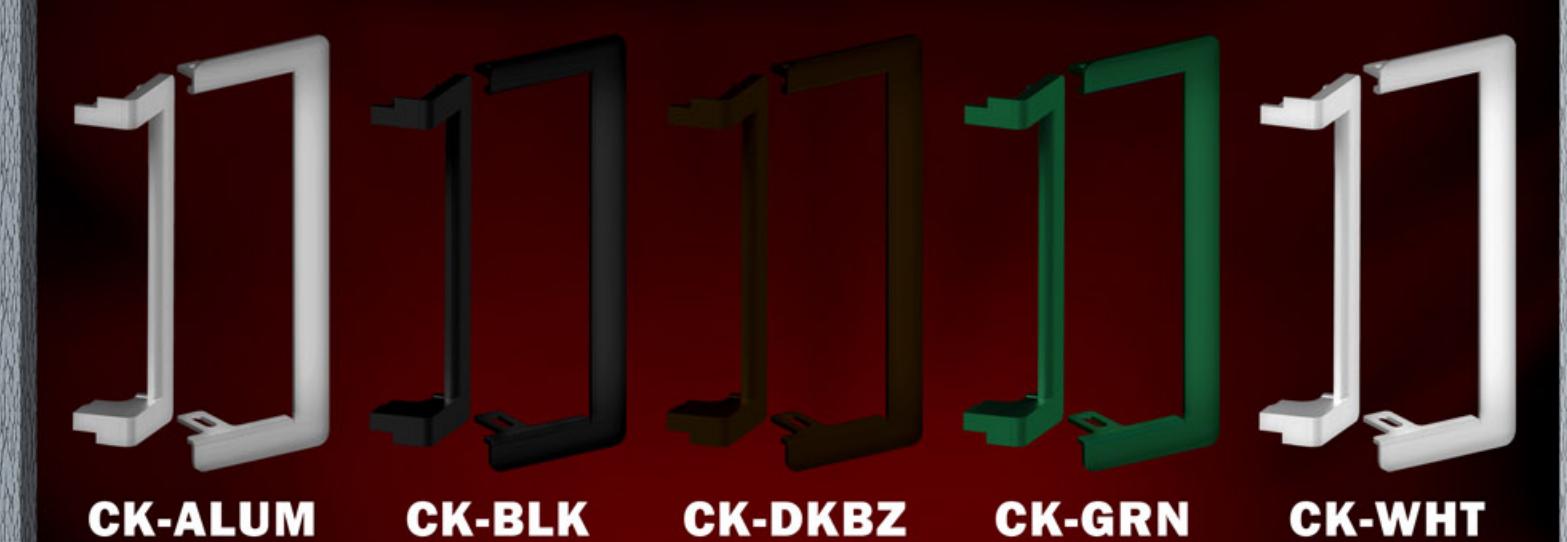

CK-ALUM Aluminum Fascia/Trimskirt

CK-BLK Black Fascia/Trimskirt

CK-DKBZ Dark Bronze Fascia/Trimskirt

CK-GRN Green Fascia/Trimskirt CK-WHT White Fascia/Trimskirt

This pack includes 4 Fascia CK-PK

& Trimskirt colors (except black)
