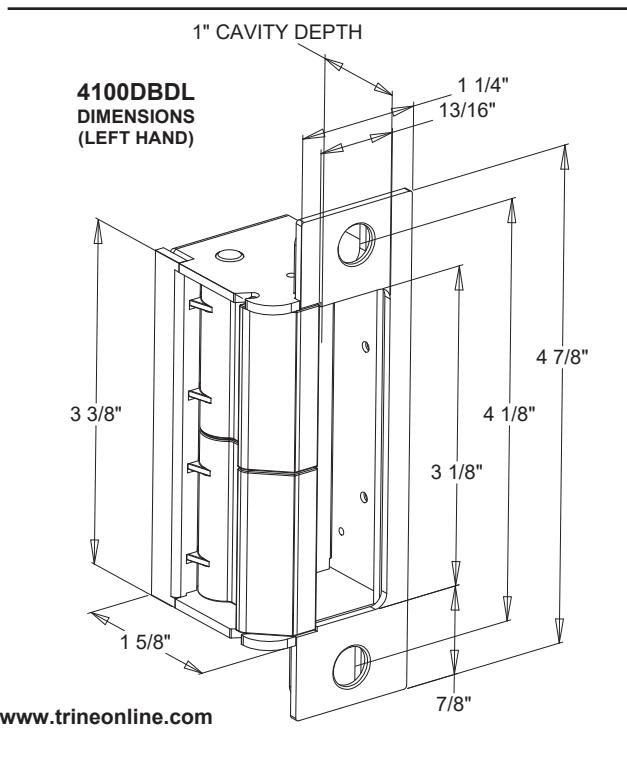

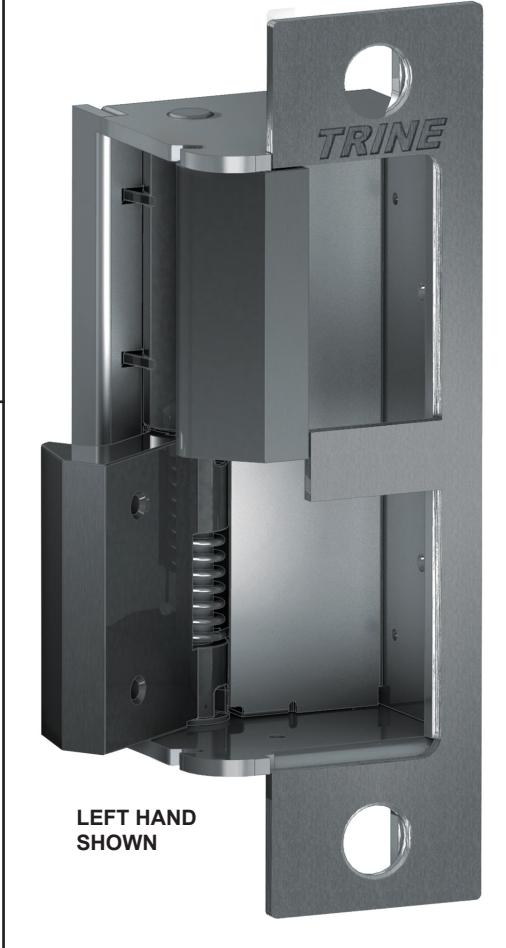

4100DBDL

4 - 7/8" ANSI CUTOUT SPLIT LATCH

ELECTRIC STRIKE

• 2 separate latches open and close independently.
• 4 faceplates included
• 12 & 24DC, 12-24 AC
• 1 Trim Skirt Provided (32D Finish)
• Strong: Exceeds 3,250 lbs. of Holding Force
• Durable: Exceeds 1,000,000 Life Cycles
• Low Current Draw
• USPT #US20110241361

Standards:

• WH recognized 3-hour fire rated -- UL10C, Fire Tests of Door Assemblies.
• BHMA Grade 1: ANSI/BHMA A156.5
• UBC 7-2, Uniform Building Code.
• CAN4 S104, Standard Method for Fire Tests of Door Assemblies.
• NFPA 252 Issue: 1999/01/01 Standard Methods of Fire

Tests of Door Assemblies.

NOTE: WH fire listing is void when using fail safe action.

4100DBDL ELECTRICAL CHARACTERISTICS:

	Current	Power
Voltage	Draw	Consumption	Resistance
12DC	.240 Amps	2.90 Watts	50 Ohms
24DC	.114 Amps	2.74 Watts	210 Ohms
12AC @ 50-60Hz .210 Amps		2.50 Watts	50 Ohms
16AC @ 50-60Hz .281 Amps		4.48 Watts	50 Ohms
24AC @ 50-60Hz .420 Amps		10.08 Watts	50 Ohms

per latch/mechatwo mechanisms and Amperage requirements are then doubled if activated at the

4100DBDL HOW TO ORDER/SPECIFY PART #'S

BOTH LATCHES	4100DBDL-RH-32D
FAIL SECURE	4100DBDL-LH-32D
BOTH LATCHES	4100DBDL-RS-RH-32D
FAIL SAFE	4100DBDL-RS-LH-32D
TOP LATCH	4100DBDL-RST-RH-32D
IS FAIL SAFE	4100DBDL-RST-LH-32D
BOTTOM LATCH	4100DBDL-RSB-RH-32D
IS FAIL SAFE	4100DBDL-RSB-LH-32D
