THE ONE BOX SOLUTION FOR CYLINDRICAL AND MORTISE LOCKS

4100 FEATURES:

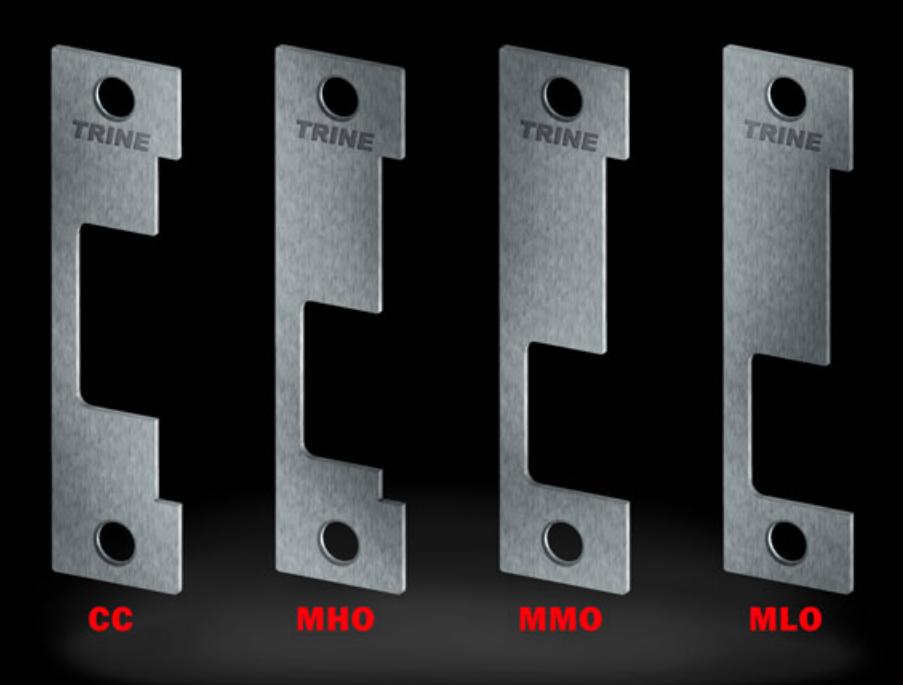

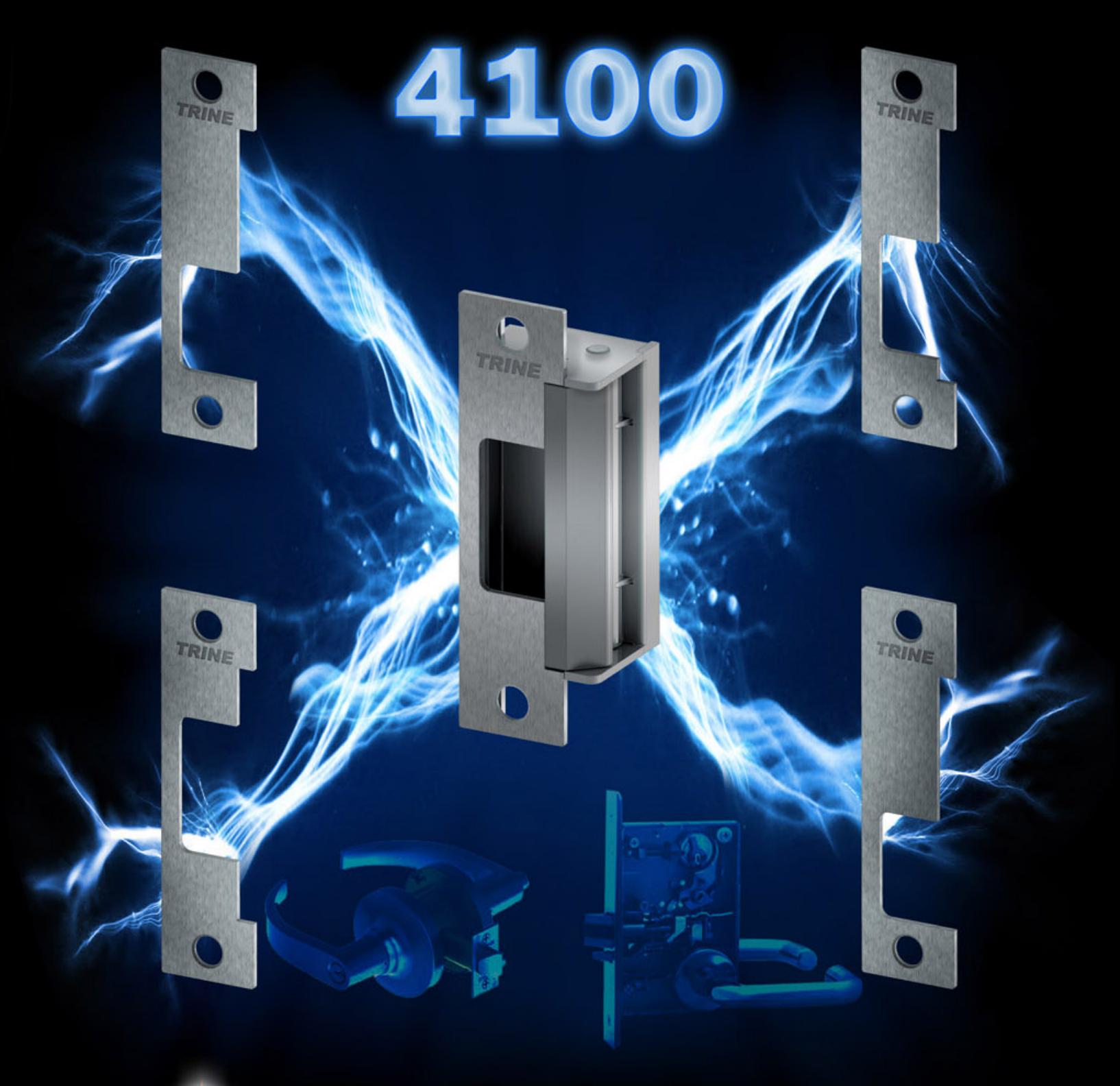

All 4 Faceplates Included

Covers 90%+ of Cylindrical & Mortise Locks (without deadbolt)

• 1-3/8" Shallow backset allows the 4100 to be used in 2" fire rated frames with 1/2" sheetrock ingress.
• † 1034 Burglary Rating (January 2013)
• Exceeds 3,250 lbs. of Holding Force
• Exceeds 1,000,000 Life Cycles
• ANSI/BHMA A 156.31, Grade 1
• Patent Pending

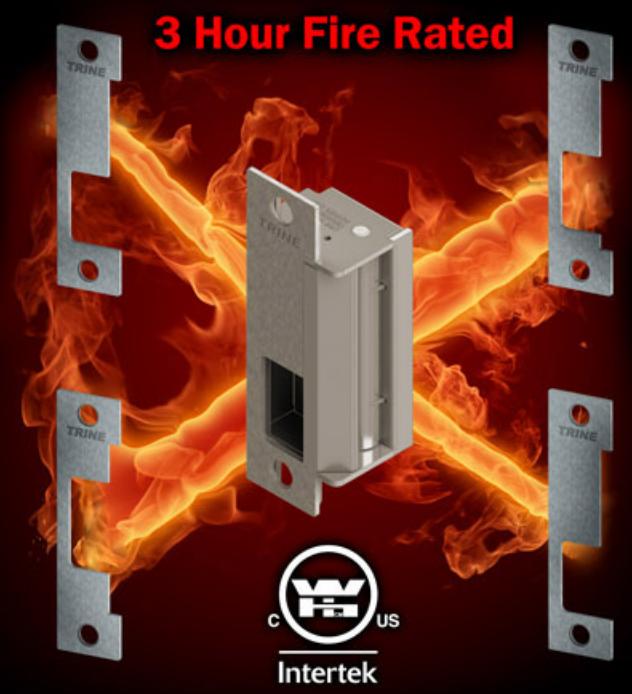

Recognized UL 10C, Class A, 3 Hour Single door UBC 7-2, Uniform Building code CAN4 S104, Fire Door Conformant

Voltage	Current Draw	Resistance
12DC	.240 A*	50 Ω
24DC	.114 A	210 Ω
12AC	.210 A	50 Ω
16AC	.280 A	50 Ω
24AC	.420 A	50 Ω

Low Current Draw PoE Friendly*

Most installations do not utilize a dead bolt so why cut for it?

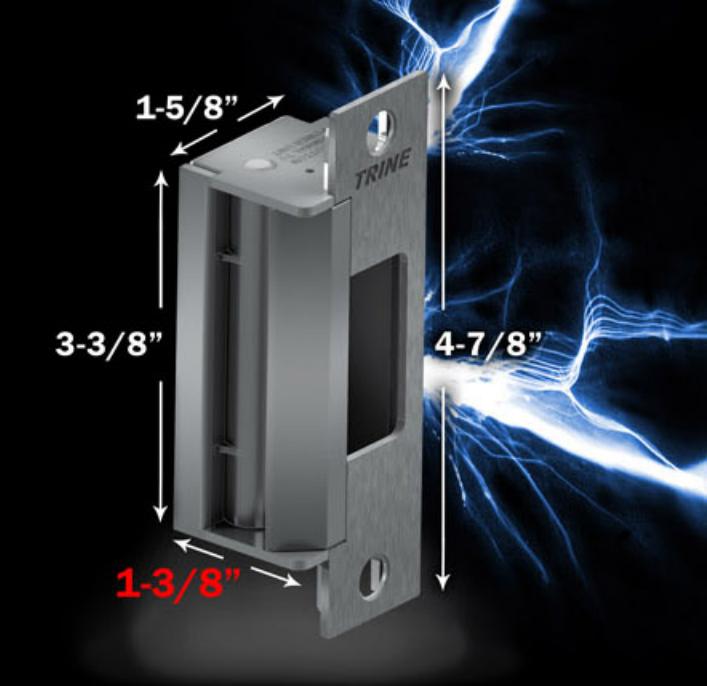

1-3/8" Low Profile Backset

Will work with the Schlage L Series & Yale 8700 Series. without relocating frame mounting tabs.

What's in the One Box Solution?

• The 4 Faceplates

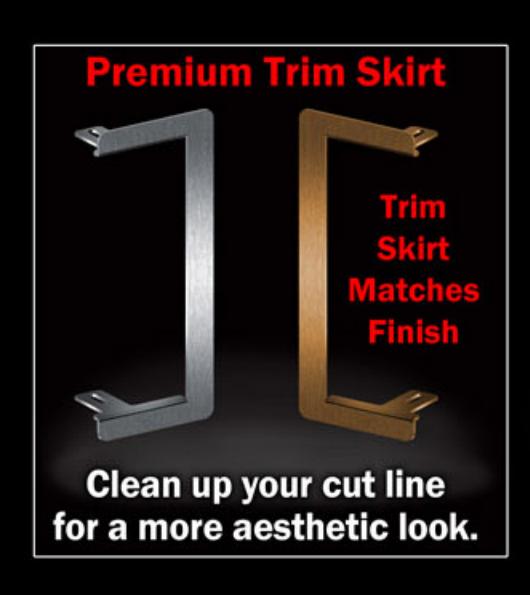

• Premium Stainless Steel Trim Skirt
• Standard and Torx® Screws
• Latch Shims
• Plug-in Style Wire Connectors
• Sealed Crimp Connectors

COMBINE

THE ONE BOX SOLUTION THE ONE BOX SOLUTION FOR CYLINDRICAL AND MORTISE LOCKS FOR RIM PANIC EXIT DEVICES

4100

4850

AND BE PREPARED FOR MOST INSTALLATIONS

FIND OUT MORE ABOUT THE

ONE BOX SOLUTION

GO TO: WWW.TRINEONLINE.COM/A2A

4100 Options:

4100RS - Fail Safe Configuration

4100LB - Latchbolt Monitoring (1st quarter, 2013)

CCTS - Competitor Cutout Trim Skirt (Specify finish when ordering)

BZ-12 - 12DC Piezo Buzzer

BZ-24 - 24DC Piezo Buzzer

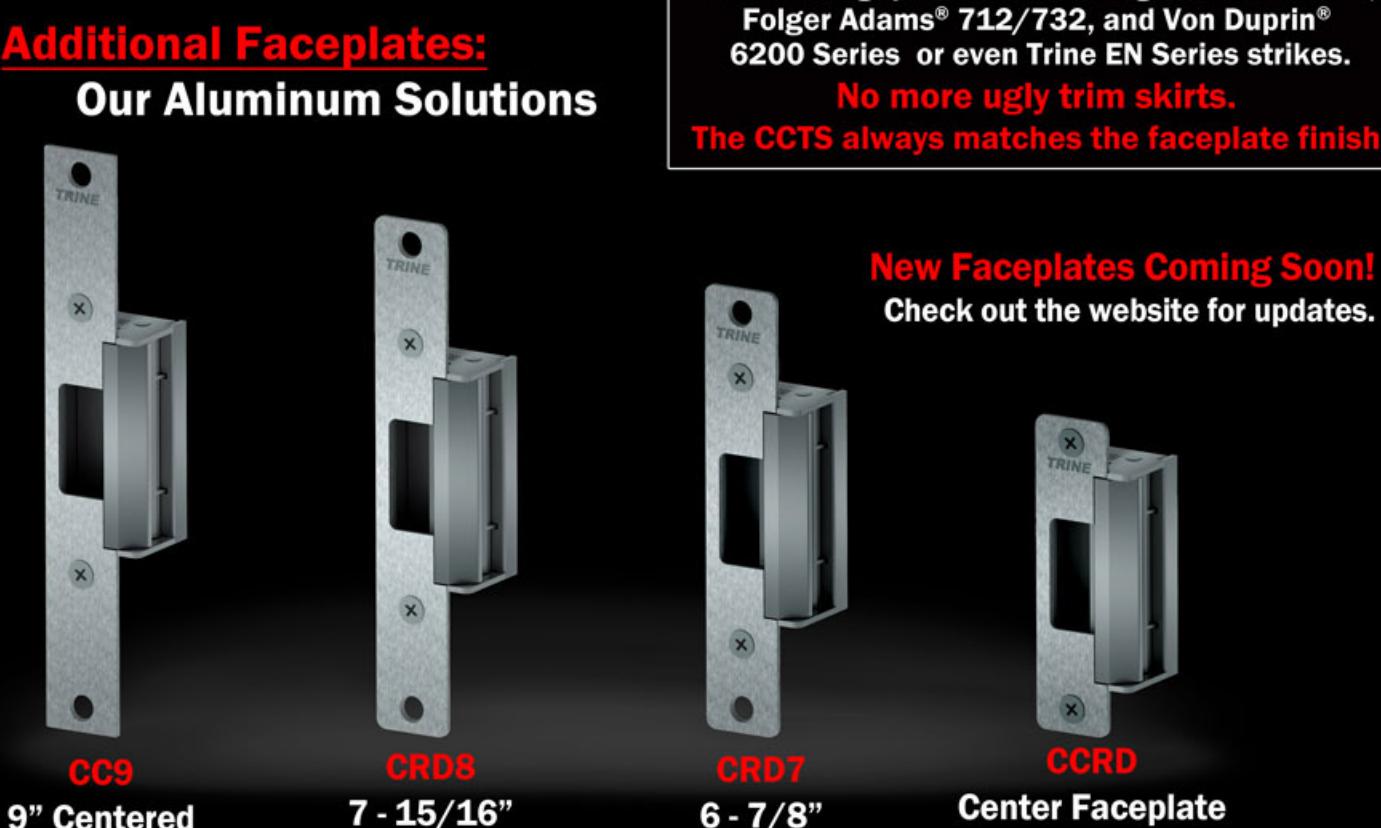

CCTS

Competitor Cutout Trim Skirt

Large

gap left

in a

retrofit

Wider than the included Trim Skirt, the CCTS covers the gap when retrofitting the HES® 1006,

The

CCTS

6 Architectural Finishes:

Centered

Faceplate

• * Satin Stainless Steel 32D (BHMA 630)
• * Polished Stainless 32 (BHMA 629)

Centered

Faceplate

• * Satin Bronze 10 (BHMA 612)
• * Bright Brass US3 (BHMA 605)

with Radiused

Corners

• * Satin Brass US4 (BHMA 606)
• * Dark Bronze 10B (BHMA 613)

Matter: Faceplates, strike body, mounting screws, and trim skirts all match the finish.

9" Centered

Faceplate

1440 Ferris Pl. Bronx, NY 10461

P: 718-829-2332 - F: 718-829-6405
