View PDFTHE 323478F-LC KIT FIRE RATED CYLINDRICAL LOCK SOLUTION
THE SMALLEST FIRE RATED ELECTRIC STRIKE IN THE WORLD
- 3 Hour Fire Rated

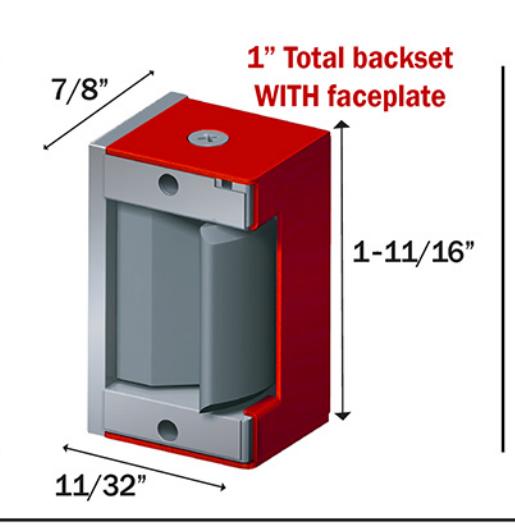

- 1" Total Backset
- 1/8" Horizontal Adjustment
- BHMA Grade 1 All stainless steel construction
- 12-24 AC & DC surge & kickback protection

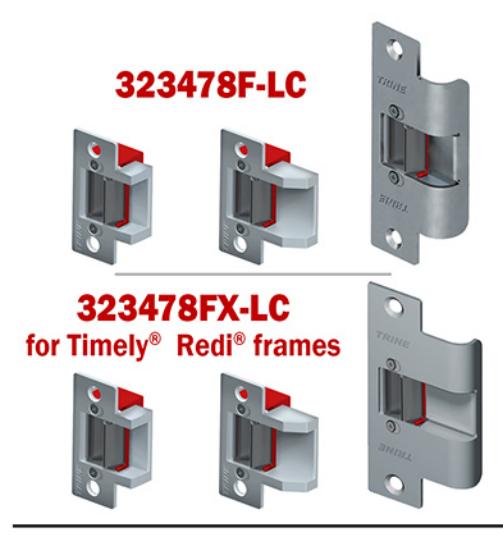

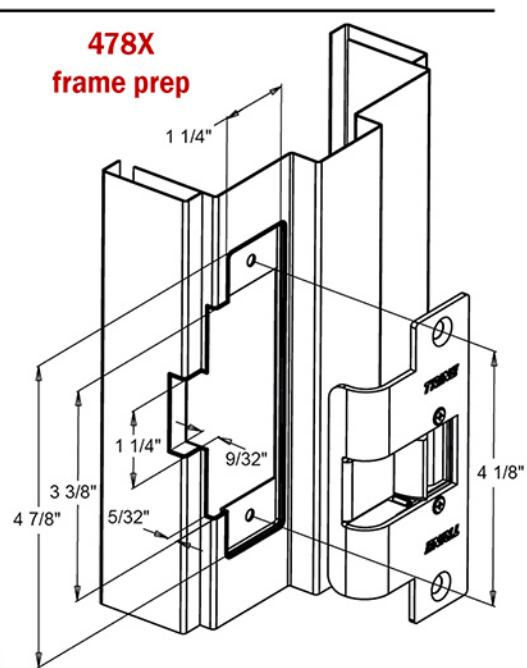

*Order the 323478FX-LO when installing on Timely® & Redi® frames.
FORGING NEW SOLUTIONS WITH ELECTRIC STRIKES
Included LC100 provides 12-24 AC & DC power with surge and kickback protection. 1 - 13/16" 15/16"

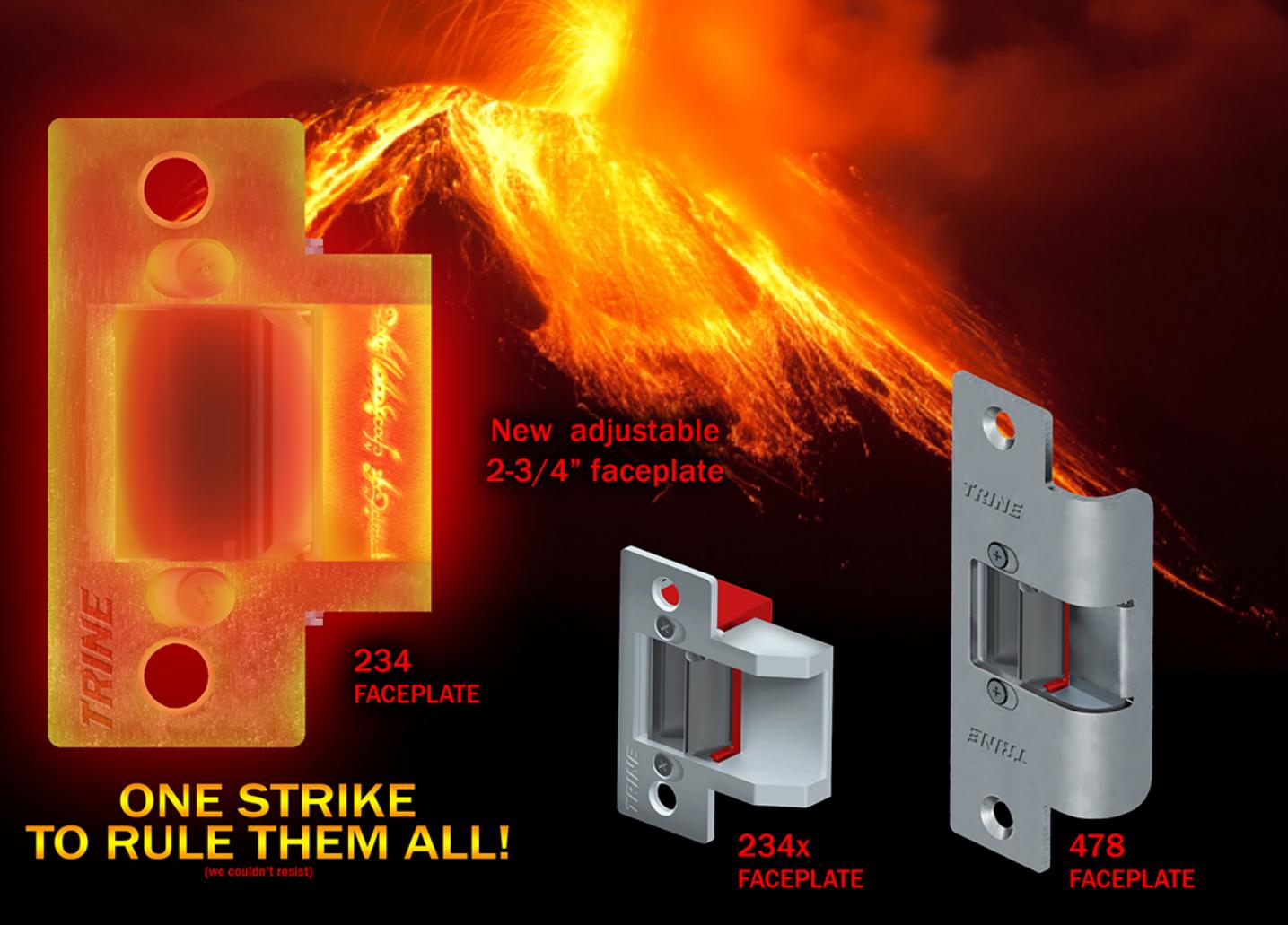

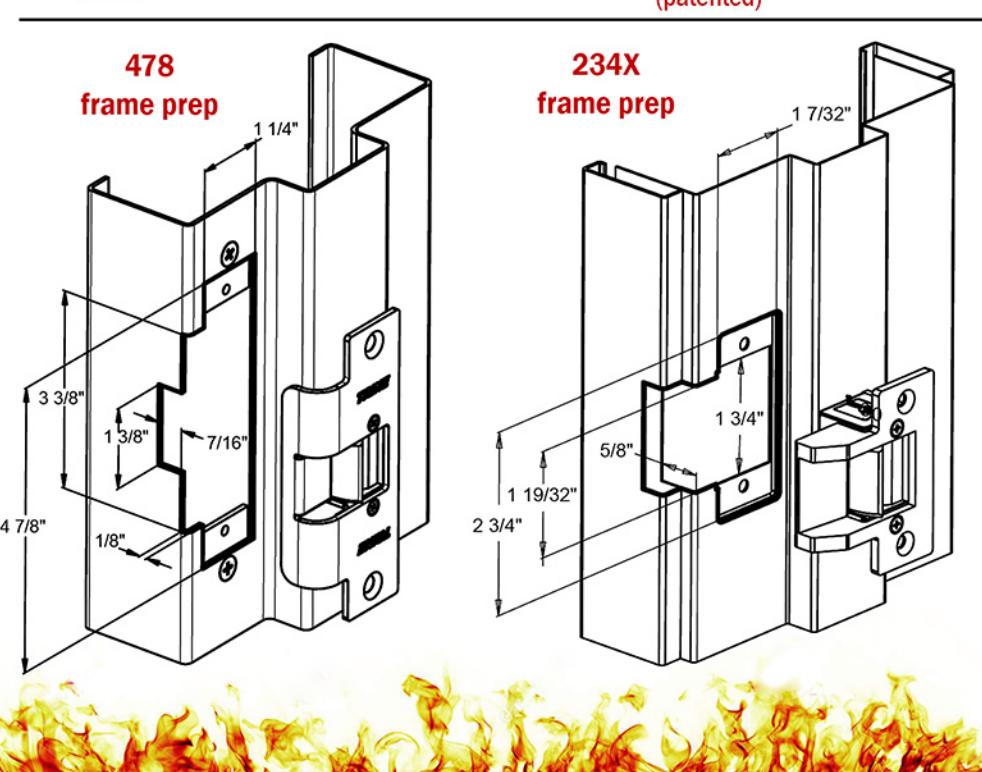

478 Faceplate Faceplate Faceplate Faceplate Faceplate Faceplate

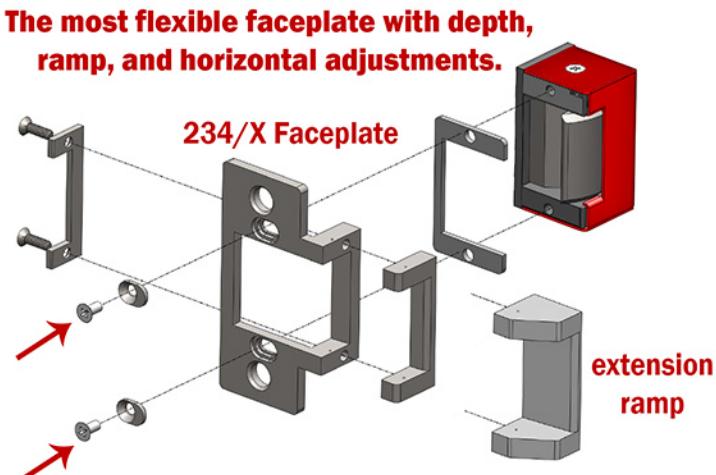

→ NEW 1/8" Horizontal adjustment added
(patented)
1/8" Horizontal adjustment always included.
323478FLC Electrical Characteristics
| 0204701 Ed Ellottion Giardotolistics | |||||
|---|---|---|---|---|---|
| VOLTAGE | PULL IN/HOLD AMPS | OHMS | DUTY | SOUND | |
| 12VDC | .743/.298 | 13 | Intermittent/Continuous | Silent | |
| 12VAC | .715/.277 | 13 | Intermittent/Continuous | Silent | |
| 24VDC | .397/.170 | 13 | Intermittent/Continuous | Silent | |
| 24VAC | .378/.173 | 13 | Intermittent/Continuous | Silent | |
LIST PRICES (32D & DARK BRONZE)
| 323478F-LC-32D | $399.00 |
|---|---|
| 323478F-LC-DKBZ | $419.00 |
| 323478FX-LC-32D | $409.00 |
| 323478FX-LC-DKBZ | $429.00 |
