SIMPLY THE BEST!

Bolts Into The Frame Not The Floor!

Take It From The Pro's!

Locksmith:

"...really like seeing the Trident bolting into the frame instead of the floor where dirt, moisture, & salt build up in the strike..."

Fire Marshal:

"...Trident provides multiple points of locking with code compliant single motion release for exit doors - much better than slide bolts..."

LP Director:

"...superb security comes from the automatic high security relocking provided in the self locking Trident lock..."

From A Locksmith's Point Of View

Securitech's TridentTM has been protecting America's Retail Market for years with thousands installed across the country. Locksmiths of America endorse it because of their Ease of Installation, Forced Entry Protection, & Maintenance-Free Operation. "TridentTM is Simply the Best."

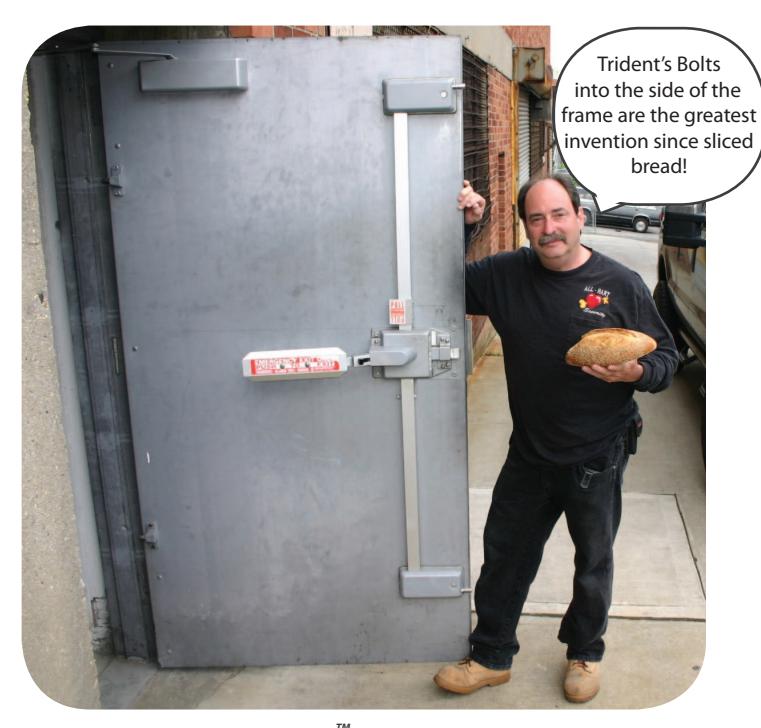

Trident? Best invention since sliced bread.

I've installed multi-point locks from Securitech for over fifteen years and the Trident is the easiest and fastest to install. I'd give a Nobel Prize to whoever came up with their metal marking template – It's Genius!

I always recommend the Trident self-locking model – the door closes and boom – the bolts project automatically into the frame. No worrying about whether a store associate remembers to lock the door – when it closes, it automatically relocks.

The best thing about the Trident on single doors is that all the bolts engage into the frame – nothing into the floor. I've seen more problems with that bottom bolt than anything else. From dirt to misalignment… bottom bolts on active doors are nothing but trouble.

Want me to bolt into the floor? Fuhgedabout it! There's usually a large gap between the door and saddle. Sometimes there isn't even a saddle! It's the least secure locking point and the most attacked by thieves, in most cases.

That darn bottom bolt that locks into the floor always gets me out on late night service calls. Someone's trying to lock up and go home and they can't. I haven't had any calls like that with Trident.

My customers also prefer the wall mounted alarms. The siren blasts into the store, not out into the parking lot or back alley. Whoever came up with putting the alarm on the door, anyway? Why would you want to tell people on the outside where they can walk into to the back of a store?

I like to do a job, give the best protection and walk away without call backs. That's why as a locksmith I recommend the Trident - It's the toughest exit lock out there.

Bobby Hart, Locksmith & Owner

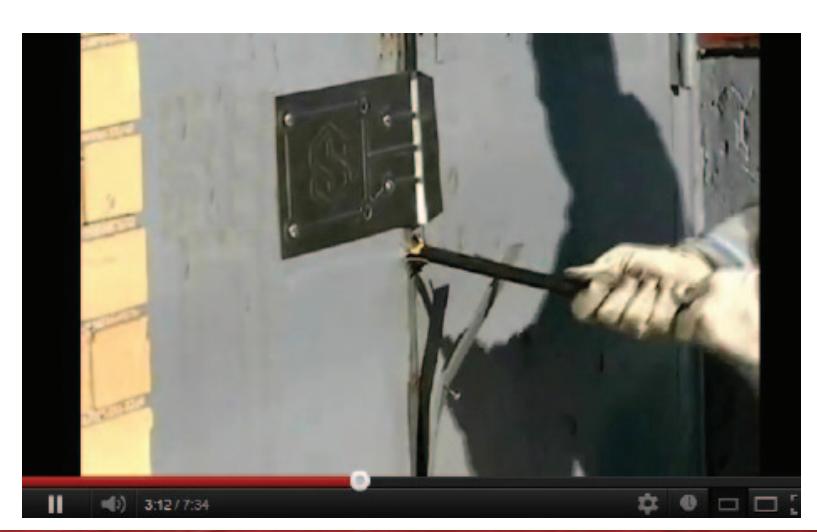

Check Out Our Trident Break-In Attempt Video!

www.Securitech.com/SimplyTheBest

Or Scan This QR Code With Your Phone or Tablet

TM Multi-Point Exit Lock

R FORCED ENTRY PROTECTION

• ^l Superior protection against prying Locking bolts located at pry points

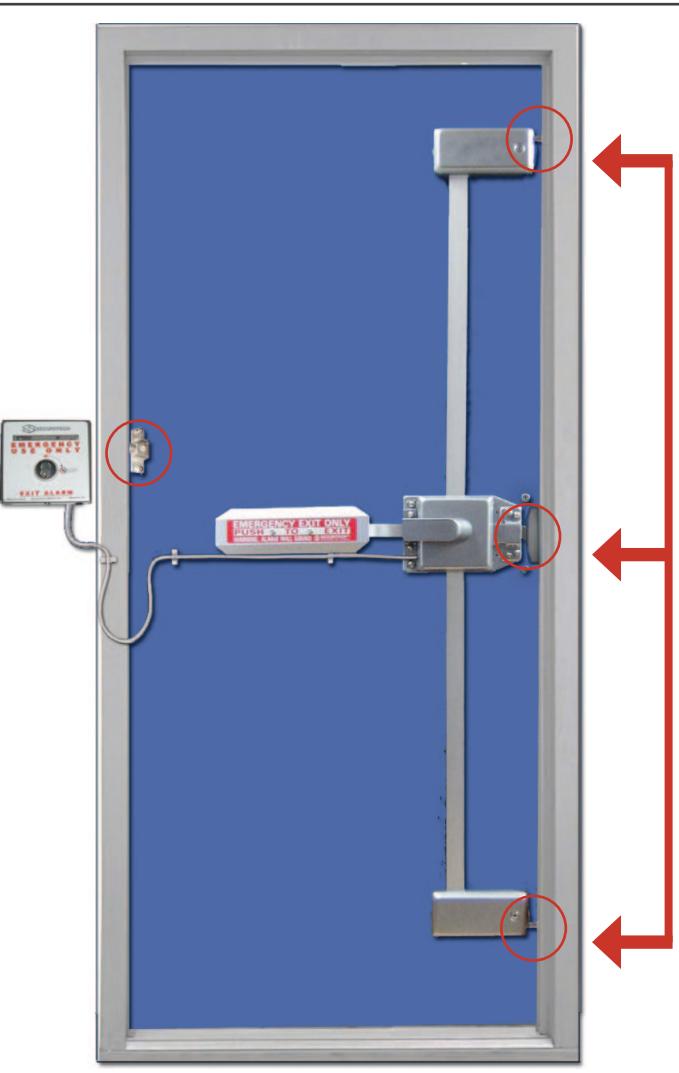

• ^l Bolts project into the frame 3 horizontal locking points on lock side & standard one locking bolt on hinge side
• ^l Comes standard with 4 locking points Add more hinge-bolts as needed
• ^l Stainless steel, 1-1/4" tall main locking bolt 5/8" Dia. 7" long auxiliary bolts

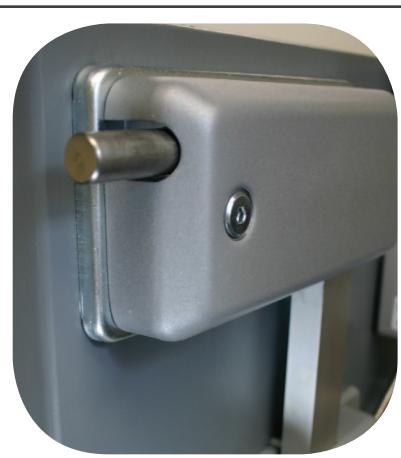

• ^l 1" bolt projection all bolts Auxiliary bolts are free-spinning to prevent from cutting
• ^l Stainless steel anti-pry plate T hru-bolted at 6 locations

R EASY INSTALLATION

• ^l Installation in under 2 hours Revolutionary product design

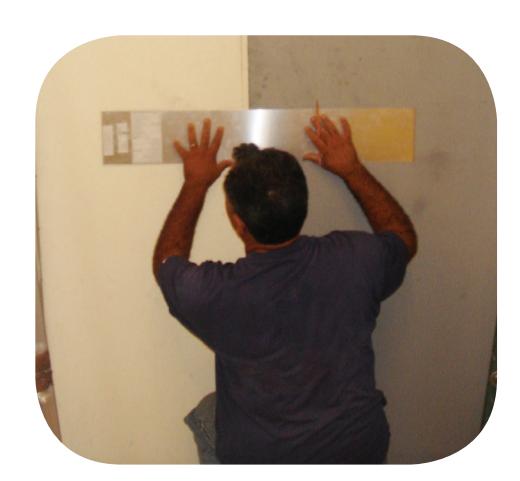

• ^l Patent pending full size steel template Mark & drill without measuring!
• ^l Lock is factory assembled Modules connected to main lock body

• ^l Add options as needed Plug-in alarms, swap in extended paddle
• ^l ADA-Compliant Exterior Lever Entrance by key or lever when door is unlocked

R MAINTENANCE-FREE OPERATION

• ^l No bolt Into floor Lower bolt projects into frame does not ham up due to dirt & moisture
• ^l All moving parts are protected Aluminum channels are standard
• ^l Self-locking ensures smooth locking Door automatically relocks when closed
• ^l Captive key in alarm models Key removable only when armed

"Trident … bolts engage into the frame – nothing into the floor. I've seen more problems with that bottom bolt than anything else. From water to dirt to misalignment… bottom bolts on active doors are nothing but trouble."

More Features & Options Than Any Other Mult-Point Lock

Locking Styles

You Choose What Is Right For Your Facility!

Manual Locking Lock by pulling the paddle when the door is in the closed position.

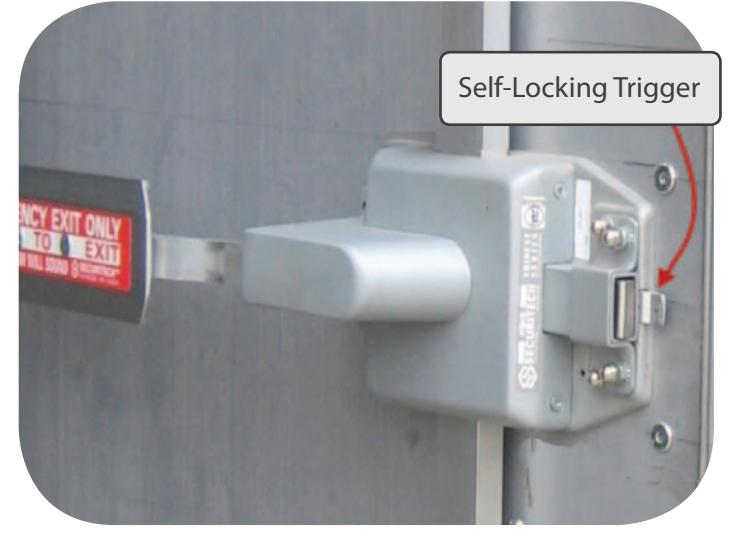

Self-Relocking The door locks itself each time it closes.

All Paddles 1/8" thick aluminum, Not Plastic Trident Extended Paddle Available

Alarm & Notifications

Keep The Siren Blaring Inside, Not In The Parking Lot or Rear Alley.

Trident alarms are all wall mounted and snap into the Trident via a stainless steel armored cable. That sets Trident apart from all other exit locks.

Alarms feature twin 95 db piezo alarms and are reset by key (mortise cylinder required).

Choices include: 9volt battery only, 110v direct power, signal only (alarm by others), digital counter or no alarm.

Wall Mouned Alarm With Direct Power

Exterior Unlocking & Keyed Entry Options

ADA-compliant Lever (Self-Relock) Entrance by key or lever

when door is unlocked

Electric Release OptionAvailable On All Models For card access, keypad, or remote release

Easy To Operate Turnpiece (Manual) Key unlocks lever or turnpiece momentarily

Lower Module Reinforcement Kit

Anti-Pry Protection

Exit Only Model Anti-Pry Plate with 6 thru-bolts

Thru-Bolt Plates Standard for all locking bolts

Maximum Door Reinforcement Kits

Door Strengthening Bars Thru-bolted to resist break-in by warping the door inwards

Lower Module Reinorcement Kit Extra anti-pry & door stiffener plate, with thru-bolt bracket over module

Door Strengthening Bars

Special Daytime Access Models

Electromagnetic Option Use electromagnetic lock in conjunction with Trident for high-traffic daytime employee entrance use

High Traffic Special Model

Single & Double Door Applications

Single Door Standard Trident Model

Double: One Active Trident plus vertically bolted inactive leaf deadbolt lock

Double: Both Active Active exiting from both doors, vertically bolted locking system

Approvals

Tridents Are Always Customizable, Just Give Us A Call!

• ^l Fire-Rated
• ^l Miami-Dade Approved
• ^l FBC Hurricane Zones (Doors 4' x 8' or 8' x 8' Double)
