Touchless switch

I N S E R T I n s t r u c t i o n s

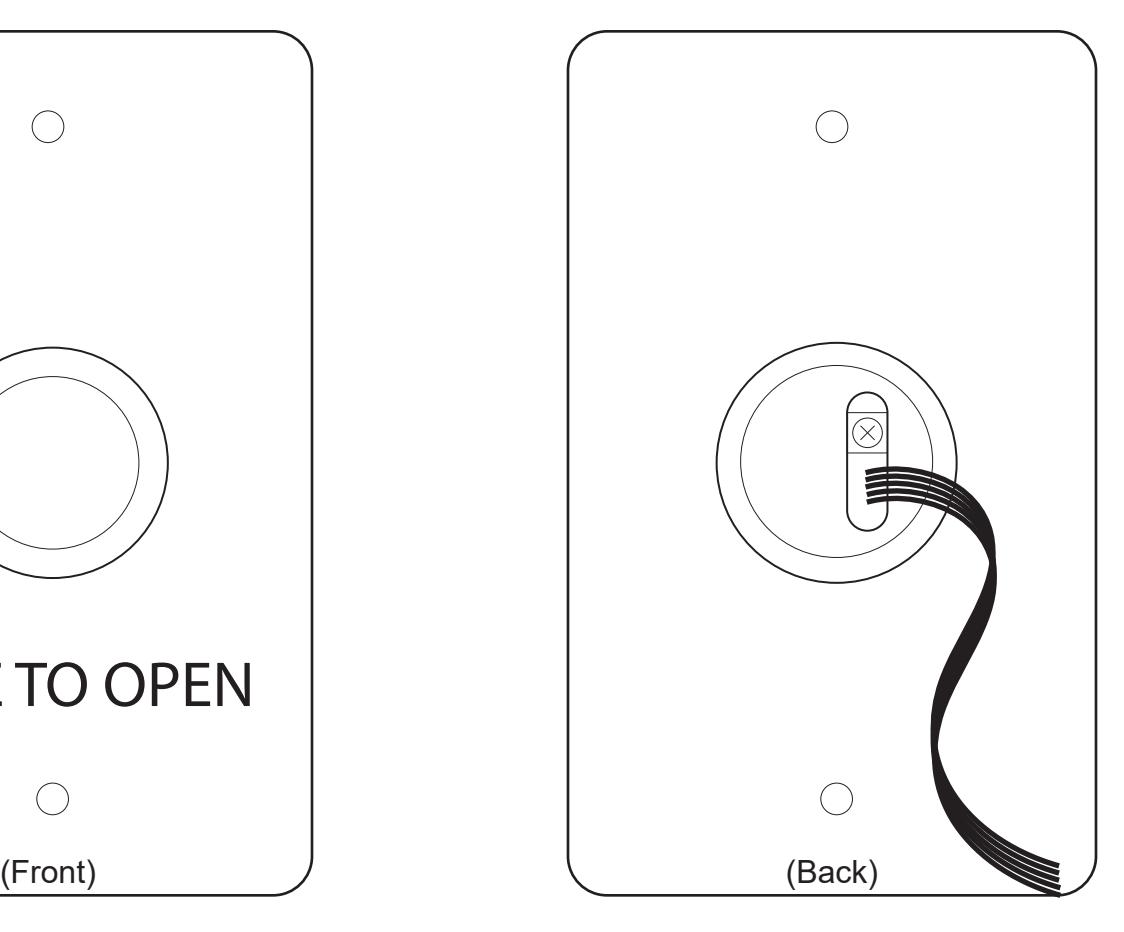

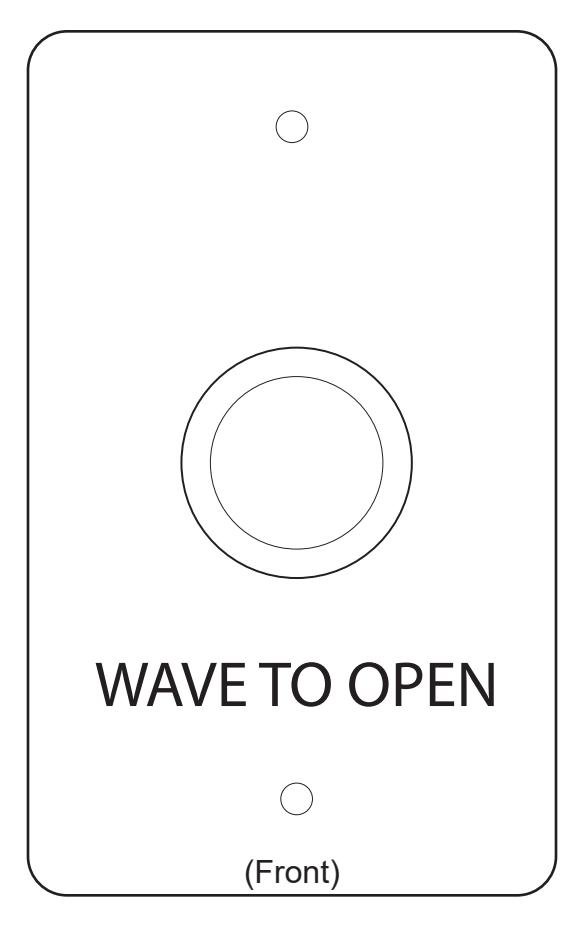

The Command Access Touchless Switch is a hard wired, illuminated activation device that can be used for handicap access, automatic operator activation and Request-to-Exit applications.

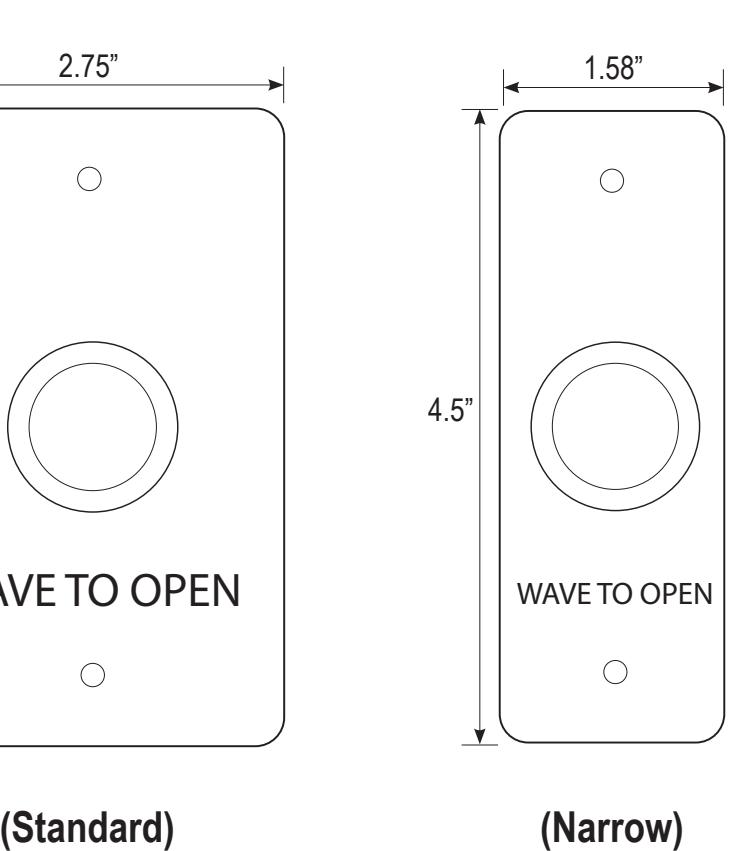

Sizes: Standard Width : for mounting into a single gang electrical box or flat surface.

Narrow Width : for mounting into a door frame/window mullion or flat surface.

specifications

• Input Voltage : 12-24VDC

• Input Current : 50mA active (Green Light)

25mA standby (Blue Light)

• Contact Rating : 3A @24VDC

• SPDT Contacts : Common

Normally Open Normally Closed

Power Wires (Polarity Sensitive)

• Red : 12-24VDC+ • Black : 12-24VDC-

Contact Wires

• Yellow : Common

• Green : NO (Normally Open) • White : NC (Normally Closed)

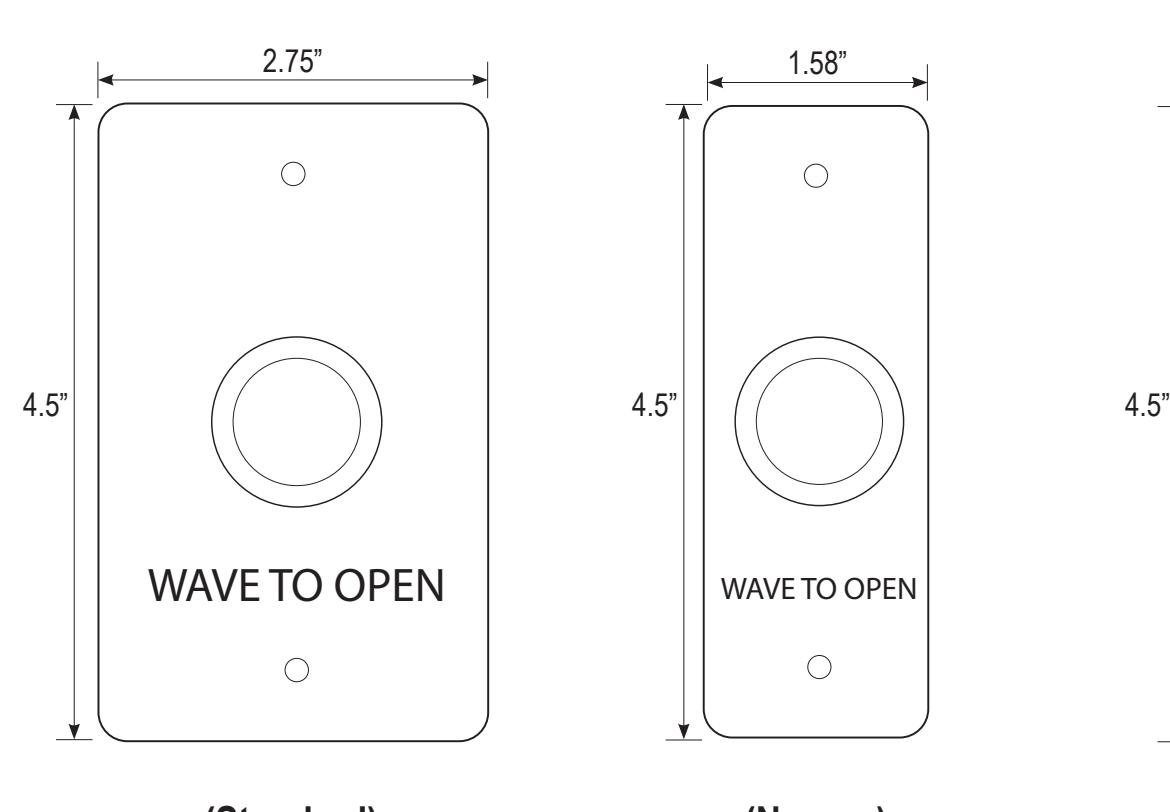

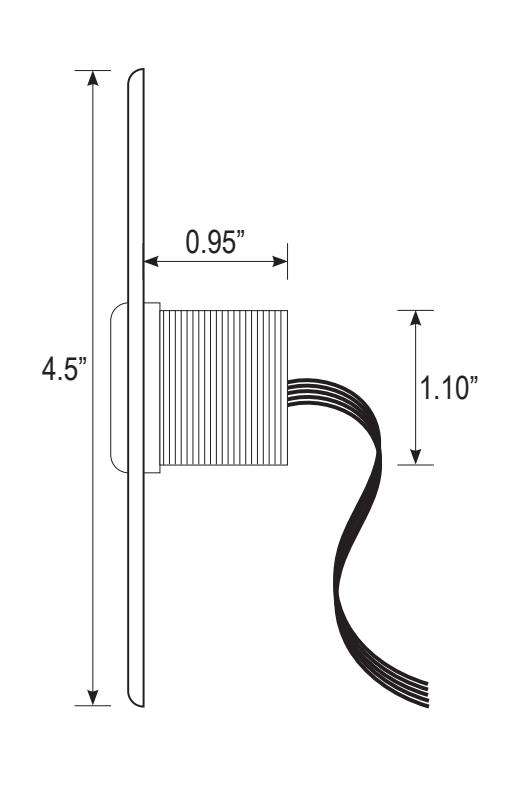

dimensions

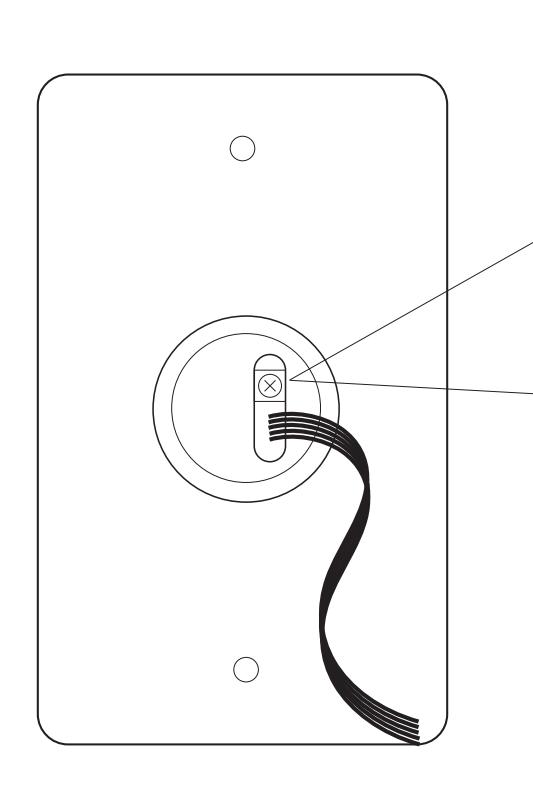

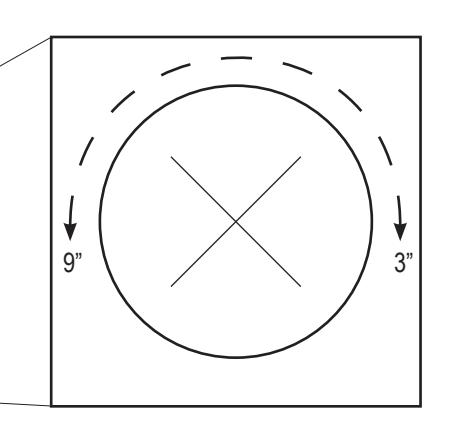

Sensitivity Range Adjustment

Using a small Phillips or flat blade screw driver:

• 1. Turn adjustment dial to the right (clockwise) to decrease read range distance and focus the sensitivity closer to the switch.
• 2. Turn adjustment dial to the left (counter clockwise) to increase read range distance and focus the sensitivity farther away from the switch.
