TA1 - Illuminated wave / Push Buttons

I N S E R T I n s t r u c t i o n s

TA1 Illuminated Wave / Push Buttons are surface mounted with both "WAVE" (touchless) and "PUSH"(touch) activation for standard applications or as part of the Command Access Universal Bathroom Privacy Kit.

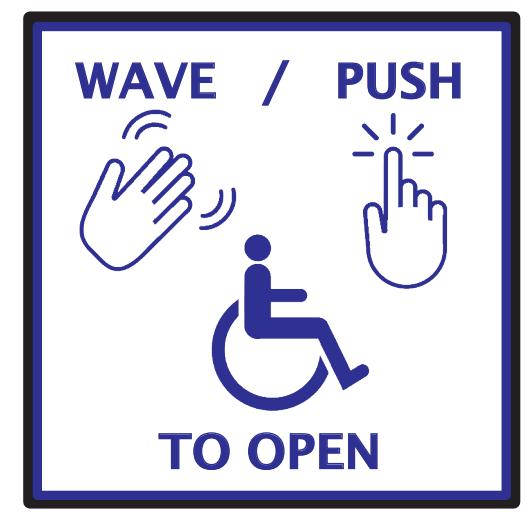

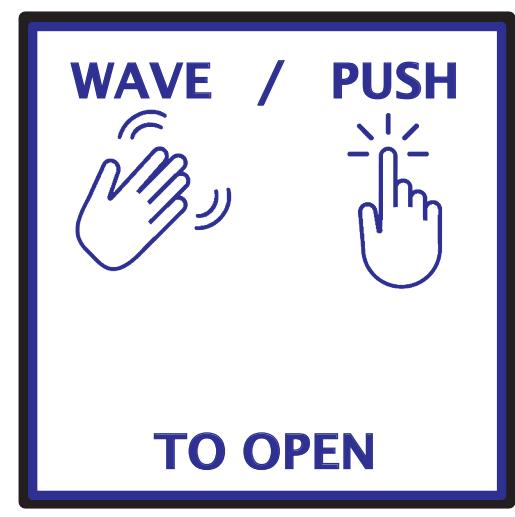

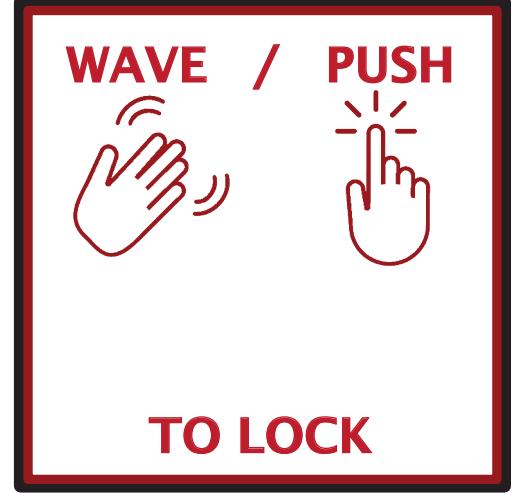

TA120 - WPTO-HC TA121 - WPTL TA122 - WPTO

specifications

INPUT VOLTAGE: 12 to 30 VAC/DC

CURRENT DRAW: 13mA (standby); 45mA (triggered)

TRIGGER DISTANCE: 0.5" to 4.0" adjsutable

RELAY TIME: 0.1s to 30s adjustable

MAIN CONTACT/RELAY: 3 AMP; SPDT (COM,NC,NO)

SIZE: 4.5" x 4.5" x 2"

ILLUMINATION COLOR: Standard = Blue (Idle), Green (activated)

Privacy = Green (Open), Red (locked)

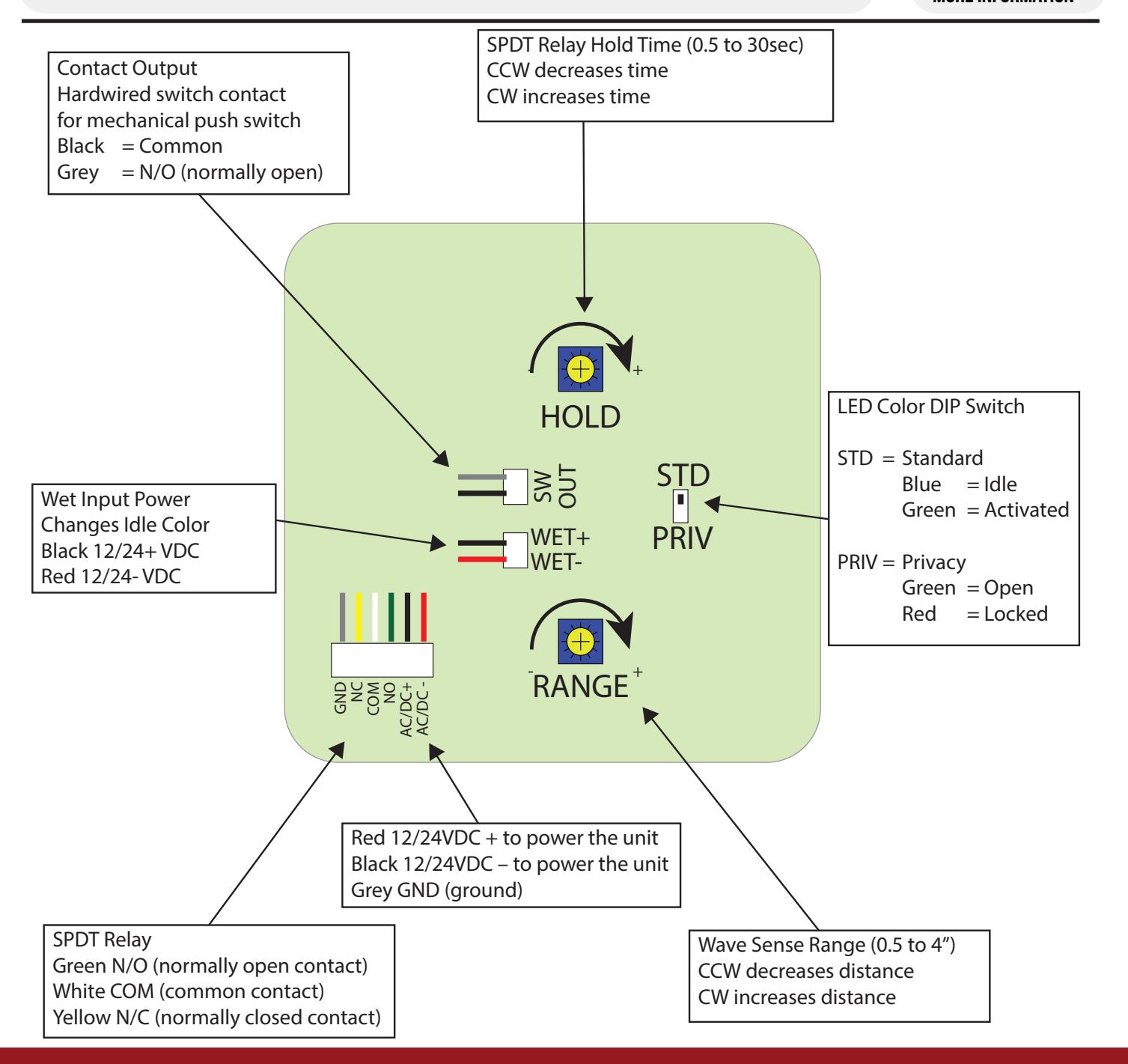

technical data

package contents

1 - Enclosure 1 - Power/Relay harness (6-wire)

1 - Circuit Board 1 - Mechanical Contact harness(2-wire)

1 - Switch Plate 1 - Privacy Input Harness (2-wire)

1 - Illumination Ring 2 - flat head screws w/anchors

1 - 3mm Allen wrench Scan me for
