TA1 Series

Cat touch this! Touchless actuator

• Touchless Wave Actuator
• 12-30 VDC/AC SPDT
• Bi-Color Halo LED status indicators
• Hold Time adjustable for .5-30 seconds
• Trigger Distance range 0.5" 4"

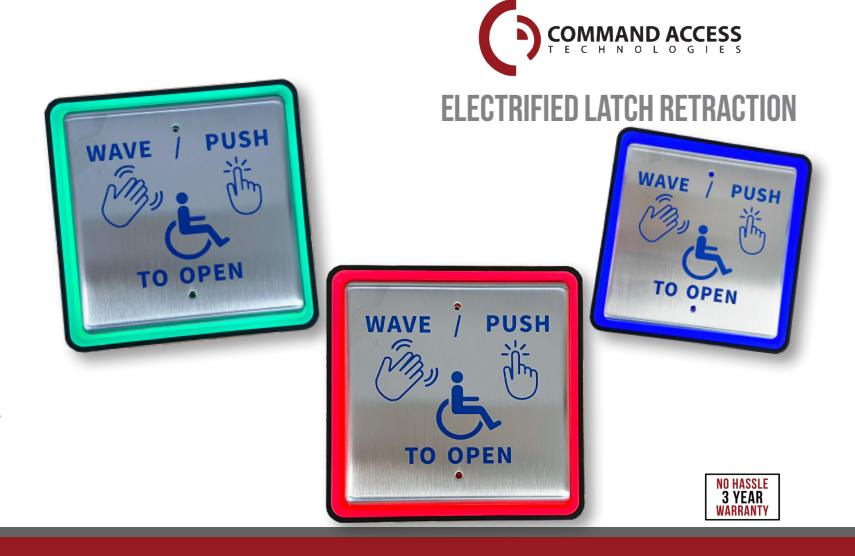

The COMMAND ACCESS TA1 SERIES is a double gang touchless actuator with a mechanical fail-safe actuator for lost power. Eliminate the spread of germs through ease of wave activation. Everyday use on ADA openings or specialty applications with the push-to-lock actuator is ideal for single occupancy privacy restroom applications.

SPECIFICATIONS

Voltage:

• Voltage range : 12 to 30 VA/DC

• Current Draw: 13mA (standby); 45mA (triggered)

• Trigger Distance: .5" to 4.0" adjustable

• Relay Time: 0.1s to 30s adjustable

• Illumination color:

Standard = Blue (idle), Green (activated) Privacy = Green (open), Red, (locked)

• Size: 4.5" x 4.5" x 2"

Accessories

• 2WRB - Upgrading from a pre-wired mechanical acuator. 2 Wire Retrofit Board allows for you to run power & signal activation off 1 pair of existing wires.

FEATURES

• Plate Screened "Wave to Open" or "Wave to Lock"
• Standard LED: BLUE -> GREEN
• Single Occupancy Restroom LED GREEN -> RED
• LED's field selectable by dip switches
• Functions as standard mechanical actuator for situations when power to switch is lost.
• Activation time adjustable 1-30 seconds.
• Trigger Distance adjustable so you can minimize any accidental activations.
• See package options when pairing with latch retraction or for single occupancy restrooms.
• 3-year "no hassle" warranty

PART #	EASY ORDER #	DESCRIPTION
CAT-TA120	72806	Touchless Acuator - Wave to Open - Handicap Logo - Surface Mount
CAT-TA121	72807	Touchless Acuator - Wave to Lock -Surface Mount
2WRB	72808	2 Wire Retrofit Board for upgrading to touchless acuators
CAT-TA122	72811	Touchless Acuator - Wave to Open - w/o Handicap Logo - Surface Mount
