Top Plate & Bottom Strike for HC-8700,12-HC8700,FM-8700 & 12-FM,HC4,12-HC4- 8700 Exits

1. USE THIS DIMENSION WHEN DOOR STOPS AGAINST FRAME AS ILLUSTRATED ABOVE. IF DOOR SILENCERS (RUBBER BUMPERS) ARE USED ON THE STOP, DECREASE THIS DIMENSION ACCORDINGLY. FOR GLASS BEADED DOORS USE 1/8" OR 1/4" SHIMS UNDER THE TOP CASE AND INCREASE THIS DIMENSION ACCORDINGLY (GLASS BEAD SHIM KIT AVAILABLE ON ORDER)

2. TOLERANCE ON FRACTIONAL DIMENSIONS ± 1/64". 3. ALL HOLES SHOULD BE DRILLED AND TAPPED IN THE FIELD

SARGENT

Sargent Manufacturing Company 100 Sargent Drive New Haven, CT 06511

ASSA ABLOY

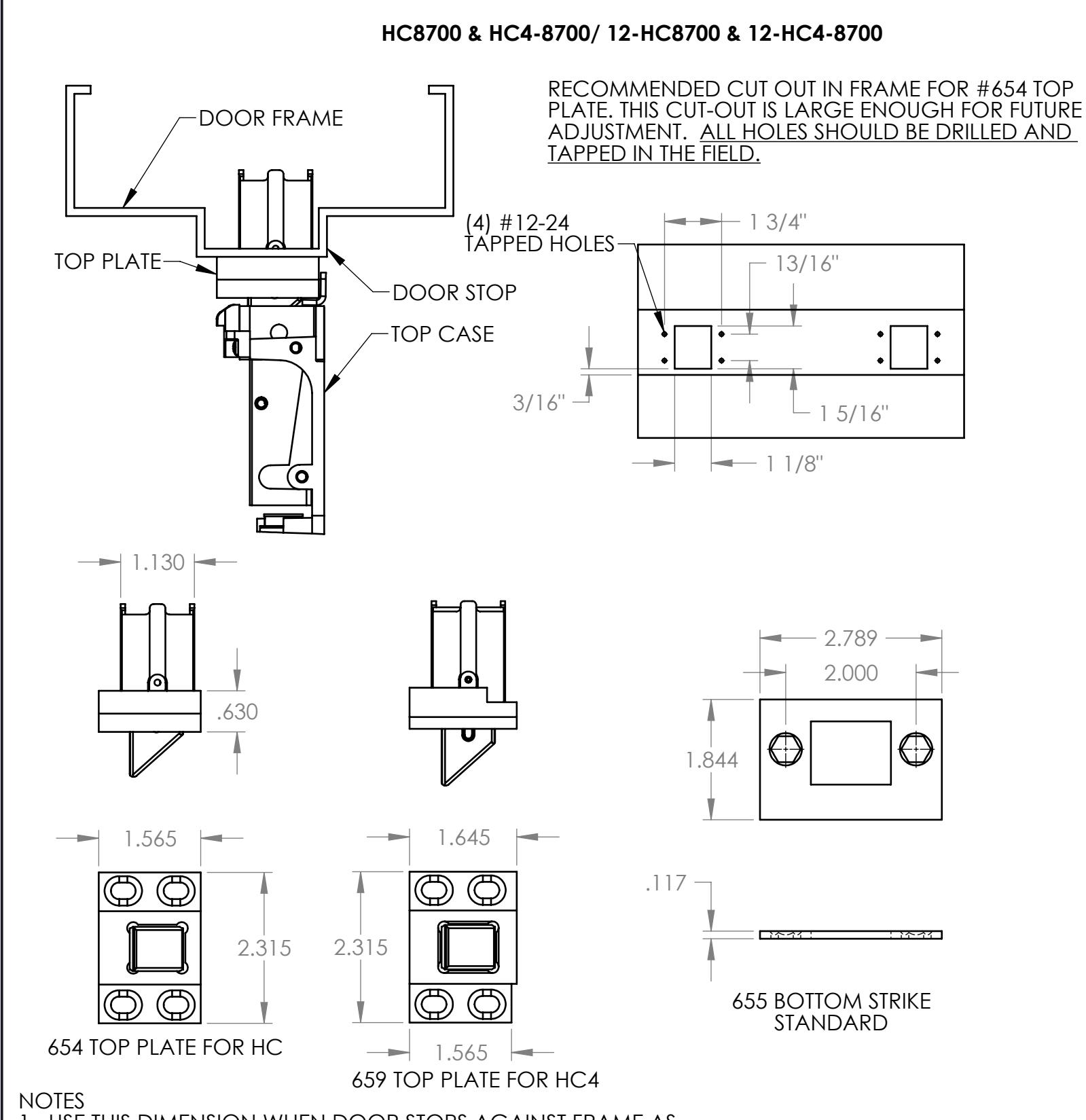

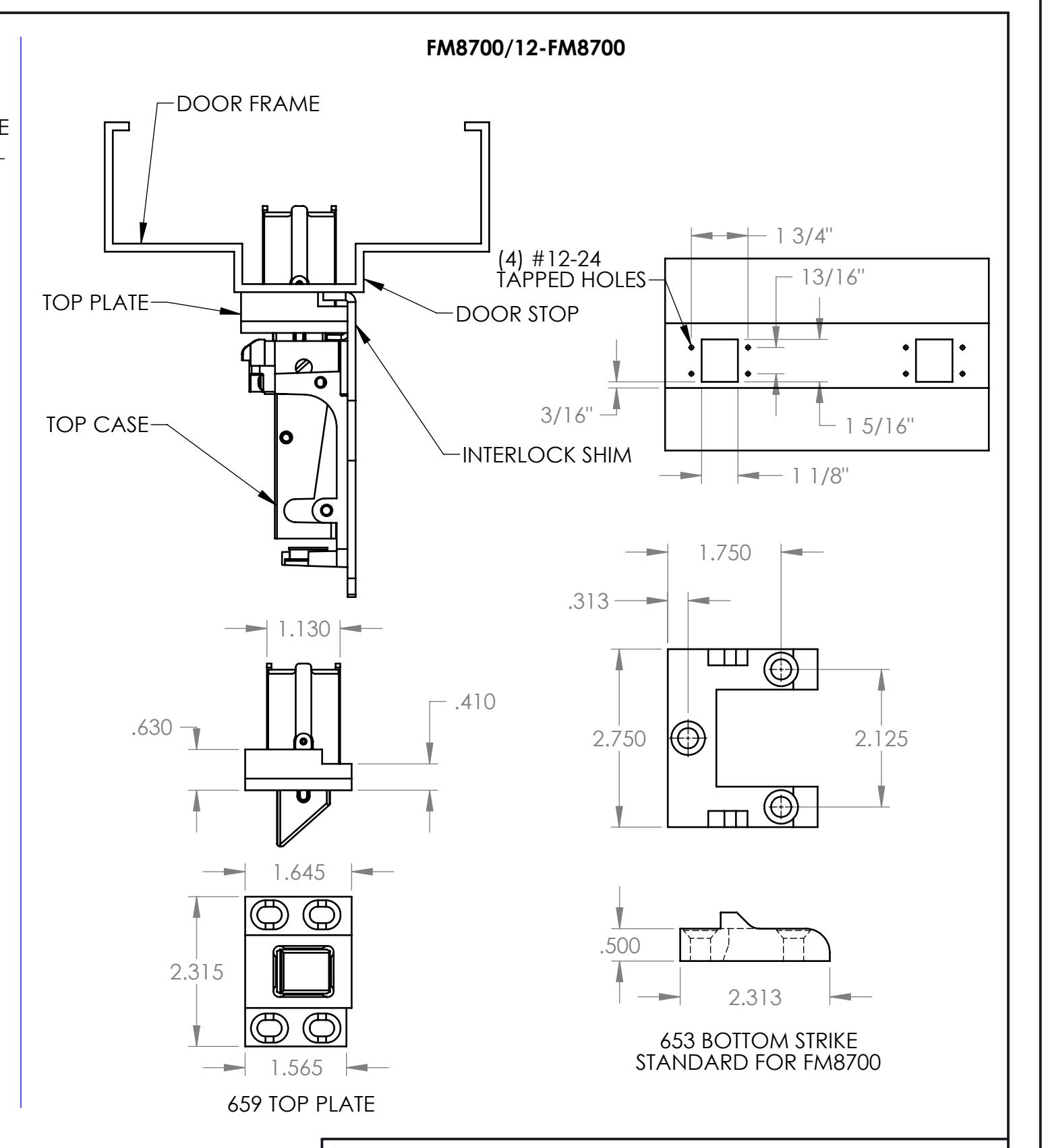

TEMPLATE FOR TOP AND BOTTOM STRIKES (HC8700, 12-HC8700, HC4-8700, 12-HC4-8700, FM8700, 12-FM8700 EXIT DEVICES)
