Thru-Bolt Instructions for 80 Series 8700,8800 and 8900

80 Series Through-Bolt Application

For assistance, contact SARGENT at 1-800-727-5477 or www.sargentlock.com

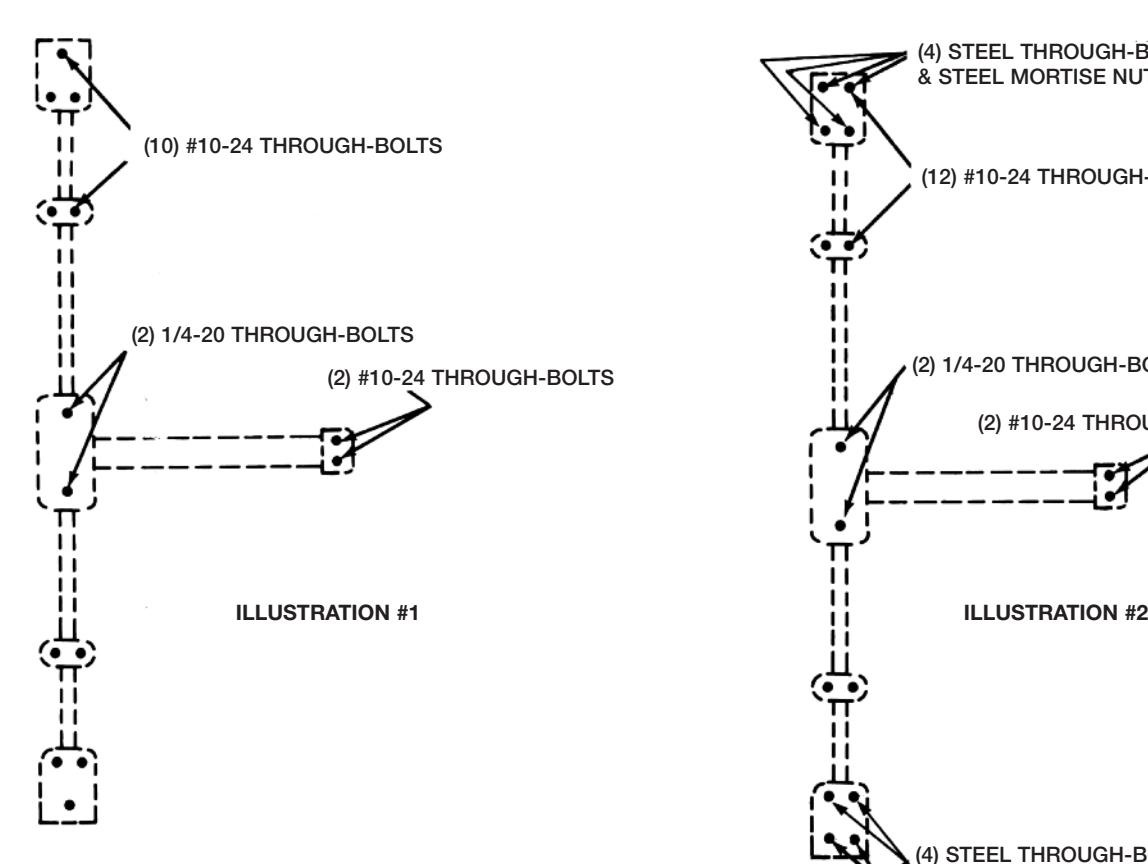

TB-8700 TB-12-8700

(4) STEEL THROUGH-BOLTS & STEEL MORTISE NUTS (4) STEEL THROUGH-BOLTS & STEEL MORTISE NUTS (12) #10-24 THROUGH-BOLTS (2) 1/4-20 THROUGH-BOLTS (2) #10-24 THROUGH-BOLTS (2) #10-24 THROUGH-BOLTS

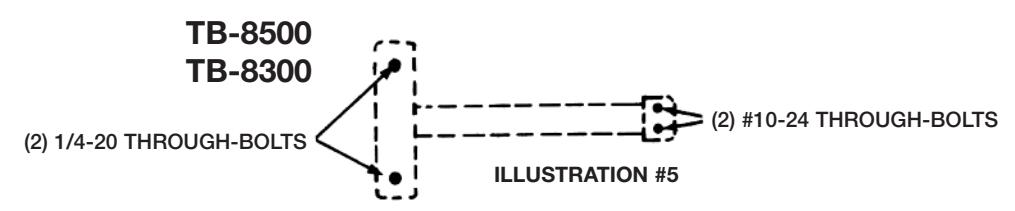

TB-8800 TB-8900 TB-8600

ILLUSTRATION #3

NOTE: ILLUSTRATIONS #1, #2, #3, & #5 ARE USED FOR ALL TRIM APPLICATIONS WITH OR WITHOUT THROUGH-BOLTS.

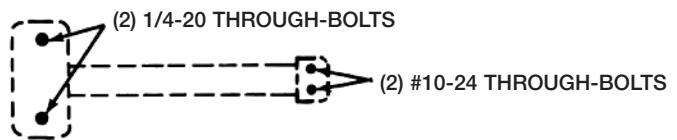

NOTE: FOR 8600 LESS ET TRIM, USE ILLUSTRATION #4. FOR ALL OTHER 8600 APPLICATIONS, USE END BRACKET THROUGH-BOLTS ONLY.

NOTE: 8400 AND 12-MD8400 EXIT DEVICES ARE NOT AVAILABLE FOR THROUGH-BOLT APPLICATION.

*AVAILABLE FOR FIRE EXIT HARDWARE (12-PREFIX)
