Thermal pin Template for wood and metal door applications

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

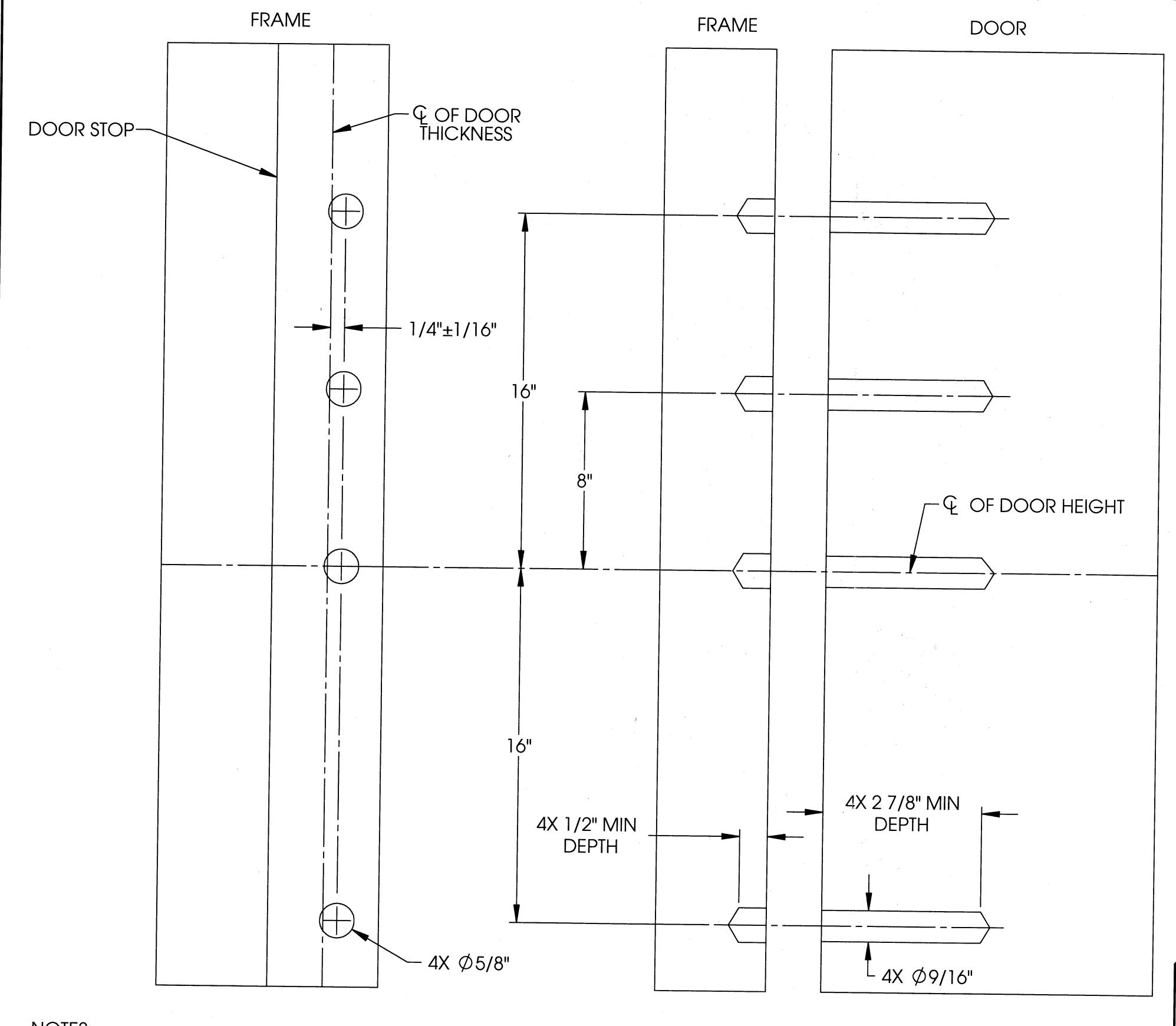

METAL AND WOOD DOOR FOR SINGLE DOOR APPLICATION OF THERMAL PINS MANUFACTURERS TEMPLATE

RELEASE DATE

TEMPLATE NO. 4628 A

NOTES: 1. THERMAL PINS IN DOOR ARE TO BE CENTERED IN DOOR THICKNESS. 2. PIN RECIEVING HOLES IN FRAME TO BE OFFSET AS INDICATED.
