Thermal Pin Installation Instructions for Listed Doors with 12-NB, PP, PR, SP8700 Series Exit Devices

INSTRUCTIONS FOR INSTALLING THERMAL PINS ON LISTED DOORS

For assistance, contact 800-727-5477

Patent pending and/or patent www.assaabloydss.com/patents

INSTALLATION STEPS

• 1. CONSULT DOOR MANUFACTURER FOR PROPER THERMAL PIN ORIENTATION

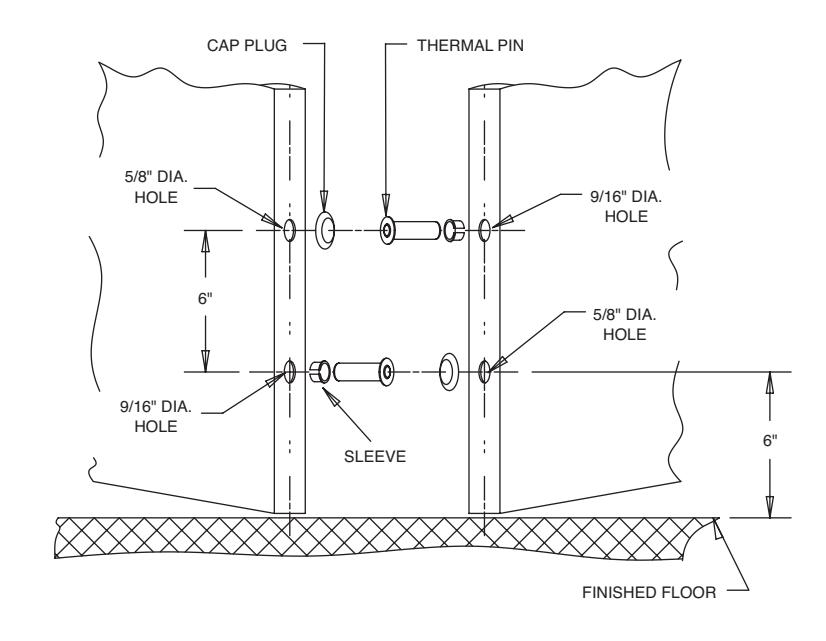

• 2. MARK LOCATION OF HOLES FOR THERMAL PINS AS SHOWN ON TEMPLATE 4617
• 3 DRILL HOLES

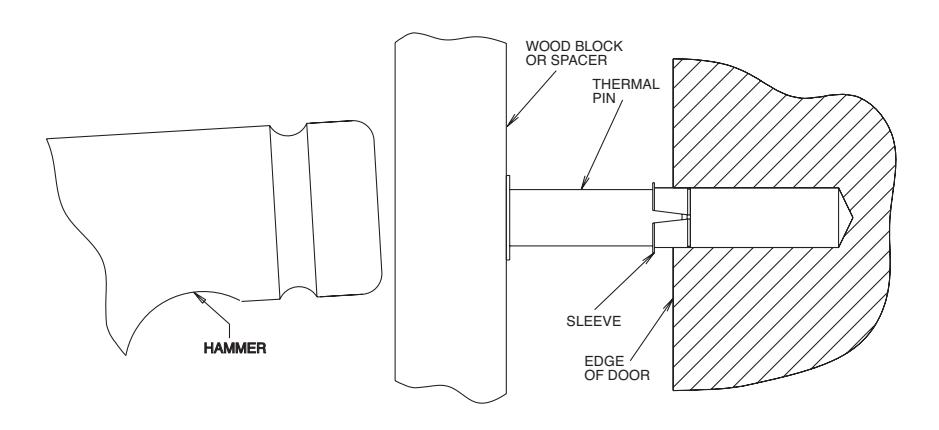

• 4. POSITION SLEEVE IN 9/16" HOLE, INSERT THERMAL PIN INTO SLEEVE AND USING A WOOD BLOCK AS A SPACER, TAP THE THERMAL PIN AND SLEEVE INTO THE HOLE WITH A HAMMER
• 5. INSTALL CAP PLUG

NOTE:

• 1. CONSULT DOOR MANUFACTURER FOR PROPER THERMAL PIN ORIENTATION
• 2. THERMAL PIN TO BE CENTERED IN DOOR THICKNESS
• 3. GAP BETWEEN THERMAL PIN AND RECEIVING HOLE 1/2" MAX
• 4. 20 MINUTE LISTED DOORS DO NOT REQUIRE THERMAL PINS
• 5. HANG DOORS AND HARDWARE PER THE MANUFACTURER'S INSTRUCTIONS. THE DOORS SHOULD BE SQUARE AND PLUMB AND HAVE THE CORRECT GAPS BETWEEN THE DOORS AND FINISHED FLOOR.
