The Premier Pemko Acoustic Automatic Door Bottom
Superior performance and an enhanced design.
The Pemko STC411™ and STC4131™ automatic door bottoms are the latest design for high quality performance in acoustic control and sound attenuation. The newly designed spring assembly increases the pressure applied on the drop bar across the entire length of the automatic door bottom, maximizing seal performance.
The Pemko STC411 and PDB411 are acoustically equivalent, as determined by a third-party acoustic test lab. As such, the STC411 may be used in acoustic openings in place of the PDB411 without retesting. These automatic door bottoms are a great enhancement to the Pemko Acoustic Products portfolio.
When installed, the high quality, multi-finned seal of the Pemko STC- series automatic door bottoms conforms to slight irregularities in thresholds, sills, and most flooring materials. The seal not only provides superior acoustic performance, but also seals the opening against wind and debris to improve its overall energy efficiency.
The expertly designed Pemko STC411™ full-mortise automatic door bottom uses the existing 411 door bottom casing enabling installation into the same mortise. This makes retrofit or new installations easy for installers who are already familiar with existing Pemko automatic door bottoms.
| Features | Benefits |
|---|---|
| Multi-finned seal |
Top of the line acoustic performance and energy
efficient sealing |
| Newly designed mechanism |
Improves the seal across the width of the opening and
allows the gasket to conform to minor irregularities |
| Existing case design |
Interchangeable with other Pemko products with the
same case design |
| Meets ANSI Standard S12.60-2010 | Helps earn LEED Credits |
| Meets UL10B, UL10C and UL1784 | Fire and Smoke Tested |
Applications:
- Hospitality
- Healthcare
- Schools
- Office Buildings
- Theaters
- Auditoriums
- Libraries
- Multi-use facilities
Copyright © 2019, ASSA ABLOY Accessories and Door Controls Group, Inc.
Acoustic Solutions
Pemko Acoustic Automatic Door Bottoms are only one element of the acoustic solutions offered. A wide range of jamb gasketing, door bottoms and thresholds have been designed to assist with sound attenuation. In addition to these Pemko products, ASSA ABLOY can provide other elements of an overall solution for STC Rated doors and frames
Acoustic Automatic Door Bottoms
| Part number | Width | Finishes |
|---|---|---|
| STC411_PK | 12" to 72" |
A - Mill Finish Aluminum with Black
PemkoPrene® Gasket |
| STC4131_PK | 12" to 72" |
C - Clear Anodized Aluminum with
Black PemkoPrene® Gasket D - Dark Bronze Anodized Aluminum with Black PemkoPrene® Gasket |
To achieve the best acoustical results
Min Drop: <sup>1</sup>/<sub>8</sub>" – Max Drop: <sup>3</sup>/<sub>4</sub>" Recommended Drop: <sup>3</sup>/<sub>8</sub>" to <sup>1</sup>/<sub>2</sub>"

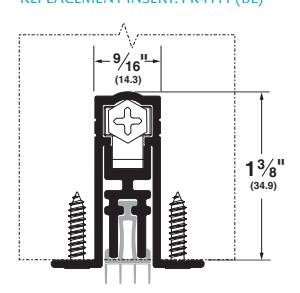

Full-Mortise Application STC411™
AVAILABLE FINISHES: A REPLACEMENT INSERT: PK4111 (BL)
Semi-Mortise or Face-Mount Application STC4131™
AVAILABLE FINISHES: C, D REPLACEMENT INSERT: PK4111 (BL)
Technical Specifications:
Material: 6063-T6 Aircraft Aluminum
Insert Material: PemkoPrene®
Fasteners:
STC411<sup>TM</sup>: Special #6-10 x " x #4 bugle head wood screw
STC4131™: #8 x 1-1/4" sheet metal screw
End Plate Kits:
STC411™: Includes K435 kit For doors narrower than 1-3/4", specify K411 end
STC4131™: K4133C for Clear Anodized K4133D for Dark Bronze Anodized
Sound Rated:
Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010. Acoustical Performance Criteria.
Fire Rated:
Meets UL10C Standard as a Category H and J gasket.
Smoke Tested:
Meets requirements of UBC 7-2 and UL 1784-01 Standards and is tested in accordance with NFPA 105 test method.
Air Tested:
Air infiltration tested in accordance with ASTM E283-04.
ANSI/BHMA:
Meets the requirements of ANSI/BHMA A156.22-2012 Door Gasketing Systems.
