Pemko Stainless Steel Sliding Track Hardware Systems

s t a i n l e s s s t e e l s l i d i n g t r a c k h a r d w a r e s y s t e m

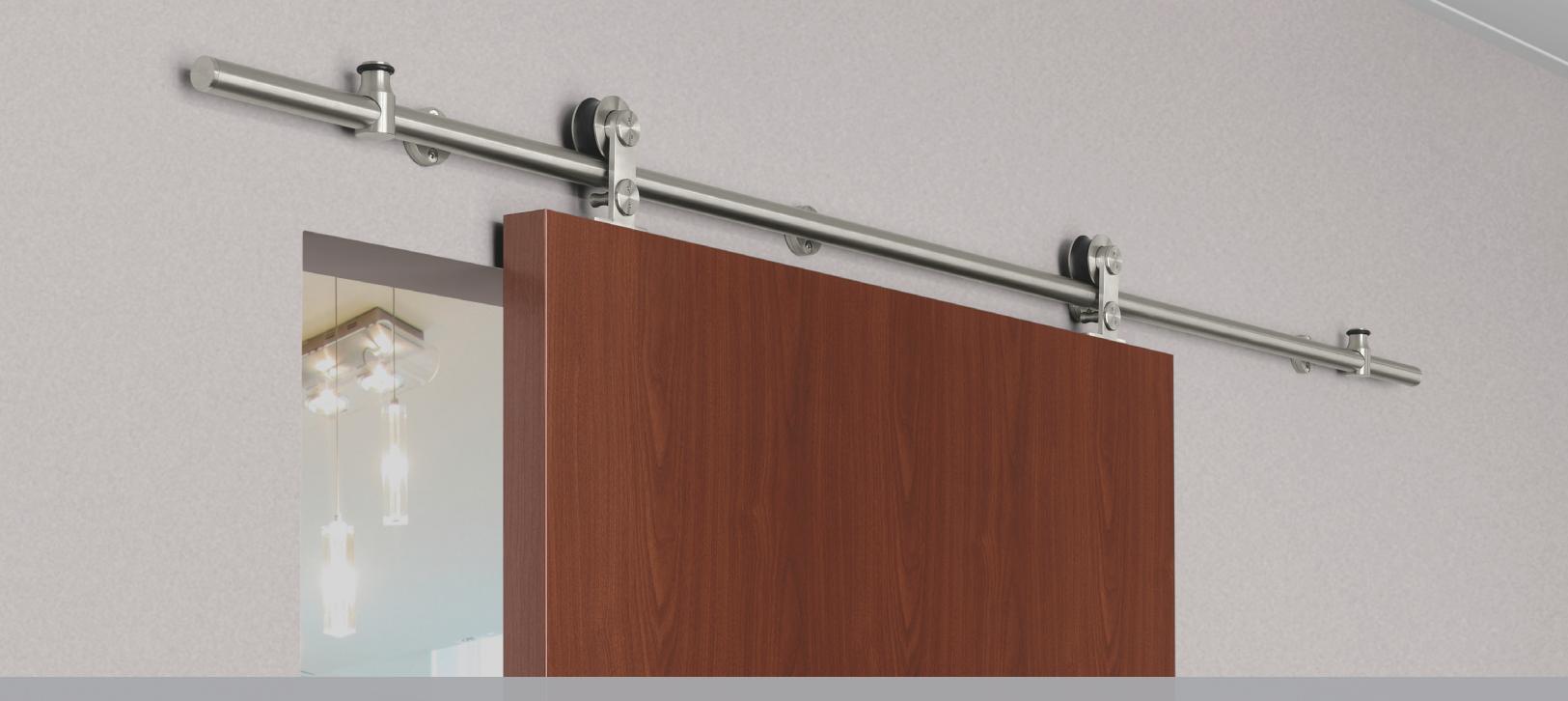

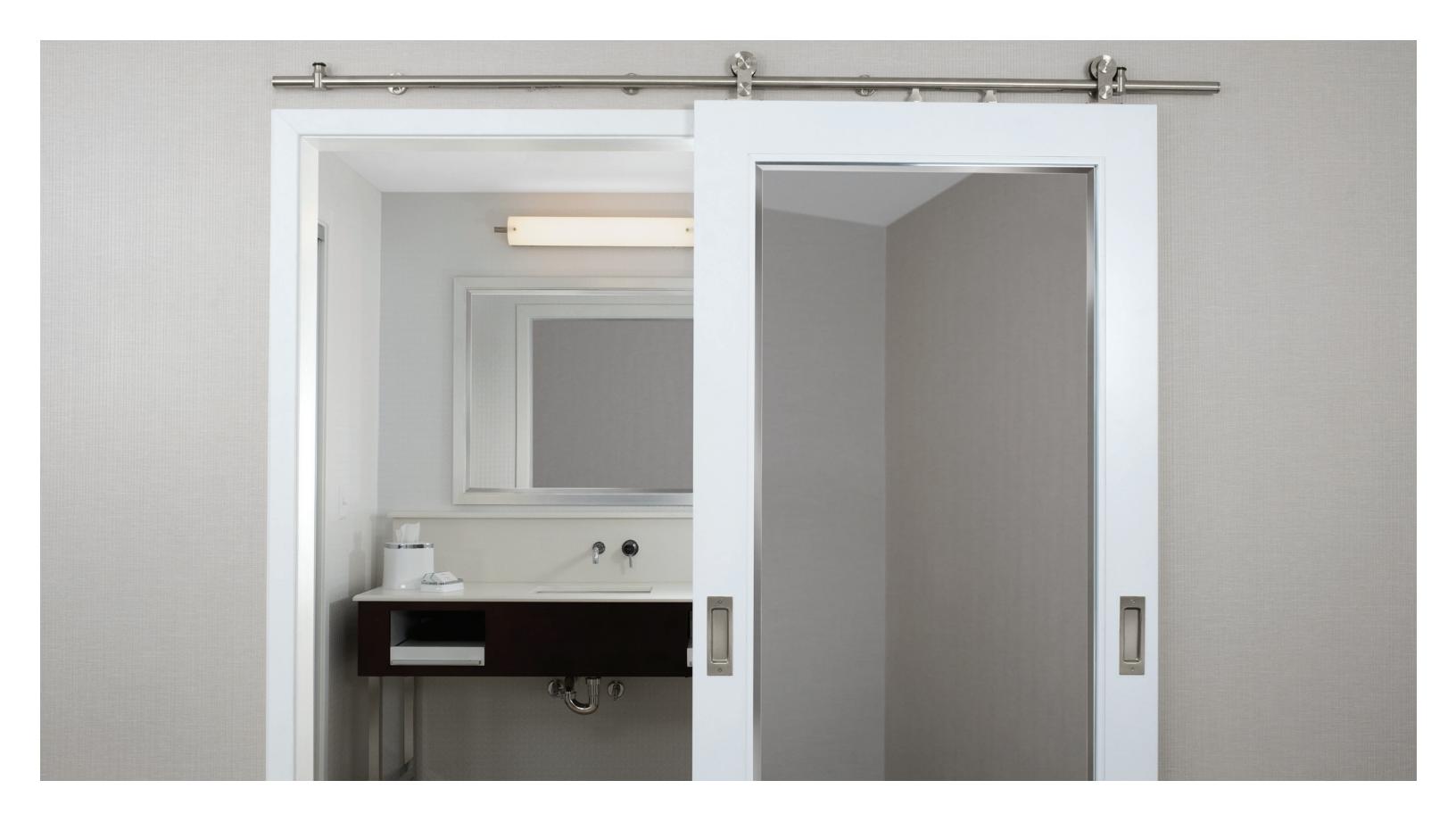

The Pemko Stainless Steel Sliding Track Hardware System features a stylish and modern design for hanging sliding glass or wood doors. It is a perfect solution where space is at a premium and aesthetics are important such as offices, hotel rooms and multifamily units.

The Stainless Steel Sliding Track Hardware System is available with ten styles of door hangers, three finishes, and various stops to complement any décor.

The system suites beautifully with products from other ASSA ABLOY product lines including Rockwood architectural door pulls.

All mounting and installation hardware is conveniently packaged as kits in two standard track lengths. The various stops are offered as part of the original installation package as well as retrofit packages.

FEATURES	BENEFITS
Stainless Steel hangers glide along on nylon coated wheels	Smooth and quiet operation makes it appropriate for shared spaces
For wood or glass doors up to 240 lbs.	Durable system designed for a range of doors
Each hanger is equipped with an anti-rise pin	Ensures the door cannot be lifted off the track
Ten styles of door hangers that suite with Rockwood door pulls	Complements modern decor and open interiors
Meets performance requirements of ANSI/BHMA 156.14	Tested to meet strict performance standards

p r o d u c t o v e r v i e w & t e c h n i c a l s p e c i f i c a t i o n s :

CONFIGURATIONS:

• Single
• Bi-parting*

INSTALLATIONS:

- Side Wall Mount

MATERIALS:

• 304 Stainless Steel Track and Hangers
• Nylon coated rollers

SYSTEM INCLUDES:

• Stainless Steel Track (6'6" or 8'2") with End Caps**
• 2 Door Hangers
• Wall Brackets
• 1 Door Bottom Guide
• 2 Track Stops (see options for alternative stops)
• Mounting and Installation Hardware

FINISH OPTIONS:

• Brushed Stainless Steel, Dark Bronze, Stainless Steel or Polished Stainless Steel
• Pemko SFT-W60 and SFT-W100 (soft close options) are available in Brushed Stainless Steel only

PERFORMANCE STANDARDS:

- Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles in operation

DOOR SPECIFICATIONS:

• Maximum Door Weight: 176 lbs. to 240 lbs. depending on hanger style.
• Wood Doors 1 3/4" thick
• Door Bottom 3/8" undercut
• Can include lites or tinted glass
• Glass Doors 3/8" to 1/2" thick

OPTIONS:

• Fixed stop. (Available for Pemko W70 or G70)
• Cushion stop (Available for Pemko W60 or W100)
• Soft Close (Available for Pemko W60 or W100)

^* Custom kits and bi-parting conditions not available for Pemko SFT-W60 and SFT-W100

^** Custom track lengths are available.

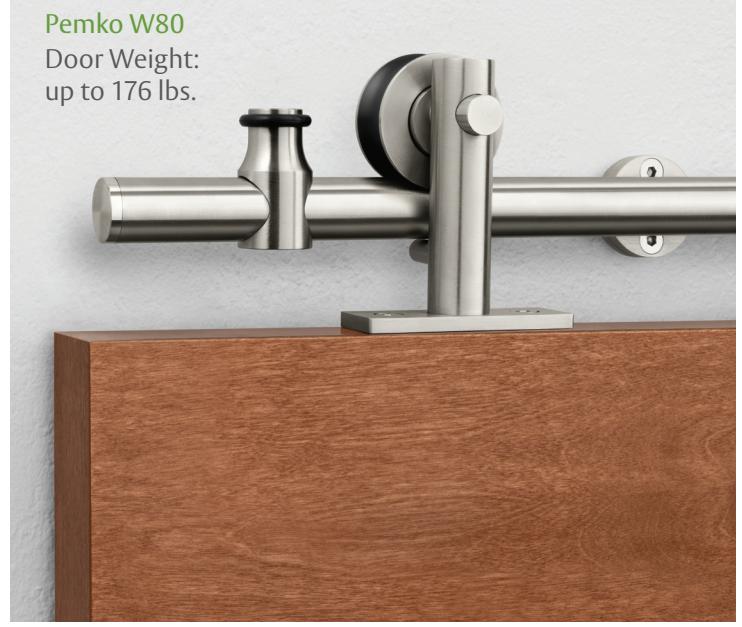

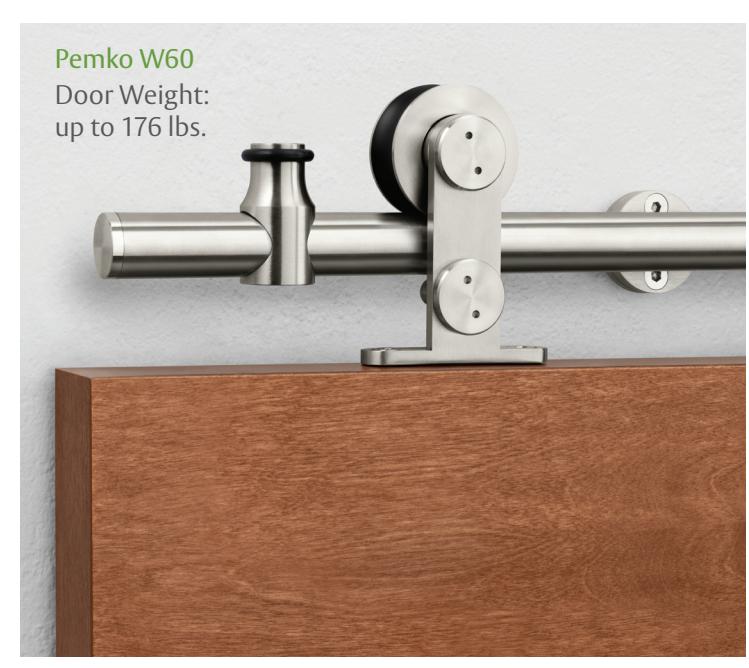

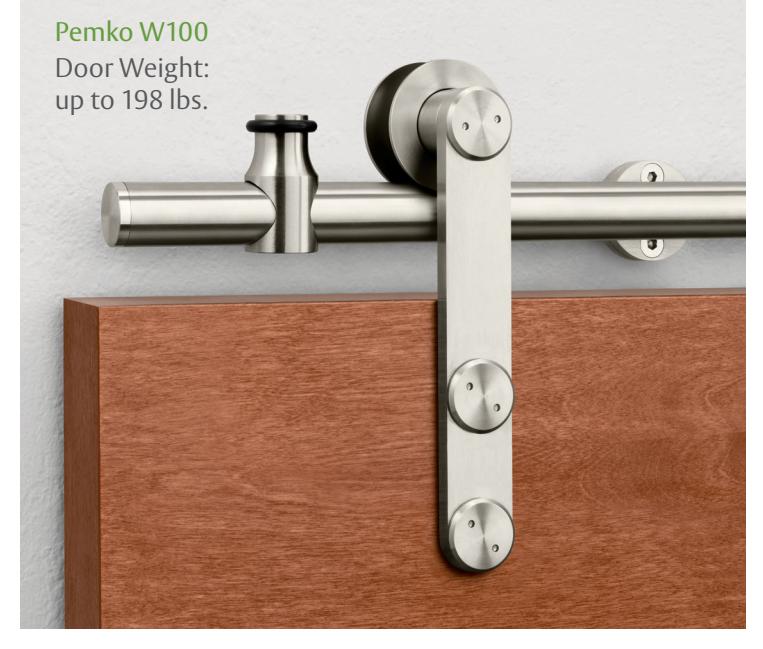

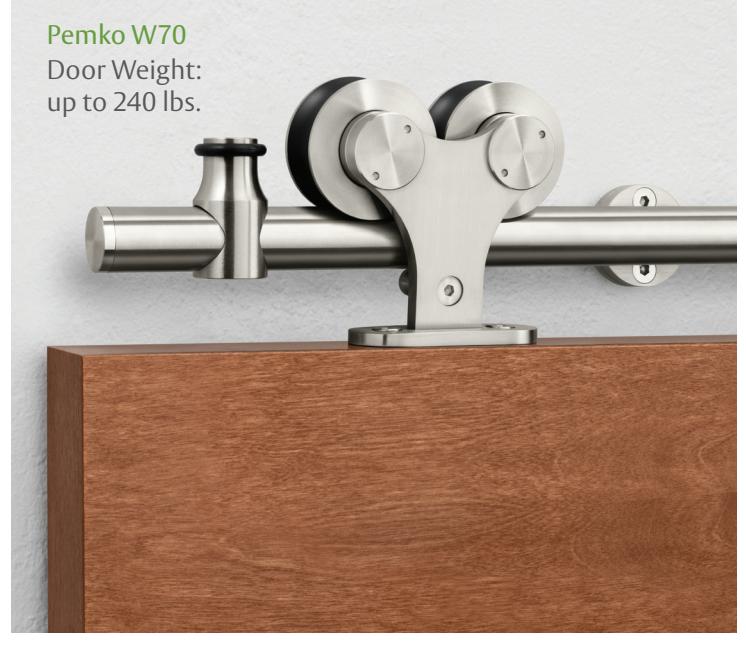

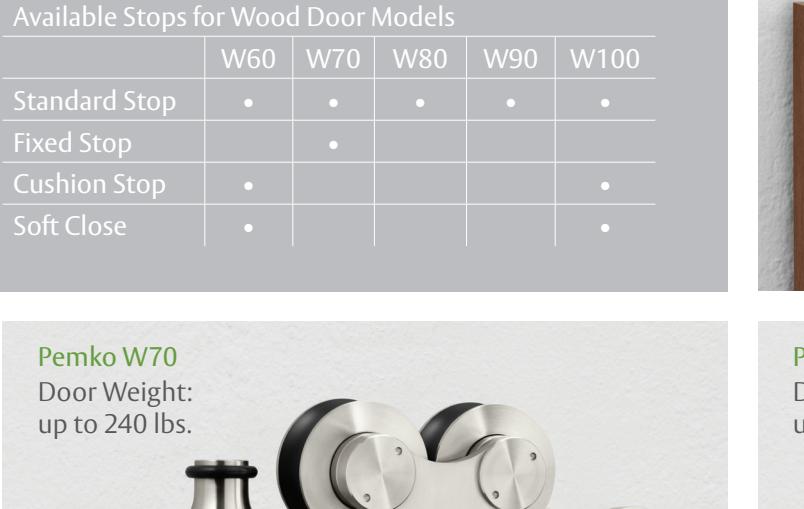

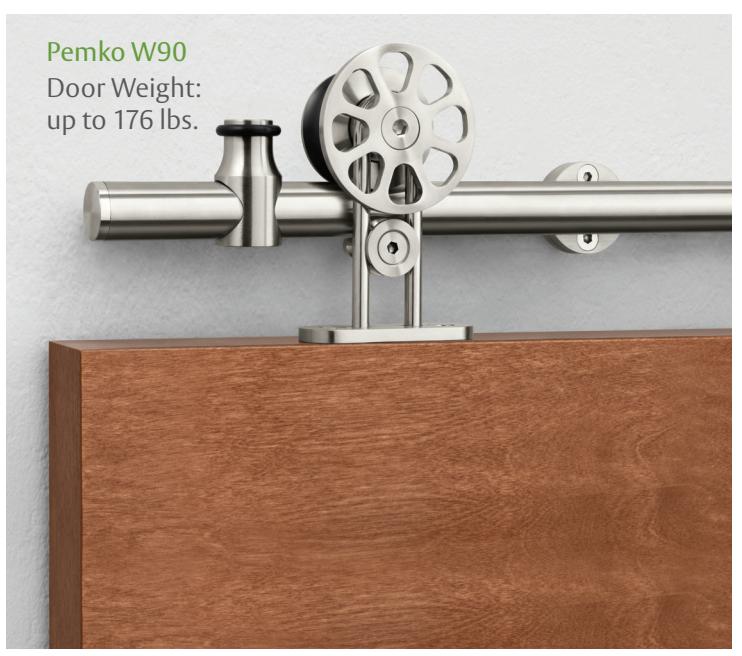

Wood Door Models

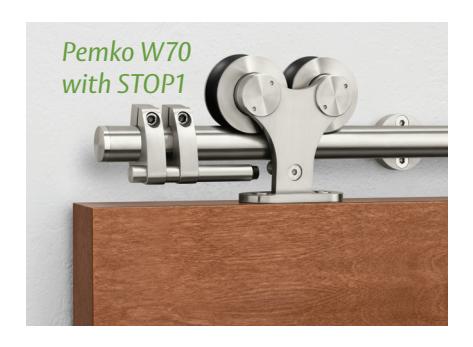

Order as: STOP1

FIXED STOP – The Fixed Stop offers a distinct and appealing alternative to the standard door bumper. It is a perfect solution for those who desire aesthetic variation without the need for the higher level of performance found with the Cushion Stop or Soft Close.

The Fixed Stop is sold as single units (eaches). It is available in select finishes for the Pemko W70 and G70.

Order as:

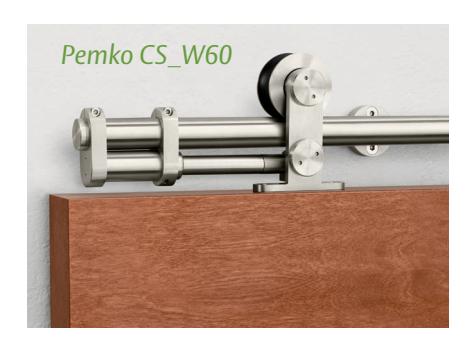

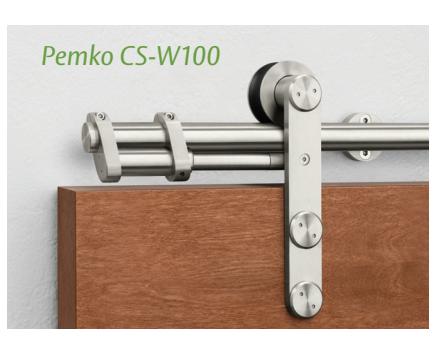

Pemko W60 System with Cushion Stop: p/n CS-W60 Pemko W100 System with Cushion Stop: p/n CS-W100 Retrofit kit for existing Pemko W60 Systems: CS-001 Retrofit kit for existing Pemko W100 Systems: CS-003

CUSHION STOP – The Cushion Stop absorbs impact to prevent racking of the system and minimize bounce back. It also aids in holding the door open/closed to prevent door creeping. This product meets performance requirements of ANSI/BHMA 156.14

The Cushion Stop is sold as a pair and available in Brushed Stainless Steel, Dark Bronze Stainless Steel or Polished Stainless Steel for the Pemko W60 or W100 systems. It is available on new installations or as a retrofit kit.

Order as:

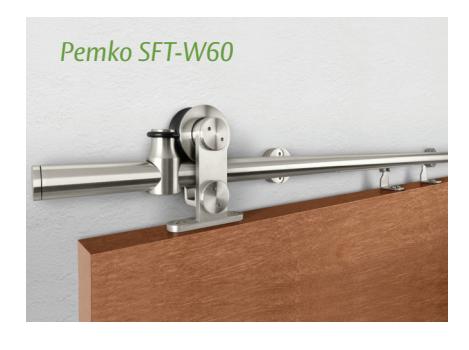

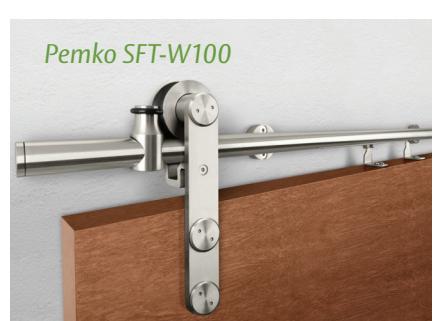

Pemko W60 System with Soft Close (new or retrofit): SFT-W60 Pemko W100 System with Soft Close (new only): SFT-W100 Order arrives as a complete kit integrated with the track for new construction and retrofit installations.

SOFT CLOSE – The Soft Close device gently brings the door to a smooth and controlled stop to prevent the door from bouncing or slamming shut. It is also the premiere solution to minimize pinch points, reduce noise, and extend the lifespan of doors and hardware for high use environments.

The Soft Close is integrated with the track and available for the Pemko W60 or W100 systems.

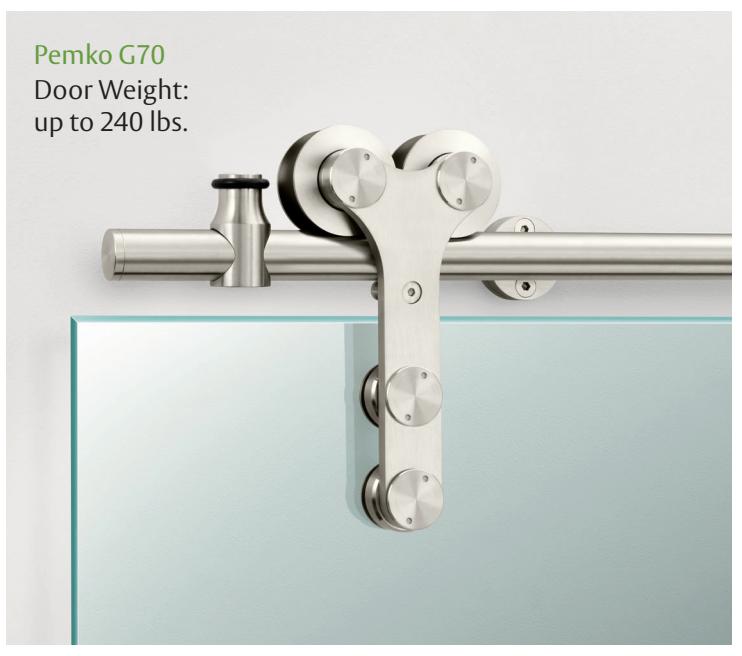

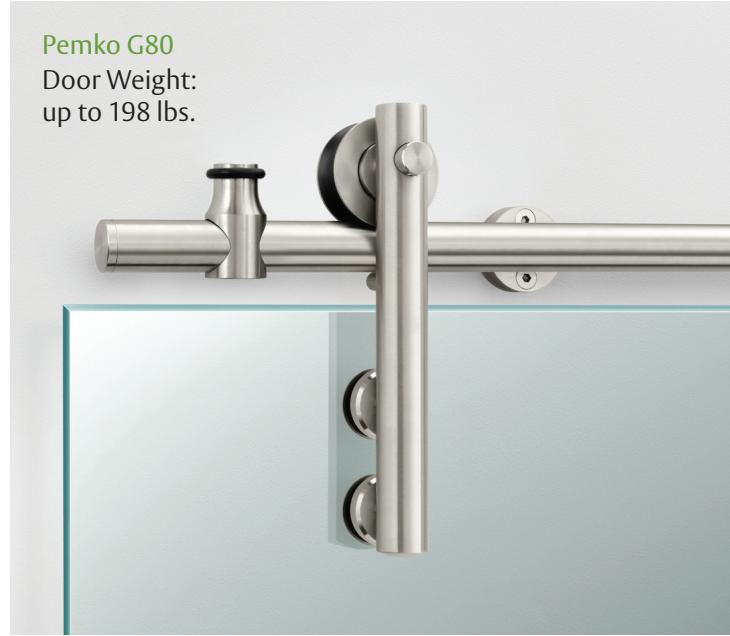

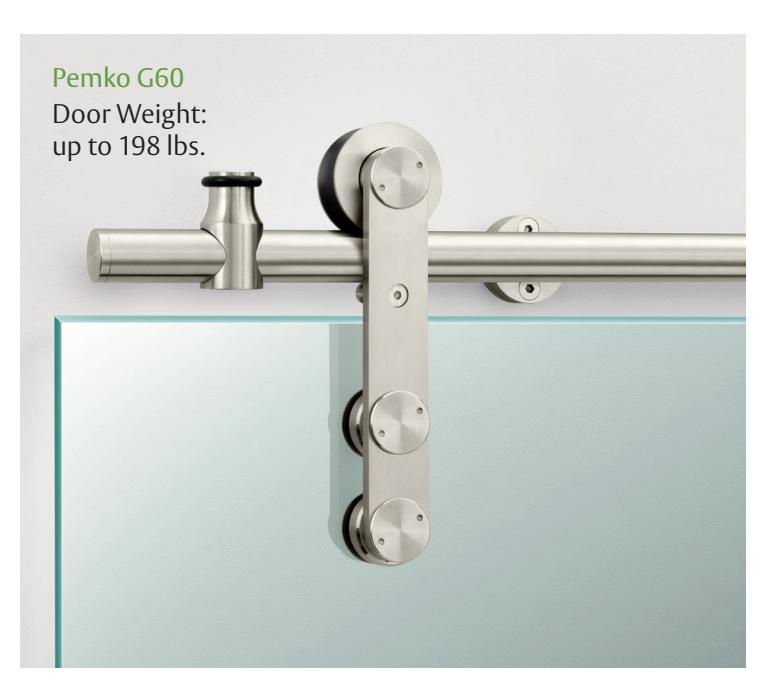

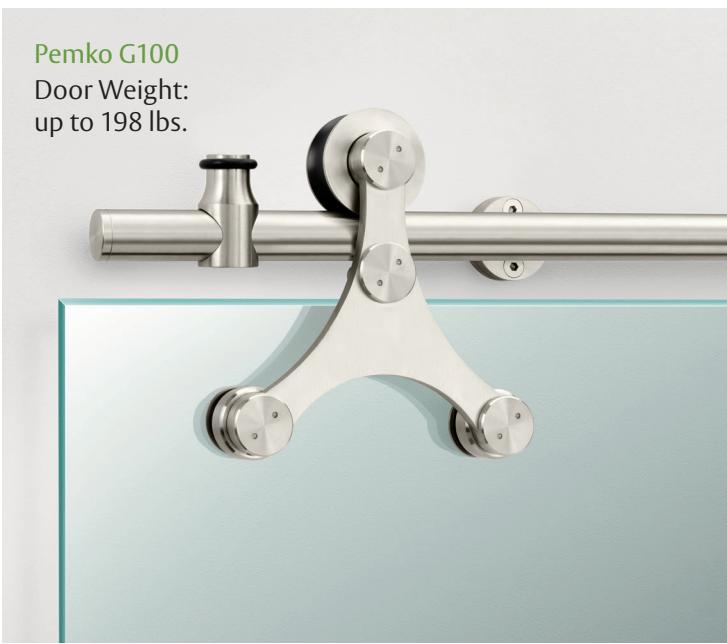

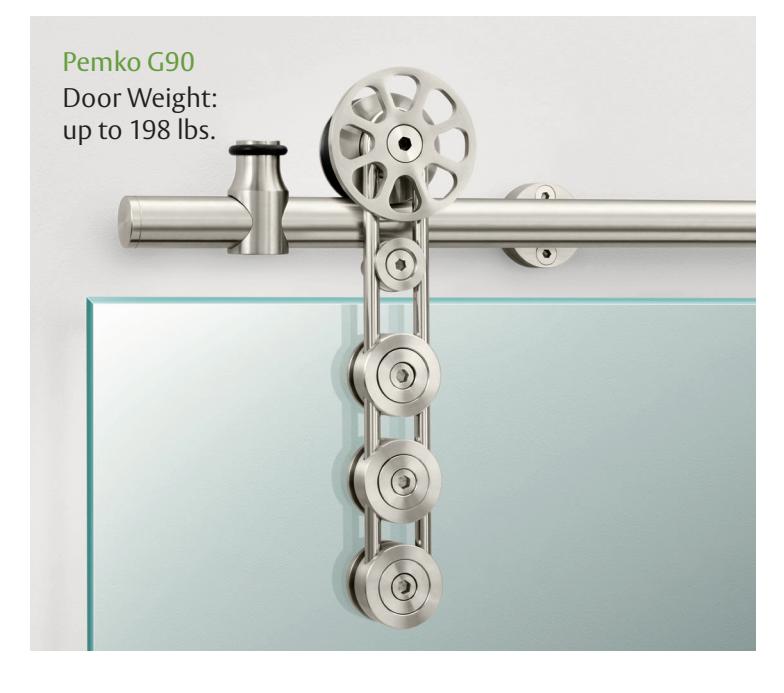

Glass Door Models

	G60	G70	G80	G90	G100
Standard Stop	•	•	•	•	•
Fixed Stop		•
Cushion Stop
Soft Close

With ASSA ABLOY Architectural Door Accessories, it is easy to select coordinating hardware to complete your installation. Add visual appeal with Rockwood decorative door pulls or functionality with the Pemko privacy barn door lock. Visit www.assaabloydooraccessories.us for more options and solutions.

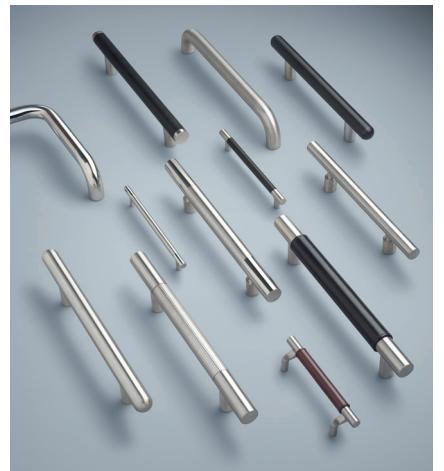

ROCKWOOD DECORATIVE DOOR PULLS
