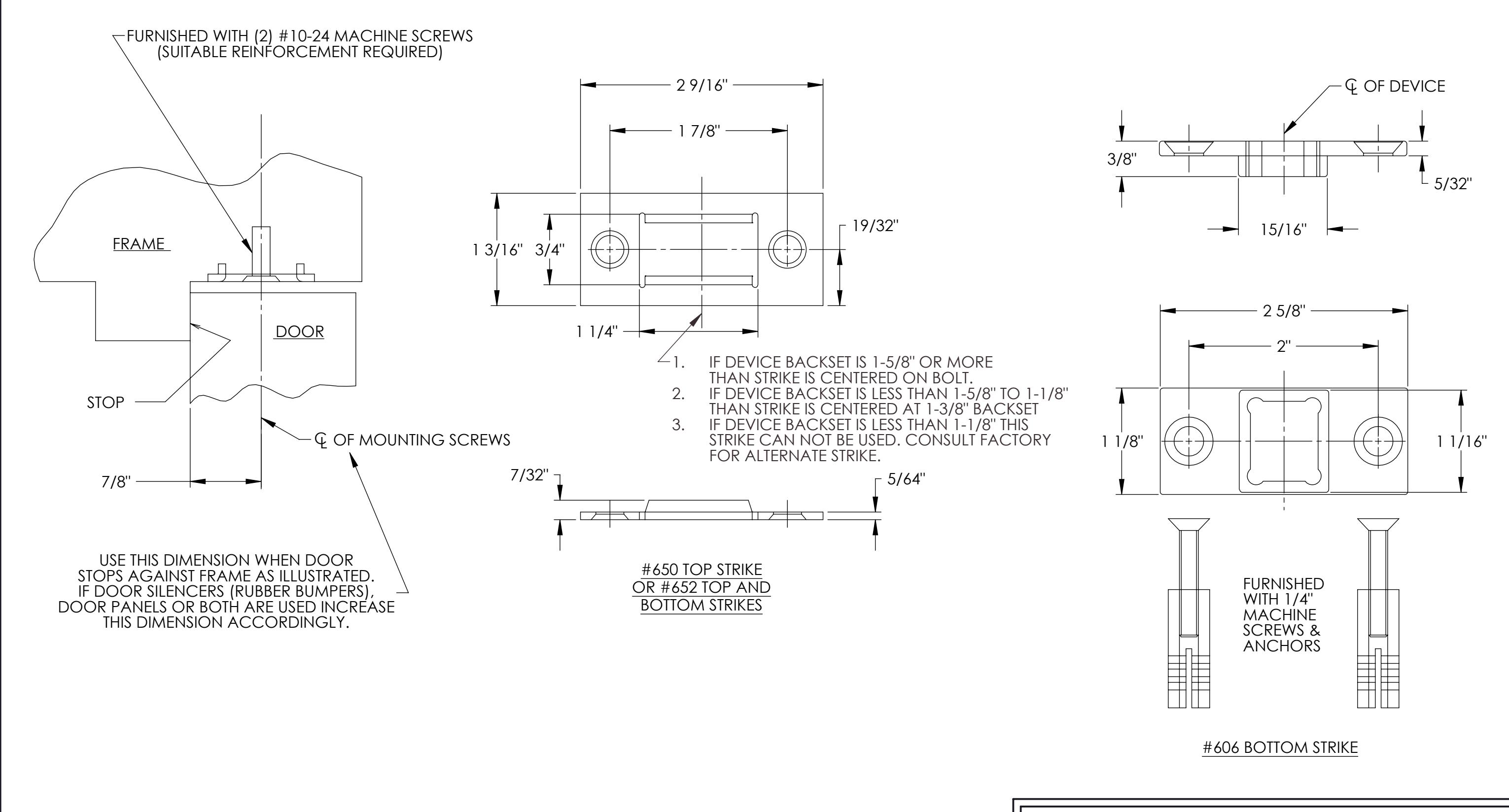

Template for strikes for concealed vertical rod exits

NOTES:

• I. OUTSIDE DIMENSIONS ARE MAX PART SIZE.
• 2. STANDARD BACKSET AND MAXIMUM BACKSET ARE 2-3/4"
• 3. MINIMUM BACKSET DEPENDS ON DEVICE AND APPLICATION, SEE DEVICE TEMPLATE FOR MINIMUM BACKSET

SARGENT *Manufacturing Company 100 Sargent Drive New Haven, CT 06511

DOOR MANUFACTURER TEMPLATE: STRIKES FOR CONCEALED VERTICAL ROD EXIT DEVICES AND LOCKS

release date JUNE 8, 2009

template no. 4449 G
